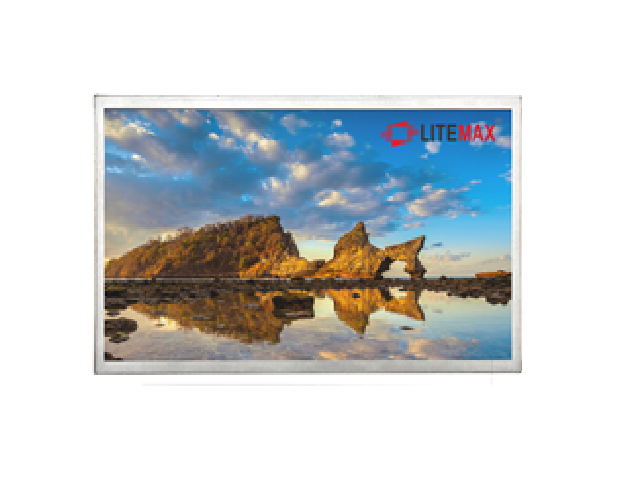

Digital Signage Display
1853-K
18.5” TFT LCD, 500nits LED Backlight, 1920 x 1080
- Brightness 500nits
- Resolutions: 1920 x 1080
- LED Backlight
- Aspect ratio of 16:9
- Low power consumption
- BL MTBF: 30,000 hours
- Projected capacitive touch for ULO1853-KHT
| Model Name | ULF1853-K | ULH1853-K | ULO1853-K | ULO1853-KHT |
| Description | 18.5” TFT LCD, 500 nits LED Backlight, 1920 x 1080 | 18.5” TFT LCD, 500 nits LED Backlight, 1920 x 1080, Projected Capacitive Touch | ||
| size | 18.5” | |||
| Display area (mm) | 408.96(H) x 230.04(V) | 409(H) x 230(V) | ||
| Brightness | 500 cd/m² | |||
| Resolution | 1920x1080 | |||
| Aspect ratio | 16:9 | |||
| Contrast ratio | 1100 : 1 | 900 : 1 | ||
| Pixel pitch (mm) | 0.213(H) x 0.213(V) | |||
| Pixel per inch (PPI) | 119 | |||
| Viewing angle | 178°(H),178°(V) | |||
| Color saturation (NTSC) | 84% | 92% | ||
| Display colors | 16.7M | |||
| Response time (Typical) | 14ms | |||
| Panel Interface | LVDS | |||
| Input Interface | HDMI,DP | |||
| Touch Interface | USB | |||
| Input power | DC 12V | |||
| Power consumption | 14W | 17W | 23W | |
| Dimensions (mm) | 430.37(W) x 254.6(H) x 11.2(D) | 433.0(W) x 257.2(H) x 44.5(D) | 449(W) x 272.5(H) x 47.7(D) | |
| Bezel size (U/B/L/R) | 12.28/12.28/10.71/10.71 mm | 13.6/13.6/12/12 mm | 22/20.5/20/20 mm | |
| Weight (Net) | 1.9Kg | 2.2Kg | 2.75Kg | |
| Mounting | 100x100mm | |||
| OSD key | 4 Keys (Power Switch, Menu, +, -) | |||
| OSD control | Brightness, Color, Contrast, Auto Turing, H/V Position…etc | |||
| Operating temperature | 0 ˚C ~ 50 ˚C | |||
| Storage temperature | -20°C ~ 60°C | |||
