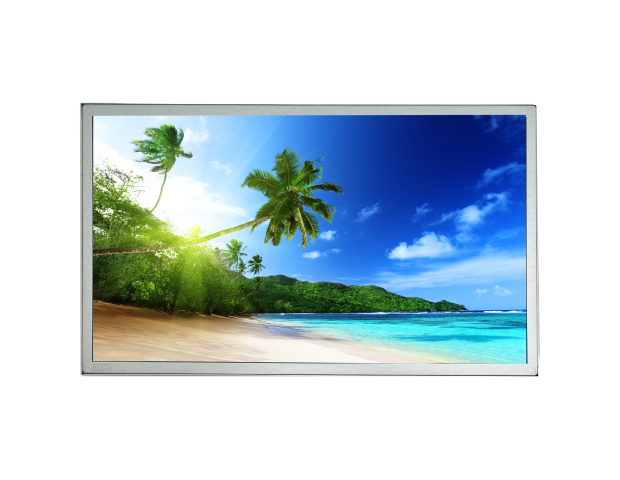

Digital Signage Display
2383-K
23.8” TFT LCD, 500nits LED Backlight, 1920x1080
- Brightness 500nits
- Resolutions: 1920 x 1080
- LED Backlight
- Aspect ratio of 16:9
- Low power consumption
- BL MTBF: 30,000 hours
- Projected capacitive touch for ULO2383-KHT
| Model Name | ULF2383-K | ULH2383-K | ULO2383-K | ULO2383-KHT |
| Description | 23.8” TFT LCD, 500 nits LED Backlight, 1920 x 1080 | 23.8” TFT LCD, 500 nits LED Backlight, 1920 x 1080, Projected Capacitive Touch | ||
| size | 23.8” | |||
| Display area (mm) | 527.04(H) x 296.46(V) | 527(H) x 296.5(V) | ||
| Brightness | 500 cd/m² | |||
| Resolution | 1920x1080 | |||
| Aspect ratio | 16:9 | |||
| Contrast ratio | 900 : 1 | 1000 : 1 | ||
| Pixel pitch (mm) | 0.2745(H) x 0.2745(V) | |||
| Pixel per inch (PPI) | 92 | |||
| Viewing angle | 178°(H),178°(V) | |||
| Color saturation (NTSC) | 84% | |||
| Display colors | 16.7M | |||
| Response time (Typical) | 14ms | |||
| Panel Interface | LVDS | |||
| Input Interface | HDMI,DP | |||
| Touch Interface | USB | |||
| Input power | DC 12V | |||
| Power consumption | 18W | 21W | ||
| Dimensions (mm) | 543.08(W) x 316.72(H) x 10.2(D) | 545.7(W) x 319.3(H) x 44.8(D) | 552.7(W) x 325(H) x 45.4(D) | |
| Bezel size (U/B/L/R) | 10.46/9.8/8.04/8.0 mm | 11.8/11.1/9.3/9.3 mm | 14.3/14.3/12.8/12.8 mm | |
| Weight (Net) | 2.0Kg | 4.1Kg | 4.7Kg | |
| Mounting | 100x100mm | |||
| OSD key | 4 Keys (Power Switch, Menu, +, -) | |||
| OSD control | Brightness, Color, Contrast, Auto Turing, H/V Position…etc | |||
| Operating temperature | 0 ˚C ~ 50 ˚C | |||
| Storage temperature | -20°C ~ 60°C | |||
