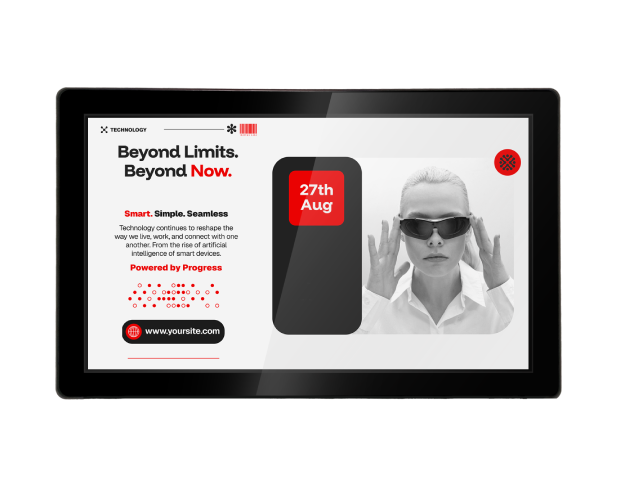

18.5" TFT LCD with USB-C
IPPD-1858-ADB0
18.5” TFT LCD, LED Backlight 1600nits, FHD(1920x1080)
- High Brightness 1600 nits
- Sunlight Readable
- Wide Viewing Angle of 176°(H), 176°(V)
- Wide Temperature (-20°C~70°C)
- With PCAP touch, OCA bonding
- Low Power Consumption
- BL MTBF: 100,000 hours
| Model name | IPPD-1858-ADB0 | |||
| Description | 18.5",1600nits,1920x1080,T2070, PCAP(85%), LID18C, OCA, Front IP44 ,AEXP-ADB0-2556, 1HDMI/1DP/1USB Type-C/1USBType-A/1Audio, DC 12V | |||
| Size | 18.5” | |||
| Display area (mm) | 408.9(H) x 230(V) | |||
| Brightness | 1600 cd/m² | |||
| Resolution | 1920x1080 | |||
| Aspect ratio | 16 : 9 | |||
| Contrast ratio | 1120: 1 | |||
| Pixel pitch (mm) | 0.213(H) x 0.213(V) | |||
| Pixel per inch (PPI) | 119 | |||
| Viewing angle | 176°(H),176°(V) | |||
| Color saturation (NTSC) | 85% | |||
| Display colors | 16.7M | |||
| Response time (Typical) | 25ms | |||
| Panel interface | LVDS | |||
| Video interface | HDMI, DP, USB Type-C | |||
| Touch interface | USB | |||
| Input power | DC12V | |||
| Power consumption | 40W (Reference) | |||
| OSD key | 4 Keys (Power Switch, Menu, +, -) | |||
| OSD control | Brightness, Color, Contrast, Auto Tuning, H/V Position…etc | |||
| Dimensions (mm) | 461 x 281.64 x 29.8 | |||
| Weight (Net) | 3.6kg | |||
| Mounting | 75x75, 100x100 | |||
| Operating temperature | 0 ˚C ~ 60 ˚C | |||
| Storage temperature | -30 ˚C ~ 80 ˚C | |||
