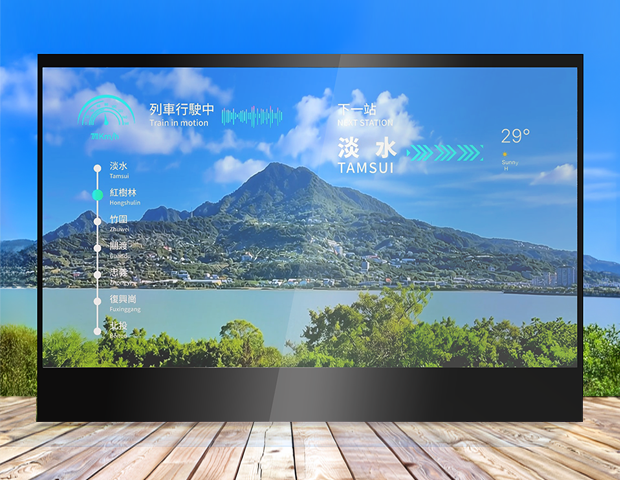

Transparent OLED Digital Signage
TPD5500-L
55" Transparent OLED Digital Signage
- Transparency OLED display
- Wide screen 16:9
- Customized Design
- Transparent Ratio 43%(typ.)
- Optical Bonding (Optional)
- M12 Connector
- DC 9~36V Power Input
- EN50155 in certificate process
| Part Number | TPD5500-L | ||
| Description | 55” Transparency OLED, 1920x1080 | ||
| Size | 55" | ||
| Display Area (mm) | 680.4(H)x1209.6(V) | ||
| Brightness | Normal 200 cd/m2 and Peak 600 cd/m2 | ||
| Resolution | 1920x1080 | ||
| Aspect Ratio | 16:9 | ||
| Contrast Ratio | 17,000: 1 | ||
| Pixel Pitch (mm) | 0.63(H) x 0.63(V) | ||
| Pixel Pre Inch (PPI) | 40 | ||
| Viewing Angle | 120°(H),120°(V) | ||
| Color Saturation (NTSC) | 87% | ||
| Display Colors | 1.07 Billion colors | ||
| Response Time (Typical) | 8ms | ||
| Panel Interface | V-by-One | ||
| Input Power | DC 24V | ||
| Power Consumption | 104W | ||
| OSD Key | 5 Keys (Power Switch, Menu, +, -,Exit) | ||
| OSD Control | Brightness, Color, Contrast, Auto Turing, H/V Position…etc. | ||
| Dimensions (mm) | 1232.1x845.7x36.3 | ||
| Bezel Size(U/B/L/R) | 122/30/10/10 mm | ||
| Weight (Net) | 21 kg | ||
| Operating Temperature | 0 ˚C ~ 45 ˚C | ||
| Storage Temperature | -20 ˚C ~ 60 ˚C | ||
