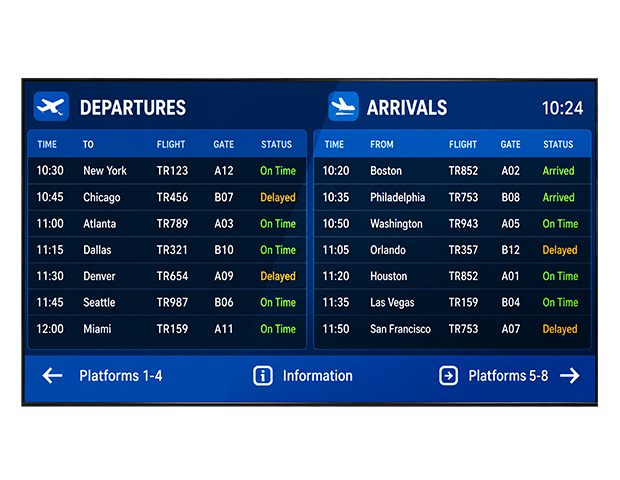

Industrial LCD Monitor
UPO1002-M
100” TFT LCD, 400nits LED Backlight, 3840 X 2160
- Brightness 400nits
- Resolutions: 3840 x 2160
- LED Backlight
- Aspect ratio of 16:9
- Low power consumption
| Model Name | UPO1002-M | ||
| Description | 100” TFT LCD, 400 nits LED Backlight, 3840 x 2160 | ||
| size | 100” | ||
| Display area (mm) | 2203.2(H) x 1239.3(V) | ||
| Brightness | 400 cd/m2 | ||
| Resolution | 3840 x 2160 | ||
| Aspect ratio | 16:9 | ||
| Contrast ratio | 5000 : 1 | ||
| Pixel pitch (mm) | 0.57375(H) x 0.57375(V) | ||
| Pixel per inch (PPI) | 44 | ||
| Viewing angle | 178°(H),178°(V) | ||
| Color saturation (NTSC) | 72% | ||
| Display colors | 1.07B | ||
| Response Time (Typical) | 8ms | ||
| Onboard Interface | HDMI x1, HDMI ARC x1, USB 3.0 x1, USB 2.0 x1, RJ45 x1, Earphone x1 | ||
| Input power | AC100~240V | ||
| Power consumption | 360W | ||
| Dimensions (mm) | 2227.4(W) x 1270.65(H) x 87(D) | ||
| Weight (Net) | 50Kg | ||
| Mounting | 800x400mm | ||
| Operating temperature | 0 ˚C ~ 40 ˚C | ||
| Storage temperature | -20°C ~ 60°C | ||
