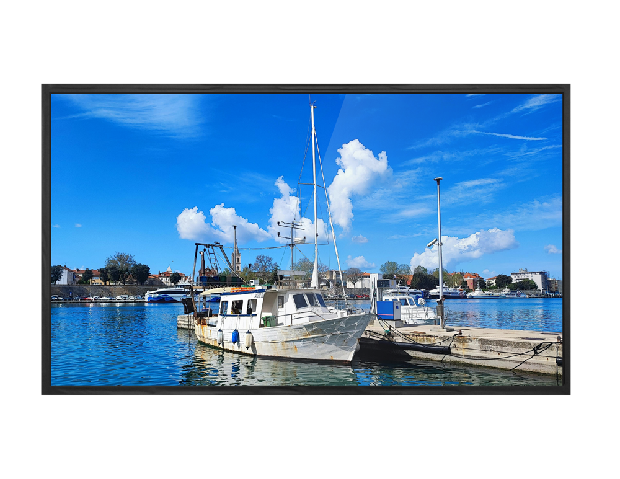

Digital Signage Display
1563-K
15.6” TFT LCD, 500nits LED Backlight, 1920 X 1080
- Brightness 500nits
- Resolutions: 1920 x 1080
- LED Backlight
- Aspect ratio of 16:9
- Low power consumption
- BL MTBF: 30,000 hours
- Projected capacitive touch (ULO1563-KHT)
| Model Name | ULF1563-K | ULH1563-K | ULO1563-K | ULO1563-KHT |
| Description | 15.6” TFT LCD, 500 nits LED Backlight, 1920 x 1080 | 15.6” TFT LCD, 500 nits LED Backlight, 1920 x 1080, Projected Capacitive Touch | ||
| Size | 15.6” | |||
| Display area (mm) | 344.16(H) x 193.59(V) | |||
| Brightness | 500 cd/m² | |||
| Resolution | 1920x1080 | |||
| Aspect ratio | 16:9 | |||
| Contrast ratio | 1100 : 1 | 1200 : 1 | ||
| Pixel pitch (mm) | 0.17925(H) x 0.17925 (V) | |||
| Pixel per inch (PPI) | 141 | |||
| Viewing angle | 170° (H), 170° (V) | |||
| Color saturation (NTSC) | 82% | |||
| Display colors | 16.7M | |||
| Response time (Typical) | 30ms | |||
| Panel Interface | eDP | |||
| Input Interface | HDMI,DP | |||
| Touch Interface | USB | |||
| Input power | DC 12V | |||
| Power consumption | 4.3W | 7.3W | ||
| Dimensions (mm) | 360.1 x 212.55 x 7.33 | 362.7 x 214.9 x 45 | 368.6 x 231.9 x 45.5 | |
| Bezel size (U/B/L/R) | 8.55/10.41/6.76/9.18 mm | 10.6/10.7/8.1/10.4 mm | 12.2/26.1/12.2/12.2 mm | |
| Weight (Net) | 1.7Kg | 2Kg | 2.5Kg | |
| Mounting | 100 x 100 | |||
| OSD key | 4 Keys (Power Switch, Menu, +, -) | |||
| OSD control | Brightness, Color, Contrast, Auto Turing, H/V Position…etc | |||
| Operating temperature | 0 ˚C ~ 50 ˚C | |||
| Storage temperature | -20°C ~ 60°C | |||
