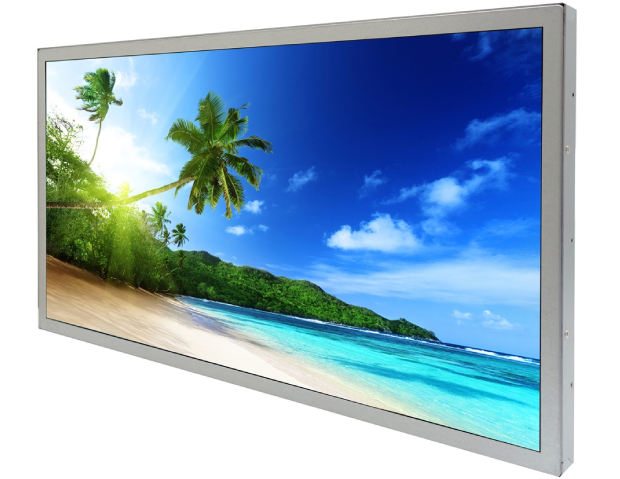

Digital Signage Display
1855-M
18.5” TFT LCD, 1000 nits LED Backlight, 1920x1080
- High Brightness 1000 nits
- Sunlight Readable
- Resolution: 1920 x 1080
- Pcap Multi Touch (ULO1855-MHT)
- Low Power Consumption
- BL MTBF: 20,000 hours
| Model Name | ULF1855-M | ULH1855-M | ULO1855-MHT |
| Description | 18.5” TFT LCD, 1000 nits LED Backlight, 1920x1080 | ||
| size | 18.5” | ||
| Display area (mm) | 408.96(H) x 230.04(V) | ||
| Brightness | 1000 cd/m² | ||
| Resolution | 1920x1080 | ||
| Aspect ratio | 16:9 | ||
| Contrast ratio | 900:1 | ||
| Pixel pitch (mm) | 0.213(H) x 0.213(V) | ||
| Pixel per inch (PPI) | 119 | ||
| Viewing angle | 178°(H),178°(V) | ||
| Color saturation (NTSC) | 83% | ||
| Display colors | 16.7M | ||
| Response time (Typical) | 14ms | ||
| Panel interface | LVDS | ||
| Input interface | VGA, DVI-D, HDMI | ||
| Touch interface | USB | ||
| Input power | DC12V | ||
| Power consumption | 24W | 27W | |
| Dimensions (mm) | 430.37 x 254.60 x 11.50 | 443.4 x 274.0 x 50.5 | |
| Bezel size (U/B/L/R) | 12.28/12.28/10.71/10.71 mm | 22.0/22.0/17.2/17.2 mm | |
| Weight (Net) | 1.5 kg | 3.73 kg | |
| Mounting | 75 x 75, 100 x 100mm | ||
| OSD key | 4 Keys (Power Switch, Menu, +, -) | ||
| OSD control | Brightness, Color, Contrast, Auto Turing, H/V Position…etc | ||
| Operating temperature | -10 ˚C ~ 60 ˚C | ||
| Storage temperature | -20 ˚C ~ 60 ˚C | ||
