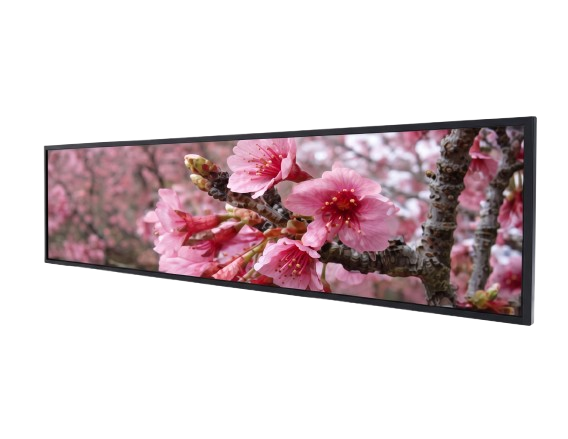

Stretch Digital Display
4300-Y
43” TFT LCD, LED Backlight 2500nits, 3840x720
- High Brightness 2500nits
- Sunlight Readable
- Aspect ratio 16:3
- LED Backlight
- LCD Blackening Defect Free (H-Tni 104 ˚C)
- Wide temperature (-20˚C ~ 60˚C)
- Low power consumption
- BL MTBF: 50,000 hours
| Model Name | SSF4300-Y | SSH4300-Y | SSD4300-Y |
| Description | 43” TFT LCD, 2500nits LED Backlight, 3840x720 | ||
| size | 43” | ||
| Display area (mm) | 1073.78(H) x 201.33(V) | ||
| Brightness | 2500 cd/m² | ||
| Resolution | 3840x720 | ||
| Aspect ratio | 16 : 3 | ||
| Contrast ratio | 5300 : 1 | ||
| Pixel pitch (mm) | 0.2796(H) x 0.2796 (V) | ||
| Pixel per inch (PPI) | 91 | ||
| Viewing angle | 178° (H), 178° (V) | ||
| Color saturation (NTSC) | 83% | ||
| Display colors | 1.07G | ||
| Response time (Typical) | 12ms | ||
| Panel Interface | V-by-One | ||
| Input Interface | HDMI,DP | ||
| Input power | DC 24V | ||
| Power consumption | 119W | 122W | |
| Dimensions (mm) | 1112.3x 228.5x 25.5 | 1114.9x 231.1x 70.8 | |
| Bezel size (U/B/L/R) | 13.59/13.59/19.26/19.26 mm | 14.89/14.88/20.56/20.56 mm | |
| Weight (Net) | 5.0 kg | 9.5 kg | |
| Mounting | 300x75 | ||
| OSD key | 5 Keys (Power Switch, Menu, +, Exit, -) | ||
| OSD control | Brightness, Color, Contrast, Auto Turing, H/V Position…etc | ||
| Operating temperature | -20 ˚C ~ 60 ˚C | ||
| Storage temperature | -20°C ~ 60°C | ||
