Transportation Panel PCs

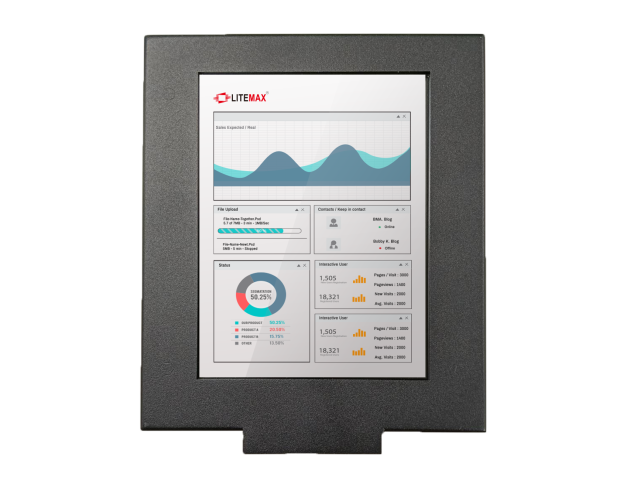

IPPS-0625-APL9
6.5'', 1000nits,640x480,T3080,LID on LCM, 3mm AG glass, Intel Atom E3950, 4GB DDR3L W.T, 128GB mSATA SSD W.T,1USB/1LAN/1Power w/ M12 connector, Full IP54, DC 24V input
- High Brightness 1000 nits
- Sunlight Readable
- BL MTBF: 100,000 hours
- CPU Intel Atom E3950
- 4GB DDR3L W.T, 128GB mSATA SSD W.T
- Wide viewing angle of 178°(H),178°(V)
- 3mm AG glass
- Full IP54 with M12 connector
| Model Name | IPPS-0625-APL9 | ||
| Description | 6.5'', 1000nits,,640x480,T3080,LID on LCM, 3mm AG glass, Intel Atom E3950, 4GB DDR3L W.T, 128GB mSATA SSD W.T,1USB/1LAN/1Power w/ M12 connector, Full IP54, DC 24V input | ||
| Screen Size | 6.5" | ||
| Display Area (mm) | 132.48(H) x 99.36(V) | ||
| Brightness | 1000 cd/m2 | ||
| Resolution | 640x480 | ||
| Aspect Ratio | 4 : 3 | ||
| Contrast Ratio | 1000 : 1 | ||
| Pixel Pitch (mm) | 0.207(H) x 0.207(V) | ||
| Viewing Angle | 178°(H),178°(V) | ||
| Color Saturation (NTSC) | 59% | ||
| Display Colors | 16.7M | ||
| Panel Interface | LVDS | ||
| Cover glass | 3mm AG glass | ||
| CPU | Intel@ Atom E3950 | ||
| RAM | 4GB DDR3L wide temperature | ||
| Storage | 128GB mSATA SSD wide temperature | ||
| Input interface | 2xLAN, 4pin D-code(M12 connector) 1xUSB, 5pin A-code(M12 connector) 1xPower, 4pin A-code(M12 connector) |
||
| Input Power | DC 24V | ||
| Power Consumption | 12.24W | ||
| Dimensions (mm) | 174.1 x 150.14 x 60.36 | ||
| Operating Temperature | -25℃~55℃ | ||
| Storage Temperature | -30℃~80℃ | ||
