Transportation Panel PCs

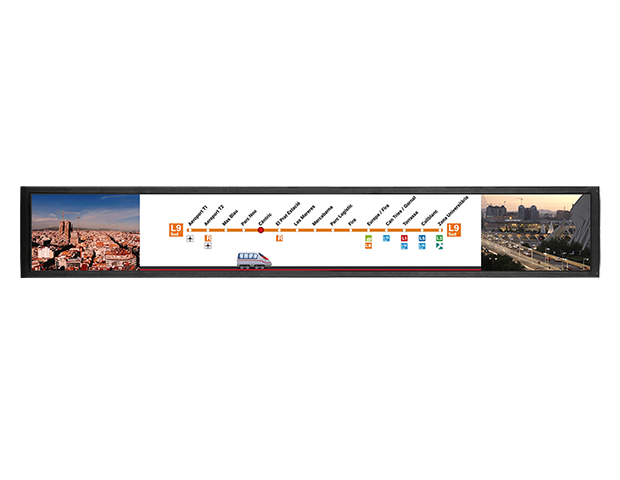

ITRP-4805-APL8
48” Resizing LCD, 1000 nits LED backlight, 1920x248
- Ultra-Wide Screen (16 : 2)
- EN50155
- High Brightness 1000 nits
- Sunlight Readable
- LED Backlight
- BL MTBF: 100,000 hours
- Intel@ E3940 Inside,8GB RAM，256GB mSATA
- 3mm tempered glass
- Fanless
- DIP Switch
| Model Name | ITRP-4805-APL8-ZG01-2001 | ||
| Description | 48" Resizing LCD, 1000 nits LED backlight, 1920x248 | ||
| Screen Size | 48" | ||
| Display Area (mm) | 1209.6(H) x 156.24(V) | ||
| Brightness | 1000 cd/m2 | ||
| Resolution | 1920 x 248 | ||
| Aspect Ratio | 16 : 2 | ||
| Contrast Ratio | 3000 : 1 | ||
| Viewing Angle | 178°(H),178°(V) | ||
| Input Interface | 1xHDMI in, 2xUSB2.0, 2xLAN(M12), 1xPWR | ||
| CPU | Intel Atom® E3940 | ||
| Storage | 256GB mSATA | ||
| Input Power | DC 110V input | ||
| Glass | 3mm Tempered Glass | ||
| Power Consumption | 70W | ||
| IP Level | IP20 | ||
| Dimensions (mm) | 1250 x 190 x 70.34 (w/o Bracket) | ||
| Weight (Net) | 13.9 kg (w/o Bracket) | ||
| Operating Temperature | -25 ˚C ~ 55 ˚C (Panel 0 ~ 50 DegC) | ||
| Storage Temperature | -20 ˚C ~ 70 ˚C | ||
| Certification | EN50155 | ||
