3.5" Single Board Computers

AECX-MTL0

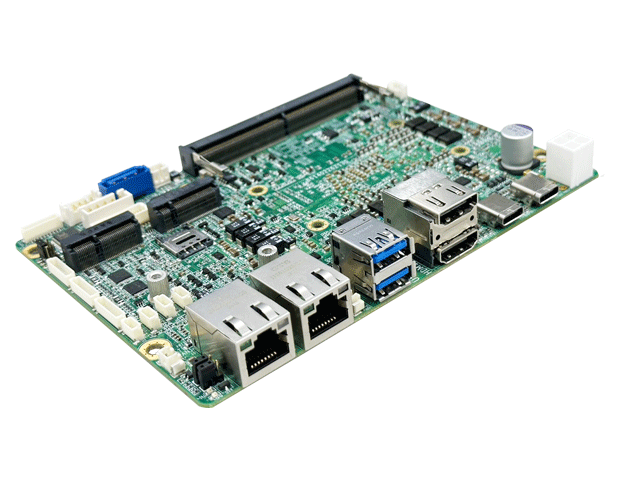

Intel® Core™ Ultra 7 / Ultra 5 Series SoC based 3.5" Embedded Board
with 2 HDMI / 2 USB-C (with DP) / LVDS, SATA III, 2 COM, 2 UART, 8 USB,
2 LAN.
  • Intel® Meteor Lake -U/H & Arrow Lake -U/H Core™ Ultra series
    SoC on board
  • One 262-pin SO-DIMM up to 48GB DDR5 6400MT/s SDRAM
  • Multi-Display : 2 HDMI / LVDS / 2 USB-C (DP interface)
  • Two Intel® 2.5 Gigabit Ethernet ports
  • 1 M.2 B+M-key 3042 (WWAN w/ nano-SIM) / 2242 (SSD), 1 M.2 E-Key
    2230 (WiFi/BT), 1 M.2 M-key 2280 (NVMe) expansion slots
  • 1 SATA III, 2 USB 3.2 and 2 USB-C, 4 USB 2.0 ports
  • Supports 4K/2K Resolution Display
  • DC-IN 12V ~ 36V
