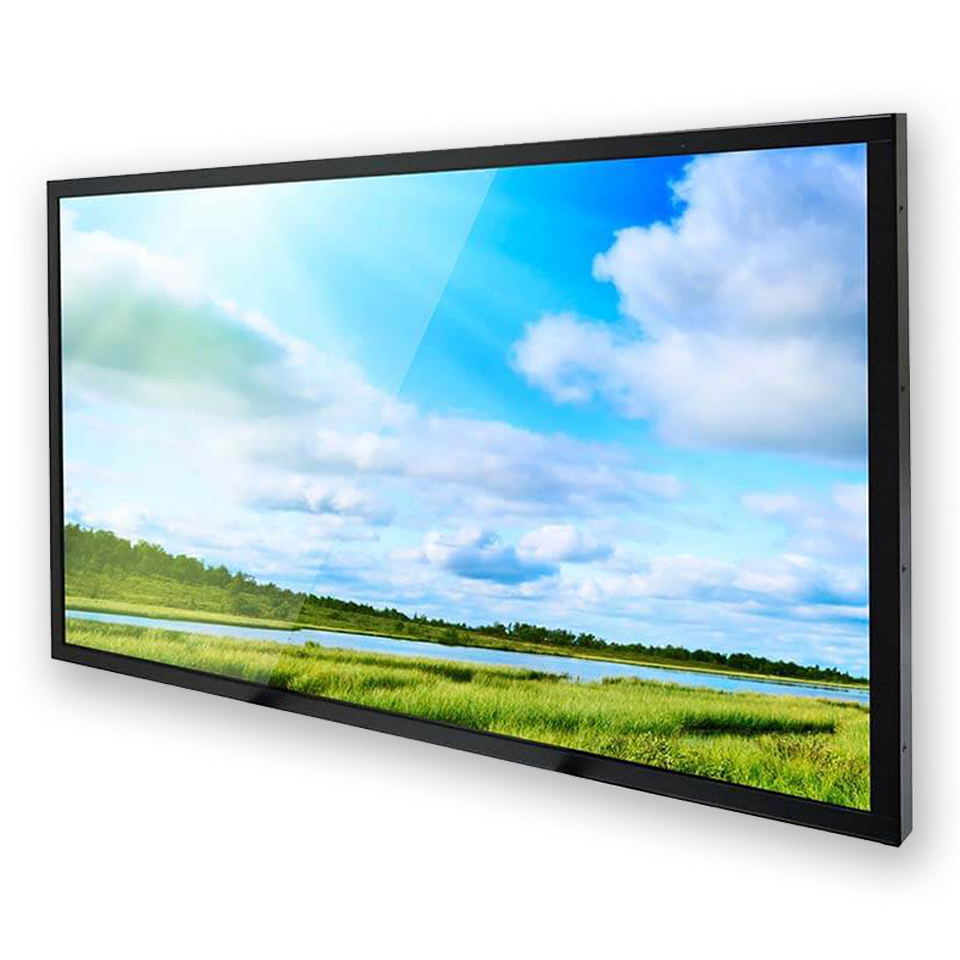

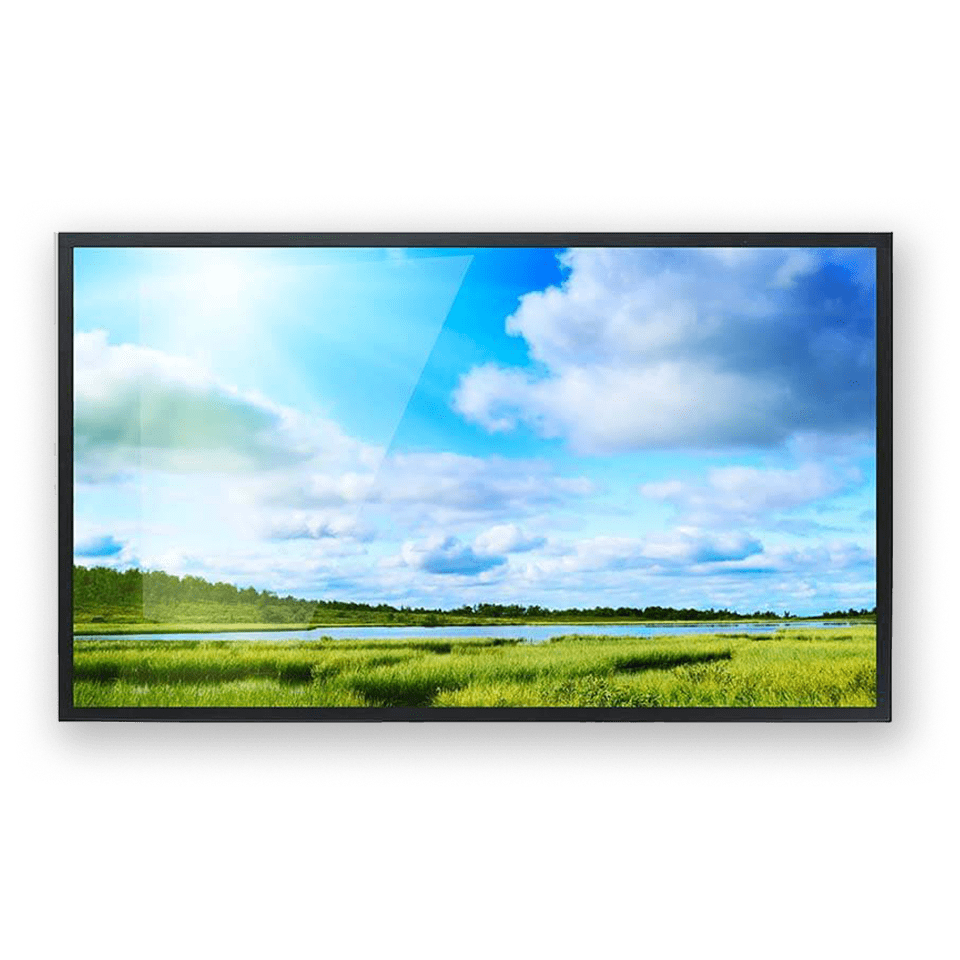

Intel® SDM Ready Display

DLS3205

32” TFT LCD,800nits,MaxRGB UHD(3840x2160) SDM Solutions
  • High Brightness 800 nits
  • Sunlight Readable
  • LED Backlight
  • MaxRGB (NTSC 97%)
  • Low Power Consumption
  • High Color Saturation
  • Support Intel®SDM-S/SDM-L
  • BL MTBF: 100,000 hours

主な特長

  • MTBF 100K

  • MaxRGB

  • Low Power Consumption

  • AI

Model name DLS3205
Description 32” TFT LCD,800nits,MaxRGB UHD(3840x2160) SDM Solutions
Size 32”
Display Area (mm) 698.4(H) x 392.85(V)
Brightness 800 cd/m²
Resolution 3840x2160
Aspect Ratio 16 : 9
Contrast Ratio 4500 : 1
Pixel Pitch (mm) 0.181(H) x 0.181(V)
Pixel Pre Inch (PPI) 137
Viewing Angle 178°(H),178°(V)
Color Saturation (NTSC) 97%
Display Colors 1.07G
Response Time (Typical) 9.5ms
Video interface SDM-S/SDM-L interface
SDM Slot SDM-S/SDM-L
Input Power AC100~240V
Power Consumption 101W (Panel Model only)
Dimensions (mm) 735.4 x 429.8 x 65.3
Bezel Size(U/B/L/R) 16.5/16.5/16.5/16.5 mm
Weight (Net) 12.6kg
Mounting VESA 100x100, 150x150
OSD key 5 Keys (Power Switch, Menu, +, Exit -)
OSD control Brightness, Color, Contrast, Auto Turing, H/V Position…etc
Operating Temperature 0 ˚C ~ 50 ˚C
Storage Temperature -20 ˚C ~ 60 ˚C
