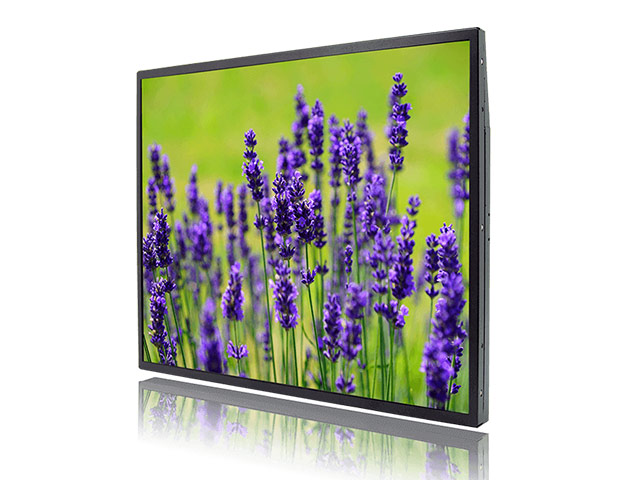

Digital Signage Display
1900-T
19" TFT LCD, 2000 nits LED backlight, 1280x1024
- High brightness 2000 nits
- Sunlight readable
- Resolutions: 1280 x 1024
- Wide Viewing Angle of 176°(H), 176°(V)
- LED Backlight
- Wide temperature (-20˚C ~ 70˚C)
- Low power consumption
- BL MTBF: 100,000 hours
| Model Name | DLF1900-T | DLH1900-T | DLD1900-T |
| Description | 19” TFT LCD, LED Backlight 2000 nits, 1280x1024 | ||
| Size | 19" | ||
| Display area (mm) | 376.32(H) x 301.056(V) | ||
| Brightness | 2000 cd/m² | ||
| Resolution | 1280x1024 | ||
| Aspect ratio | 5:4 | ||
| Contrast ratio | 1400:1 | ||
| Pixel pitch (mm) | 0.294(H) x 0.294(V) | ||
| Pixel per inch (PPI) | 86 | ||
| Viewing angle | 176°(H),176°(V) | ||
| Color saturation (NTSC) | 83% | ||
| Display colors | 16.7M | ||
| Response time (Typical) | 25ms | ||
| Panel interface | LVDS | ||
| Video Interface | HDMI, DP | ||
| Input power | DC12V | ||
| Power consumption | 37W | 40W | |
| Dimensions (mm) | 396.0(W) x 324.1(H) x 25.85(D) | 396(W) x 326.01(H) x 36(D) | |
| Bezel size (U/B/L/R) | 11.572/11.472/9.84/9.84mm | 12.48/12.48/9.84/9.84mm | |
| Weight (Net) | 1.3kg | 2.5kg | |
| Mounting | 75x75,100x100mm | ||
| OSD key | 4 Keys (Power Switch, Menu, +, -) | ||
| OSD control | Brightness, Color, Contrast, Auto Turing, H/V Position…etc | ||
| Operating temperature | -20˚C ~ 70˚C | ||
| Storage temperature | -30°C ~ 80°C | ||
