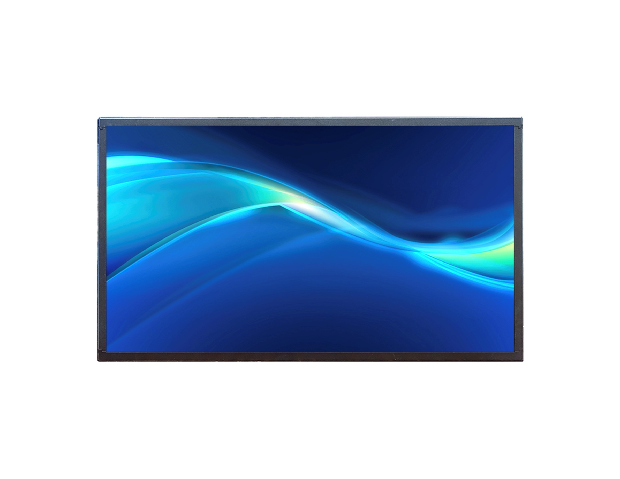

Digital Signage Display
2150-T
21.5” TFT LCD, 2000 nits LED Backlight, 1920x1080
- High Brightness 2000 nits
- Sunlight Readable
- LED Backlight
- Low Power Consumption
- Wide Temperature (-20˚C ~ 70˚C)
- LCD Blackening Defect Free (Hi-Tni 110˚C)
- BL MTBF: 100,000 hours
| Model Name | DLF2150-T | DLH2150-T | DLD2150-T |
| Description | 21.5” TFT LCD, 2000 nits LED Backlight, 1920x1080 | ||
| Size | 21.5" | ||
| Display area (mm) | 476.06(H) x 267.79(V) | ||
| Brightness | 2000 cd/m² | ||
| Resolution | 1920x1080 | ||
| Aspect ratio | 16:9 | ||
| Contrast ratio | 960:1 | ||
| Pixel pitch (mm) | 0.24795(H) x 0.24795(V) | ||
| Pixel per inch (PPI) | 102 | ||
| Viewing angle | 178° (H), 178° (V) | ||
| Color saturation (NTSC) | 74% | ||
| Display colors | 16.7M | ||
| Response time (Typical) | 20ms | ||
| Panel interface | LVDS | ||
| Input interface | HDMI, DP | ||
| Input power | DC 12V | ||
| Power consumption | 22W | 25W | |
| Dimensions (mm) | 497.6(W) x 292.4(H) x 13.35(D) mm | 500.2(W) x 294.6(H) x 35.5(D) mm | |
| Bezel size (U/B/L/R) | 12.207/12.207/10.768/10.768 mm | 13.4/13.5/12.1/12.1 mm | |
| Weight (Net) | 1.85 kg | 3.3 kg | |
| Mounting | 75x75,100x100mm | ||
| OSD key | 4 keys (Power switch, menu, +, -) | ||
| OSD control | Brightness, Color, Contrast, Auto Turing, H/V Position…etc | ||
| Operating temperature | -20˚C ~ 70˚C | ||
| Storage temperature | -30 ˚C ~ 80 ˚C | ||
