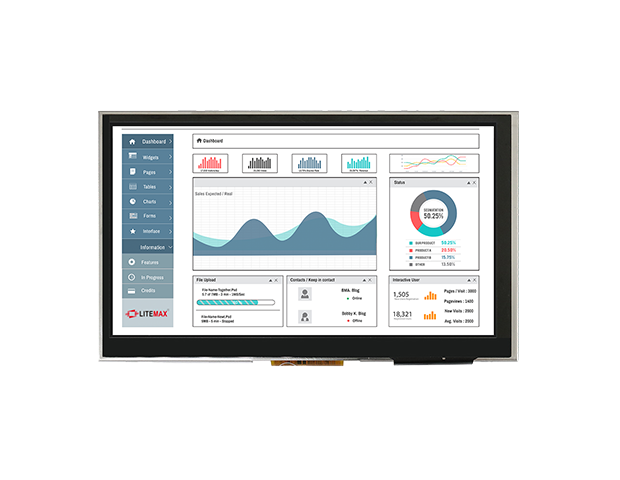

7" Industrial Panel PCs & Monitors
IPPS-0704
7" Industrial Panel PCs & Monitors
- High contrast ratio
- Wide temperature design
- Wide range power support
- Support capacitive touch panel (CTP)
| Display | |||
| LCD display size | 7 inch | ||
| Display type | TFT, Normally Black, Transmissive | ||
| Resolution | 1024 x 600 | ||
| Luminance/Brightness | Min: 800; Typ: 850 (cd/m2) | ||
| Pixel pitch (H/V) | 0.1506mm x 0.1432mm | ||
| Aspect Ratio | 16:9 | ||
| Contrast ratio | 800 (Min: 600) | ||
| Viewing angle | 85/85/85/85 | ||
| Touch Panel | Projected Capacitive Touch Screen, PCAP | ||
| Main System | |||
| Communication Interface | CANBus differential ± 3.3 | ||
| MCU | STM32F746 | ||
| Flash Memory | 16MB | ||
| System I/O | CANBus, UART, JTAG | ||
| System controls | CAN Open | ||
| Power supply | +12V power supply input with 5V to 16V dynamic range power input (the power consumption around 8 Watt. ) |
||
| Environment | |||
| Operating temperature | -20~70℃ | ||
| Storage temperature | -30~80℃ | ||
| Relative humidity | 40℃,90%RH | ||
| Dimensions | 184.1(W) x 103.8(H) x 22(D) | ||
| Weight | 0.28kg | ||
