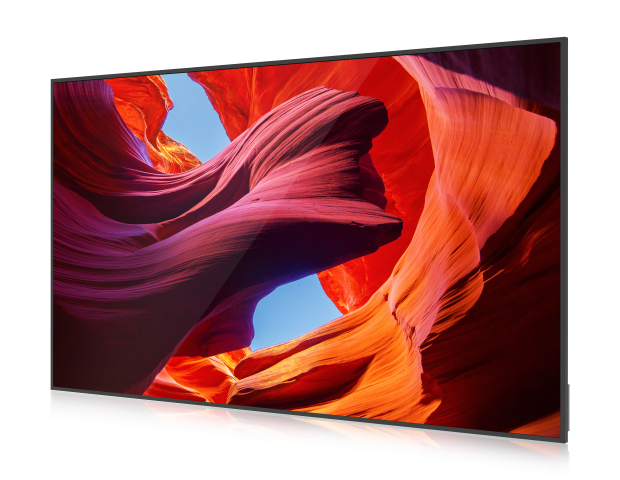

Digital Signage Display
8500-N
85” TFT LCD, 2000nits LED Backlight, 3840x2160
- Sunlight readable
- High brightness 2000 nits
- Local Dimming 84zone
- LCD Blackening Defect Free (Hi-Tni 110˚C)
- Aspect ratio of 16:9
- Wide temperature (-30℃~50℃)
- Low power consumption
- BLMTBF: 50,000 hours
| Model Name | DLF8500-N | DLH8500-N | DLD8500-N |
| Description | 85” TFT LCD, 2000nits LED Backlight, 3840x2160 | ||
| size | 85” | ||
| Display area (mm) | 1872 (H) x 1053(V) | ||
| Brightness | 2000 cd/m² | ||
| Resolution | 3840 x 2160 | ||
| Aspect ratio | 16:9 | ||
| Contrast ratio | 91000:1 | ||
| Pixel pitch (mm) | 0.4875(H) x 0.4875(V) | ||
| Pixel per inch (PPI) | 52 | ||
| Viewing angle | 178°(H),178°(V) | ||
| Color saturation (NTSC) | 91% | ||
| Display colors | 1.07G | ||
| Response time (Typical) | 12ms | ||
| Panel interface | V by One | ||
| Input interface | DVI-D,HDMI,DP | ||
| Input power | AC100~240V | ||
| Power consumption | 1086W | 1089W | |
| Dimensions (mm) | 1910.8 x 1091.8 x 49 | 1915.8 x 1096.8 x 79.9 | |
| Bezel size (U/B/L/R) | 19.4/19.4/19.4/19.4 mm | 21.9/21.9/21.9/21.9 mm | |
| Weight (Net) | 35 kg | 76 kg | |
| Mounting | 600 x 600 mm | ||
| OSD key | 5 Keys (Power Switch, Menu, +, -,Exit) | ||
| OSD control | Brightness, Color, Contrast, Auto Turing, H/V Position…etc | ||
| Operating temperature | -30 ˚C ~ 50 ˚C | ||
| Storage temperature | -30 ˚C ~ 70 ˚C | ||
