Transportation Panel PCs
DPD1968-UPB-Q01

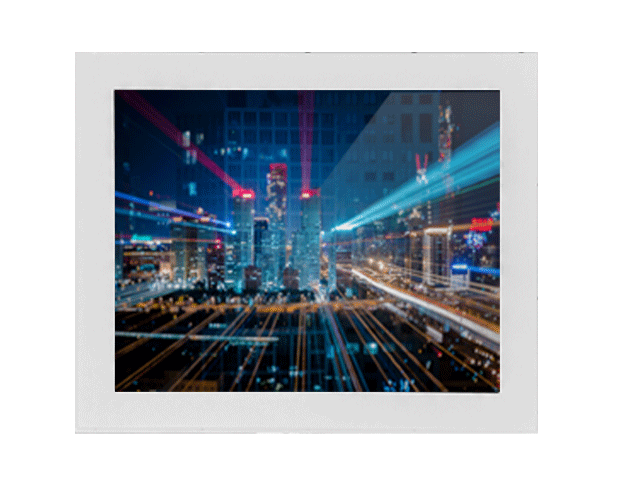

DPD1968-UPB-Q01 19"TFT LCD , 500 nits LED Backlight, 1280x1024
- High Brightness 500 nits
- EN50155
- Digital light sensor
- Wide Tempe rature (30˚C ~ 85˚C)
- Low Power Consumption
- BL MTBF: 100,000 hours
| Model Name | DPD1968-UPB-Q01 | ||
| Description | 19”TFT LCD, 500 nits LED Backlight, 1280 x1024 | ||
| Screen Size | 19” | ||
| Display Area (mm) | 376.32(H) x 301.06(V) | ||
| Brightness | 500 cd/m2 | ||
| Resolution | 1920x1024 | ||
| Aspect Ratio | 5 : 4 | ||
| Contrast Ratio | 1000 : 1 | ||
| Pixel Pitch (mm) | 0.294(H) x 0. 294(V) | ||
| Viewing Angle | 170°(H), 160°(V) | ||
| Color Saturation (NTSC) | 80% | ||
| Display Colors | 16.7M | ||
| Response Time (Typical) | 10ms | ||
| Panel Interface | LVDS | ||
| AD Board Input Interface | VGA | ||
| Input Power | DC 9~36V | ||
| Power Consumption | 13W | ||
| OSD Key | 4 Keys (Power Switch, Menu, +, -) | ||
| OSD Control | Brightness, Color, Contrast, Auto Turing, H/V Position…etc | ||
| Dimensions (mm) | 485 x 410 x 60 mm | ||
| Bezel Size(U/B/L/R) | 54.47/54.47/54.34/54.34 mm | ||
| Weight (Net) | 3 KG | ||
| Operating Temperature | -30˚C ~ 85˚C | ||
| Storage Temperature | -30˚C ~ 85 ˚C | ||
| Certification | EN50155 | ||
