Rugged Panel PCs & Monitors

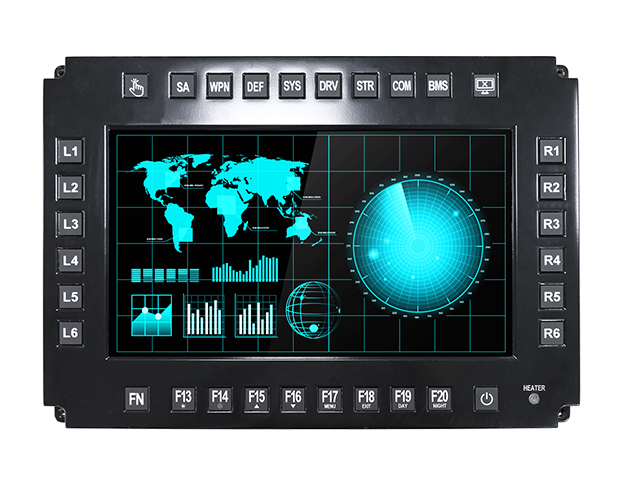

IPPD-1566
15.6” TFT LCD, 1200nits LED Backlight, 1920x1080
- High Brightness 1200 nits
- Sunlight Readable
- LED Backlight
- Low Power Consumption
- Wide Temperature (-30 ˚C ~ 70 ˚C)
- BL MTBF: 100,000 hours
| Model Name | IPPD-1566-8891-STE0-0000 | ||
| Description | 15.6", 1200 nits,1920x1080, PCAP, T3070. LID15C, AD8891D, 32 key, Light Sensor, OCA, Heater, Front IP65, DC12V | ||
| Screen Size | 15.6" | ||
| Display Area (mm) | 344.16(H) x 193.59(V) | ||
| Brightness | 1200 cd/m2 | ||
| Resolution | 1920x1080 | ||
| Aspect Ratio | 16 : 9 | ||
| Contrast Ratio | 1200 : 1 | ||
| Pixel Pitch (mm) | 0.17925(H) x 0.17925(V) | ||
| Viewing Angle | 170°(H),170°(V) | ||
| Input Interface | CN1/CN2 | ||
| Input Power | DC12V | ||
| Power Consumption | 44W (DC12V 3.6A) w/ Heater 19.2W (DC12V 1.6A) w/o Heater |
||
| IP Level | Front IP65 | ||
| Dimensions (mm) | 460 x 320 x 42.5 mm | ||
| Weight (Net) | 6.7 kg | ||
| Operating Temperature | -40 ˚C ~ 65 ˚C | ||
| Storage Temperature | -40 ˚C ~ 75 ˚C | ||
