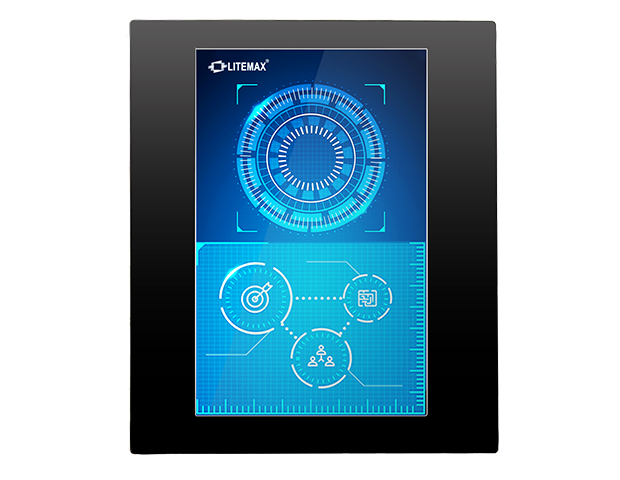

| Model Name | ITRP-0705-RKC4-WP00-2001 | ||
| Description | 7" TFT LCD, 500 nits LED Backlight, 1280x800 | ||
| Screen Size | 7" | ||
| Display Area (mm) | 149.76(H) x 93.60(V) | ||
| Brightness | 500 cd/m2 | ||
| Resolution | 1920x1080 | ||
| Aspect Ratio | 16 : 10 | ||
| Contrast Ratio | 1000 : 1 | ||
| Pixel Pitch (mm) | 0.117(H) x 0.117(V) | ||
| Viewing Angle | 178°(H),178°(V) | ||
| I/O Port | 1x D-coded 4Pin Female RJ45, 1x X-coded 8pin Female RJ45 | ||
| CPU | Rockchip RK3566Processor Quad-core Cortex-A55 | ||
| OS | Debian 10 | ||
| RAM | 4GB LPDDR4 4GB | ||
| Storage | eMMC 32GB | ||
| Input Power | POE input (802.3at) | ||
| Glass | 3mm AR Glass PCAP | ||
| Power Consumption | 8W | ||
| IP Level | Front IP65 | ||
| Dimensions (mm) | 180 x 152 x 43 mm | ||
| Weight (Net) | 830g | ||
| Operating Temperature | -25 ˚C ~ 55 ˚C | ||
| Storage Temperature | -25 ˚C ~ 55 ˚C | ||
| Certification | EN50155、EN45545 | ||
