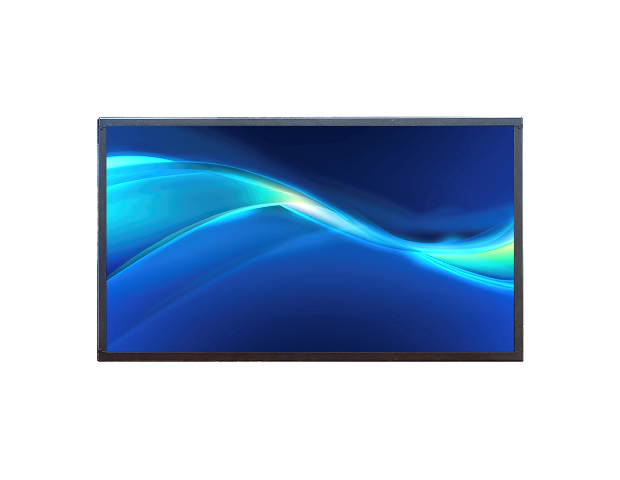

Digital Signage Display

2708-E

27” TFT LCD, 1600nits LED Backlight, 1920x1080
  • High Brightness 1600 nits
  • Sunlight Readable
  • LED Backlight
  • Low Power Consumption
  • LCD Blackening Defect Free(Hi-Tni 105 ˚C)
  • BL MTBF: 50,000 hours
DRUCKEN
Anfrage Vergleich

Hauptmerkmale

  • Sunlight Readable

  • Low Power Consumption

  • Blackening Defect Free

INTRODUCTION Spezifikationen Download
The 2708-E is a 27 inch industrial grade sunlight readable LCD, with high brightness 1600 nits, it produce sharp images, crisp text and lifelike colors. The Durapixel LED backlight technology ensures high reliability and low power consumption, suitable for outdoor application, kiosk, factory automation, military, transportation and gaming application.
Model Name DLF2708-E DLH2708-E DLD2708-E
Description 27” TFT LCD, 1600 nits LED Backlight, 1920x1080
Size 27"
Display area (mm) 597.888(H) x 336.312(V)
Brightness 1600 cd/m²
Resolution 1920x1080
Aspect ratio 16:9
Contrast ratio 1300:1
Pixel pitch (mm) 0.3114 (H) x 0.3114 (V)
Pixel per inch (PPI) 82
Viewing angle 178° (H), 178° (V)
Color saturation (NTSC) 81%
Display colors 16.7M
Response time (Typical) 14ms
Panel interface LVDS
Input interface HDMI, DP
Input power DC 24V
Power consumption 62W 65W
Dimensions (mm) 626.0x363.8x19.3 628.6x366.4x48.3
Bezel size (U/B/L/R) 13.744/13.744/14.056/14.056mm 15.04/15.04/15.36/15.36mm
Weight (Net) 3.0 kg 5.7 kg
Mounting   100x100
OSD key 4 keys (Power switch, menu, +, -)
OSD control Brightness, Color, Contrast, Auto Turing, H/V Position…etc
Operating temperature -20 ˚C ~ 60 ˚C
Storage temperature -30 ˚C ~ 80 ˚C
