Heim / Produkte / Industrial Display / Durapixel™ - im Sonnenlicht ablesbare LCDs / 3200-I

Digital Signage Display

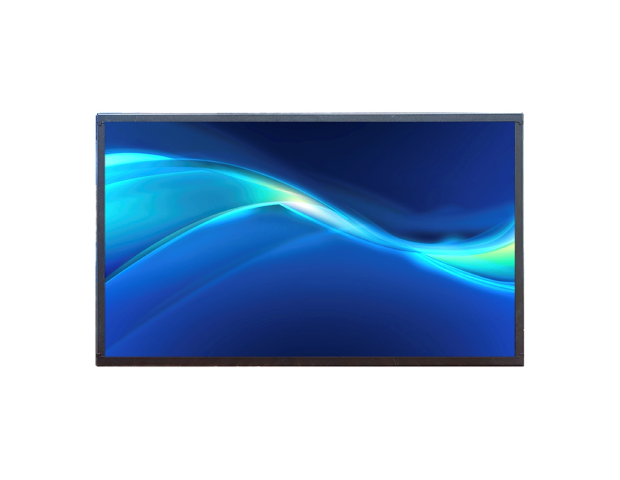

3200-I

32” TFT LCD, 2000nits LED Backlight, 1920x1080
  • High brightness 2000nits
  • Sunlight Readable
  • Wide Operation Temperature (-30 ˚C ~70˚C)
  • LCD Blackening Defect Free (H-Tni 110 ˚C)
  • Surface Treatment (Haze 28%)
  • Low Power Consumption
  • BL MTBF: 100,000 hours
DRUCKEN
Anfrage Vergleich

Hauptmerkmale

  • Sunlight Readable

  • MTBF 100K

  • Low Power Consumption

  • Blackening Defect Free

  • Wide Temp

INTRODUCTION Spezifikationen Download
The 3200-I is 32 inch industrial grade sunlight readable LCD, with high brightness 2000 nits, it produces sharp images, crisp text and lifelike colors. The Durapixel LED backlight technology ensures high reliability and low power consumption, suitable for outdoor application, kiosk, digital signage in retail stores, conference rooms, broadcast studios, public information.
Model Name DLF3200-I DLH3200-I DLD3200-I
Description 32” TFT LCD, 2000nits LED Backlight, 1920x1080
size 32”
Display area (mm) 698.40(H) x 392.85(V)
Brightness 2000 cd/m²
Resolution 1920x1080
Aspect ratio 16:9
Contrast ratio 6500:1
Pixel pitch (mm) 0.36375(H) x 0.36375(V)
Pixel per inch (PPI) 69
Viewing angle 178°(H),178°(V)
Color saturation (NTSC) 82%
Display colors 16.7M
Response time (Typical) 9.5ms
Panel interface LVDS
Input interface DVI-D,HDMI,DP
Input power AC100~240V
Power consumption 83W 86W
Dimensions (mm) 732.4 x 426.85 x 19.9 735.4 x 429.8 x 58.1
Bezel size (U/B/L/R) 17/17/17/17 mm 18.45/18.45/18.50/18.50 mm
Weight (Net) 5.96 kg 11 kg
Mounting   100x100mm, 200x200mm
OSD key 4 Keys (Power Switch, Menu, +, -)
OSD control Brightness, Color, Contrast, Auto Turing, H/V Position…etc
Operating temperature -30 ˚C ~ 70 ˚C
Storage temperature -30 ˚C ~ 70 ˚C
