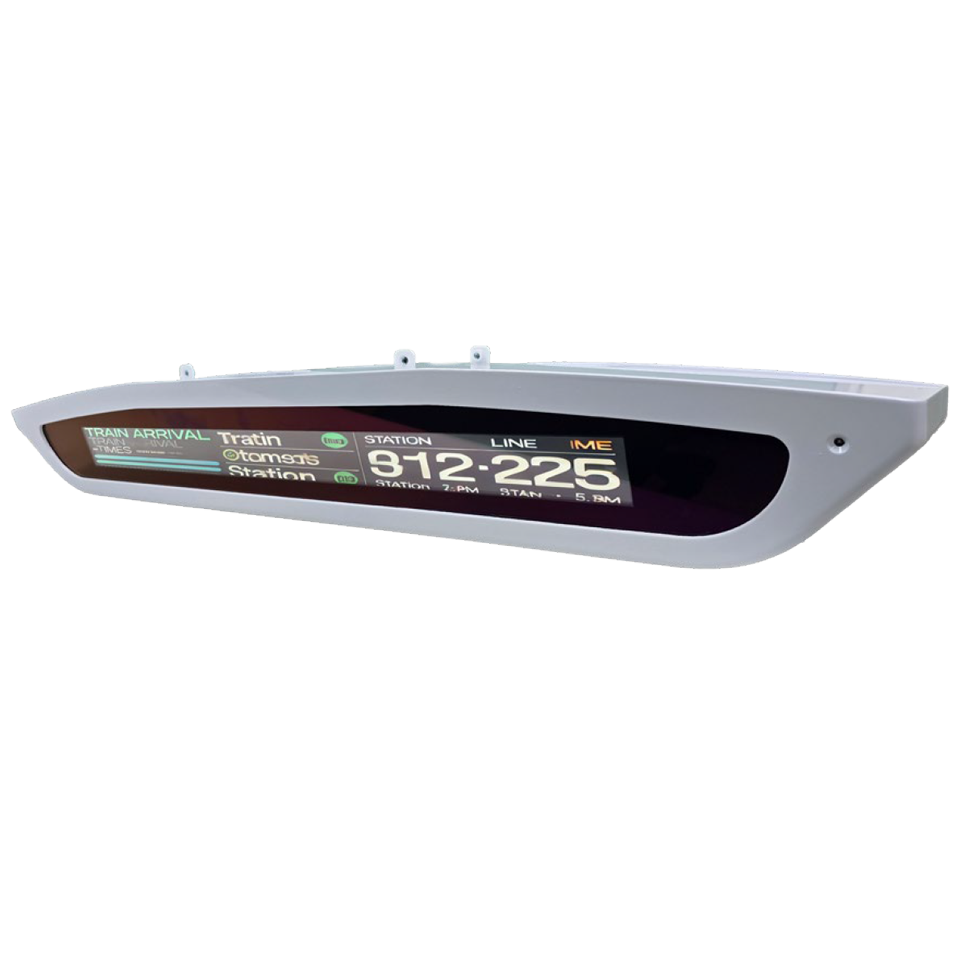

IPPC-2365

  • 23.6” Resizing LCD
  • Ultra Wide Screen 16:1.13
  • High Brightness 500 nits
  • LED Backlight
  • Low Power Consumption
  • 4mm AG Glass/IK07
  • Front IP54
DRUCKEN
Anfrage Vergleich

Hauptmerkmale

  • Wide Viewing Angle

  • Sunlight Readable

Spezifikationen Download
Model Name IPPC-2365-RKC3-VG00-1001
 Description 23.6” Resizing LCD, 500nits LED Backlight, 1920x136
Screen Size 23.6”
 Display Area (mm) 597.6 (H) x 42.33 (V)
 Brightness 500 cd/m2
 Resolution 1920x136
 Aspect Ratio 16:1.13
Contrast Ratio  4000 : 1
 Pixel Pitch (mm) 0.31125 x 0.31125
 Viewing Angle 178°(H),178°(V)
Display Colors 80%
Response Time (Typical) 16.7M
Input Interface 1x LAN ( D-Code 4-pole Female Connector ) 1x Power (3-way lockable DC connector (Wago 721-603/019-000)
Input Power 24VDC (17VDC~31VDC) /1.5A
Power Consumption 27W
CPU Rock Chip ARM Cortex A72+A53 RK3399 Quad-Core CPU
Memory DDR3 4G
Storage Temp. EMMC 64G
OS Linux Debian
Glass 4mm AR Glass (IK07)
Dimensions(mm) 880 x 160 x 120.19
Mounting Ceiling type
Weight (Net) 8.3kg
Operating Temperature -25 ˚C ~ 55 ˚C
Storage Temperature -30 ˚C ~ 60 ˚C
Product Approval EN50155/EN45545
