Heim / Produkte / Industrial Display / Durapixel™ - im Sonnenlicht ablesbare LCDs / SMD3202-MTU-K11

AI Interactive Panel

SMD3202-MTU-K11

32” 3840 x 2160 Mobile Interactive full color Smart display
  • Panel Size 32”
  • High Resolution 3840 x 2160
  • Build in powerful processor
  • Wireless Design with Built-in Battery
  • Multi-Angle Direction Adjustment
  • Touchscreen Control
  • Built-in Streaming & Smart Connectivity
  • High-Quality Display and Audio
  • External USB type camera
DRUCKEN
Anfrage Vergleich

Hauptmerkmale

  • aftermarket

  • Sunlight Readable

  • Multi-touch

  • MaxRGB

  • Kiosk

  • AI

INTRODUCTION Spezifikationen Download

Smarter Display. Anywhere, Anytime.

Litemax SMD3202-M is a versatile smart display that combines wireless freedom, mobility, touchscreenoperation, and smart streaming capabilities. It is designed for users seeking flexible, digital signage and AIinteractive applications in commercial environment.

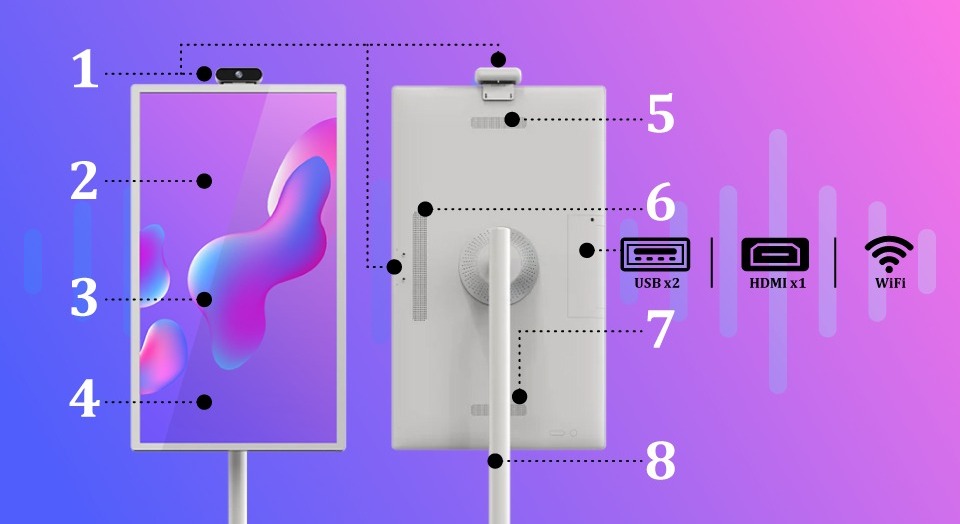

All-in-One Smart Display Solution

1. External USB type camera ( 8MP)

2. Fully Laminated Touch Glass Design

3. 72% NTSC Wide Color Gamut

4. 10-point multi-touch

5. Dual 5W Speakers + Dual Noise-Cancelling Microphones

6. Metal Back Cover & Ventilation Design

7. Dual 5W Speakers + Dual Noise-Cancelling Microphones

8. Ergonomic Adjustable Stand- Landscape / Portrait / Tilt positionsh

Cable-Free Power, Anywhere You Roll

1. Built-in Rechargeable Battery Lasts up to 4 hours, No Cable Needed

2. 5 Wheels, Move With Mood



Flexible Viewing with Auto Rotation

Built-in sensor auto-switches modes, perfect for business displays or content review.

Flexible Customization Services

Custom hardware, software, and branding available—built to suit your application.

Live Streaming / Smart Teaching

Free installation of Android apps with interactive touch control.



Mobile Presentations / Remote Meetings

Supports NFC wireless projection and multi-screen applications; compatible with 8MP USB cameras and Bluetooth voice remote control.

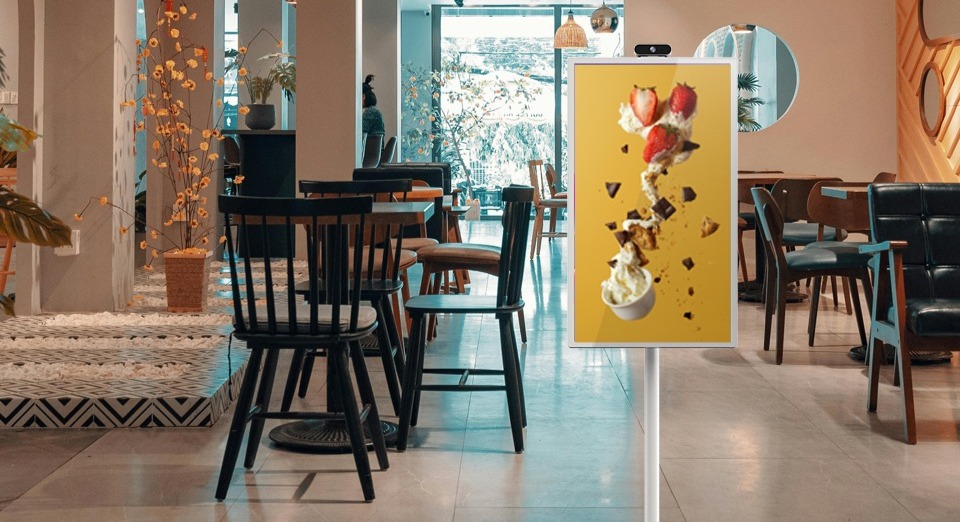

Commercial Display

Portrait mode navigation, advertising playback, and interactive counter screens.



Ordering

Quickly browse main menus and place orders interactively; integrates with wireless payment and backend systems to improve operational efficiency.

Entertainment

High-quality audio and video playback, supporting voice remote control.



Medical Applications

Interactive information display with easy-to-clean design, enhancing medical workflow efficiency and safety.

Easy Assembly

Package Contents:

1. USB Cable (Optional) ×1

2. User Manual ×1

3. Screws and Foot Pads Set

4. Screwdriver ×1

5. Top Cover ×1

6. AC Power Cable (1.5m) + 18V/5A Adapter



Model name SMD3202-MTU-K11
Description 32” 3840 x 2160 Mobile Interactive full color Smart display
Size 32”
Display Area (mm) 698.4 (H) x 392.85 (V)
Brightness 250 cd/m2
Resolution 3840 x 2160
Aspect Ratio 16 : 9
Contrast Ratio 3000 : 1
Display Colors 16.7M
Operating Temperature 0 ˚C ~ -40 ˚C
Storage Temperature -20 ˚C ~ 60 ˚C

Download
