Heim / Produkte / Accessories / AD Board / AD9701HP

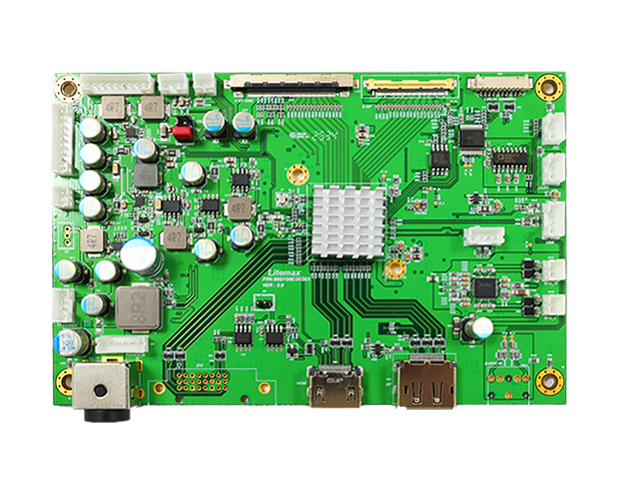

Display Control Board (FHD)

AD9701HP

Display Control Board (FHD)
  • Max resolution 1920x1080 100Hz
  • One DP 1.4, supports 1920x1080 100Hz.
  • One HDMI 2.1, supports1920x1080 100Hz.
  • Embedded MCU with ADC port for VR, light sensor application.
  • Embedded OSD.
  • Support eDP panel.
  • Support Dual/Single LVDS
  • Size 100mm x 72mm
  • Support output voltage 12V(1A) or 5V(1A)
DRUCKEN
Anfrage Vergleich
Spezifikationen Download
Model name AD9701HP
Max. Resolution Max (1920x1080)
Interface eDP 2 lanes. Dual/Single LVDS
Input Power HDMI 2.1, DP 1.4
Panel Power Selection 3.3 / 5 / 12 V
Speaker 2.8W speaker x 2 (4Ώ)
Dimension 100mm x 72mm
Inputs HDMI 2.1, DP 1.4
Resolution 1920x1080
