Square LCD displays

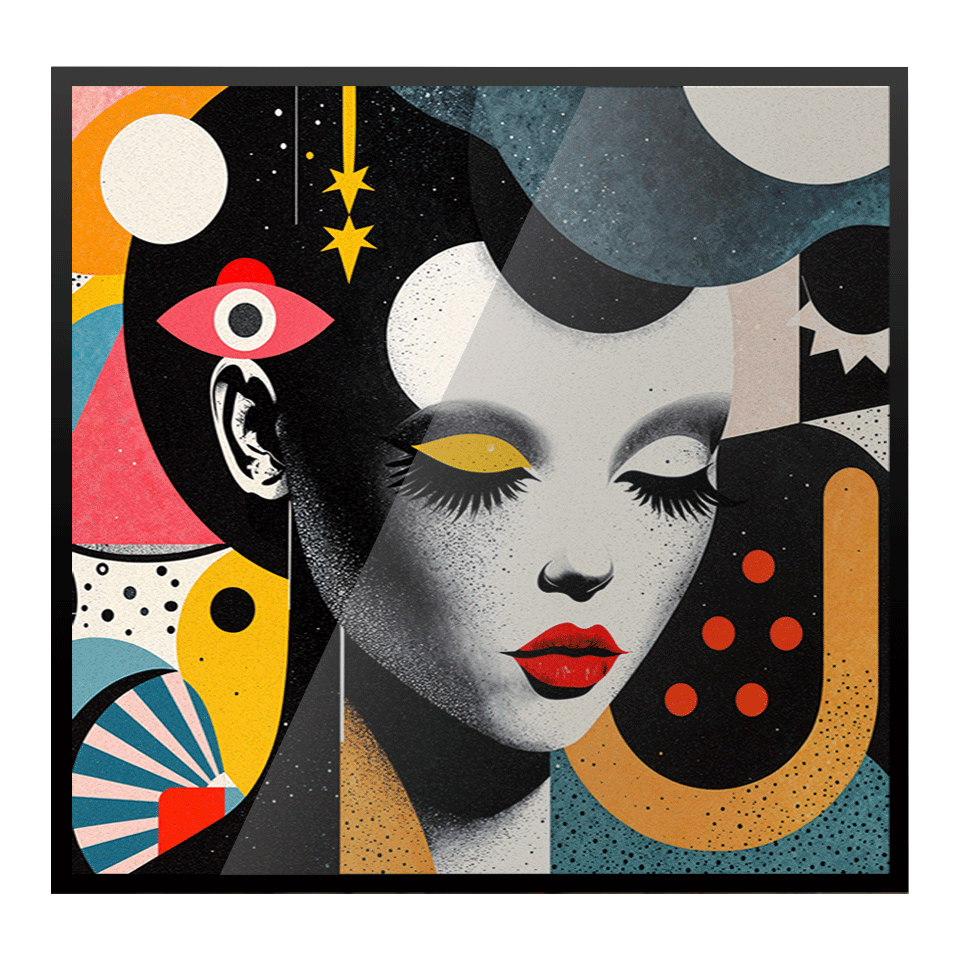

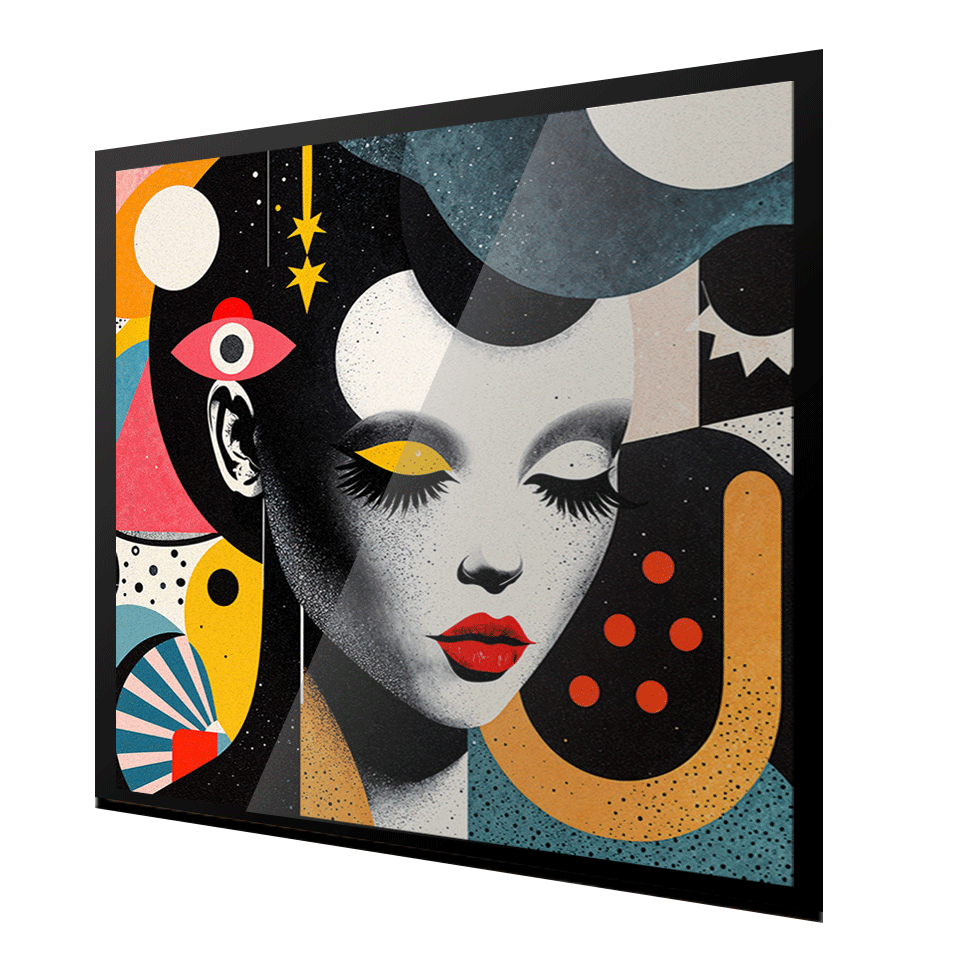

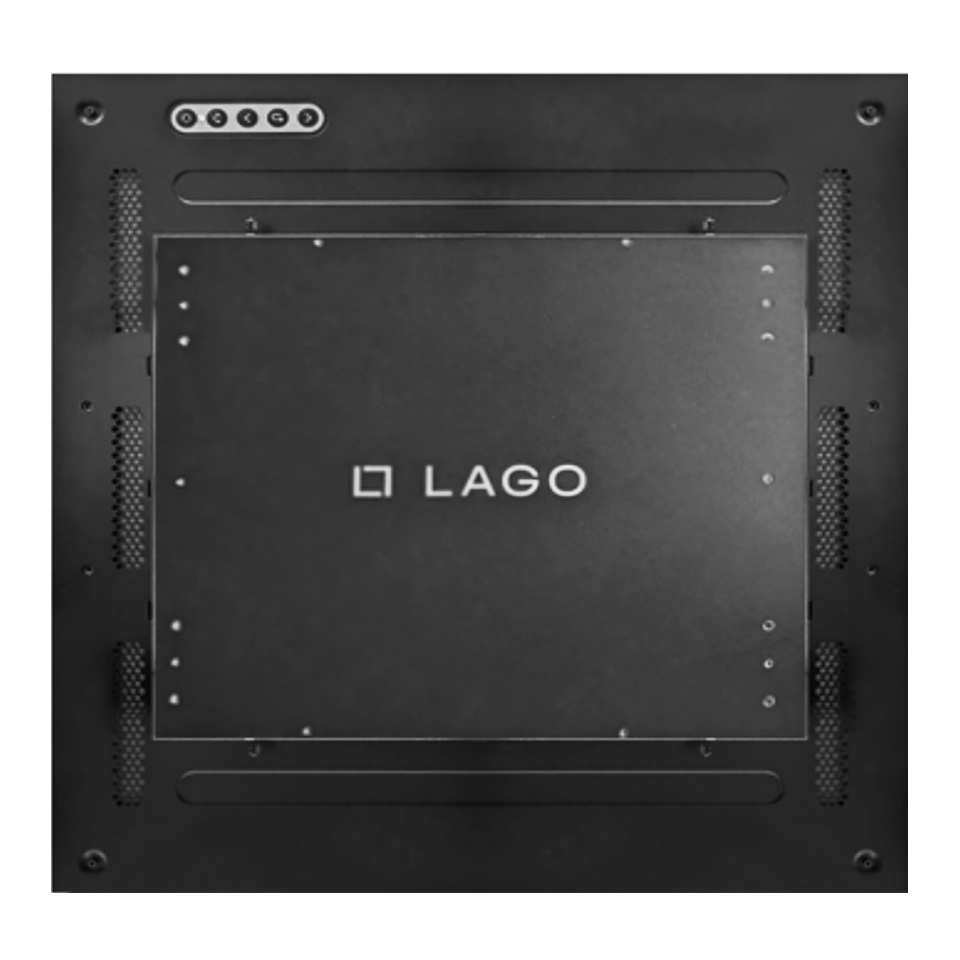

IPPS-3323

33.2" TFT Panel PC
  • High Brightness 500nits
  • Aspect ratio 1:1
  • Quad-core ARM Cortex-A55 CPU and Mali-G52 GPU
  • 2GB RAM, 16GB eMMc flash
  • BL MTBF: 50,000 hours

主要特點

  • Transportation

  • Square Display

  • Low Power Consumption

  • Digital Signage

The IPPS-3323 is a 33.2 inch color TFT-LCD display with special aspect ratio 1:1 and wide resolution 1920 x 1920. It is Litemax’s Squarepixel series product which designed for high brightness with power efficiency LED backlight. It provides LCD panel with specific aspect ratios and sunlight readable for digital signage, public transportation, exhibition hall, department store, and vending machine.
Model name IPPS-3323
Description 33.2” TFT LCD, 1000nits LED Backlight, 1920x1920
Size 33.2”
Display Area (mm) 596.16(H) x 596.16(V)
Brightness 500 cd/m2
Resolution 1920x1920
Aspect Ratio 1 : 1
Contrast Ratio 1000 : 1
Pixel Pitch (mm) 0.3105(H) x 0.3105(V)
Pixel Per Inch (PPI) Pixel Pitch (mm) 0.3105(H) x 0.3105(V)
Viewing Angle 178°(H),178°(V)
Operating Temperature 0 ˚C ~ 50 ˚C
Storage Temperature -20 ˚C ~ 60 ˚C
