Heim / Produkte / Industrial Display / Spanpixel™ - Größe der LCDs anpassen / 6745-M

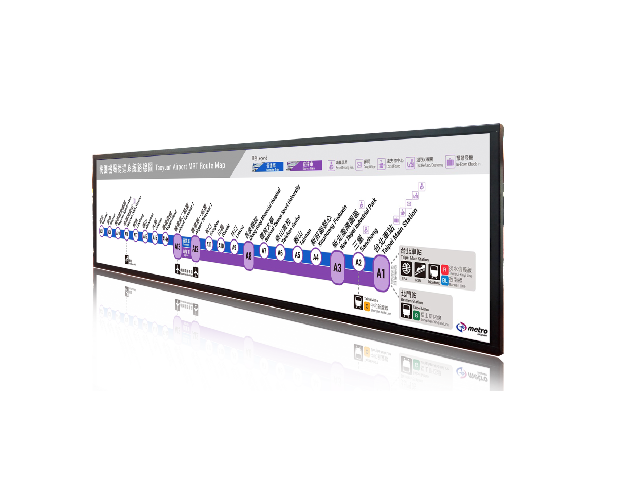

Stretch Digital Display

6745-M

67.4” Resizing LCD,1000 nits LED backlight,3840 x 1080 ultra-wide aspect ratio 16:4.5
  • Resizing LCD
  • Ultra-Wide Screen (16 : 4.5)
  • High Brightness 1000 nits
  • Sunlight Readable
  • LED Backlight
  • BL MTBF: 100,000 hours
DRUCKEN
Anfrage Vergleich

Hauptmerkmale

  • Wide Viewing Angle

  • Sunlight Readable

  • MTBF 100K

INTRODUCTION Spezifikationen Download
The 6745-M is a 67.4 inch color TFT-LCD display with special aspect ratio 16:4.5 and wide resolution 3840 x 1080. It is Litemax’s Spanpixel series product which designed for high brightness 1000 nits with power efficiency LED backlight. It provides LCD panel with specific aspect ratios and sunlight readable for digital signage, public transportation, exhibition hall, department store, and vending machine.
Model Name SSF6745-M SSH6745-M SSD6745-M
Description 67.4” Resizing LCD, 1000 nits LED backlight, 3840x1080
size 67.4”
Display area (mm) 1650.24(H) x 464.13(V)
Brightness 1000 cd/m²
Resolution 3840x1080
Aspect ratio 16:4.5
Contrast ratio 5500 : 1
Pixel pitch (mm) 0.42975(H) x 0.42975(V)
Pixel per inch (PPI) 59
Viewing angle 178° (H), 178° (V)
Color saturation (NTSC) 84%
Display colors 1.07G
Response time (Typical) 6.5ms
Panel Interface V-by-One
Input Interface HDMI, DP
Input power DC24V
Power consumption 108W 111W
Dimensions (mm) 1686(W) x 497.9(H) x 27.1(D) 1691(W) x 502.89(H) x 71.10(D)
Bezel size (U/B/L/R) 16.89/16.89/17.88/17.88 mm 19.38/19.38/20.38/20.38 mm
Weight (Net) 16.8Kg 26Kg
Mounting   500x150mm, 900x150mm
OSD key 5 Keys (Power Switch, Menu, +, -,Exit)
OSD control Brightness, Color, Contrast, Auto Turing, H/V Position…etc
Operating temperature 0 ˚C ~ 50 ˚C
Storage temperature -20°C ~ 60°C
