Heim / Produkte / Accessories / AD Board / AD9800DHP

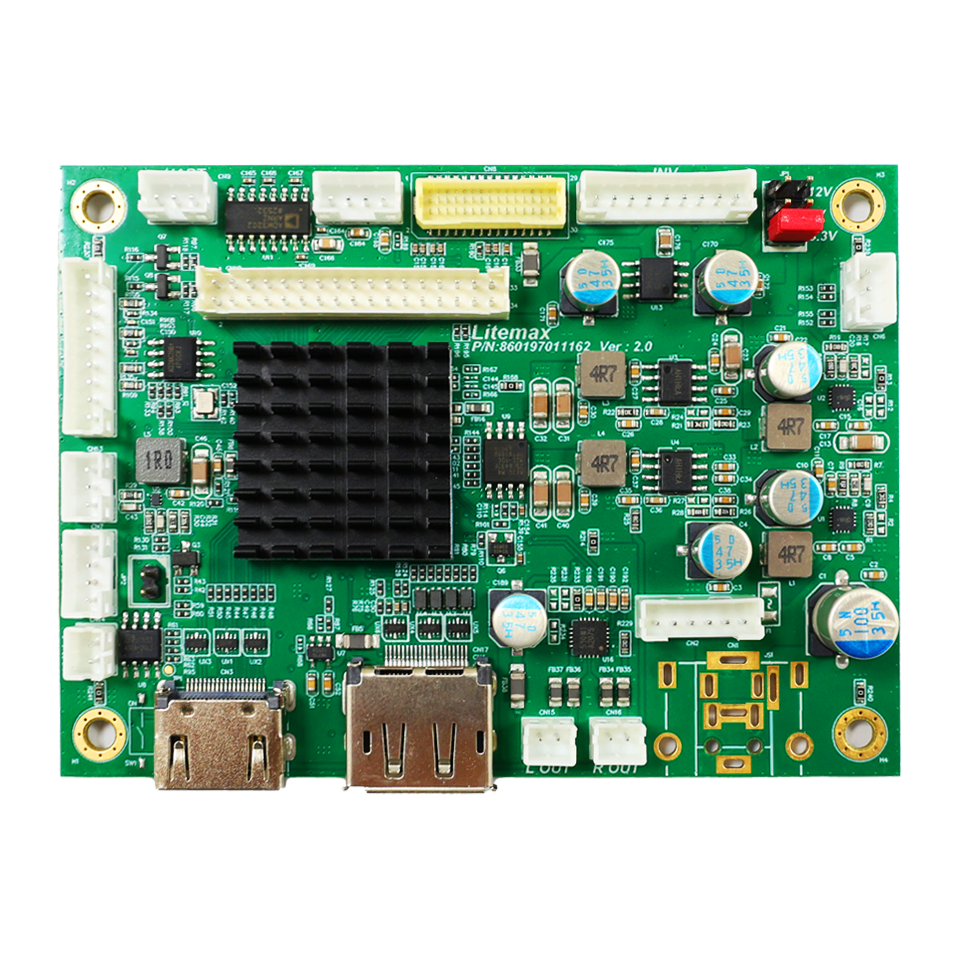

Display Control Board (4K)

AD9800DHP

  • Max resolution 3840x2160 60Hz
  • One DVI input, supports 1080P. (Optional)
  • One HDMI 2.1, supports 3840x2160 60Hz.
  • One Display port 1.4, supports 3840x2160 60Hz.
  • Support 90, 180, degree rotation.
  • Embedded MCU with ADC port for VR, light sensor application.
  • Support HDCP 2.3.
  • Audio line in and speaker output.
  • Embedded OSD.
  • Support V-by-1, eDP panel.
  • Support up to 64 zones LED local dimming control.
DRUCKEN
Anfrage Vergleich
Spezifikationen Download
Model name AD9800DHP
Max. Resolution Max 3840x2160. (DVI only 1080P)
Interface V-by-1 8 lanes, eDP 8 lanes.
Input Power 12V/24V
Panel Power Selection 5 / 10 / 12 V
Speaker 5W speaker x 2(8Ώ)
Dimension 100x150mm
Inputs HDMI 2.1, DP 1.4
Resolution 1920x1080

Download
