2.5" Pico-ITX Boards

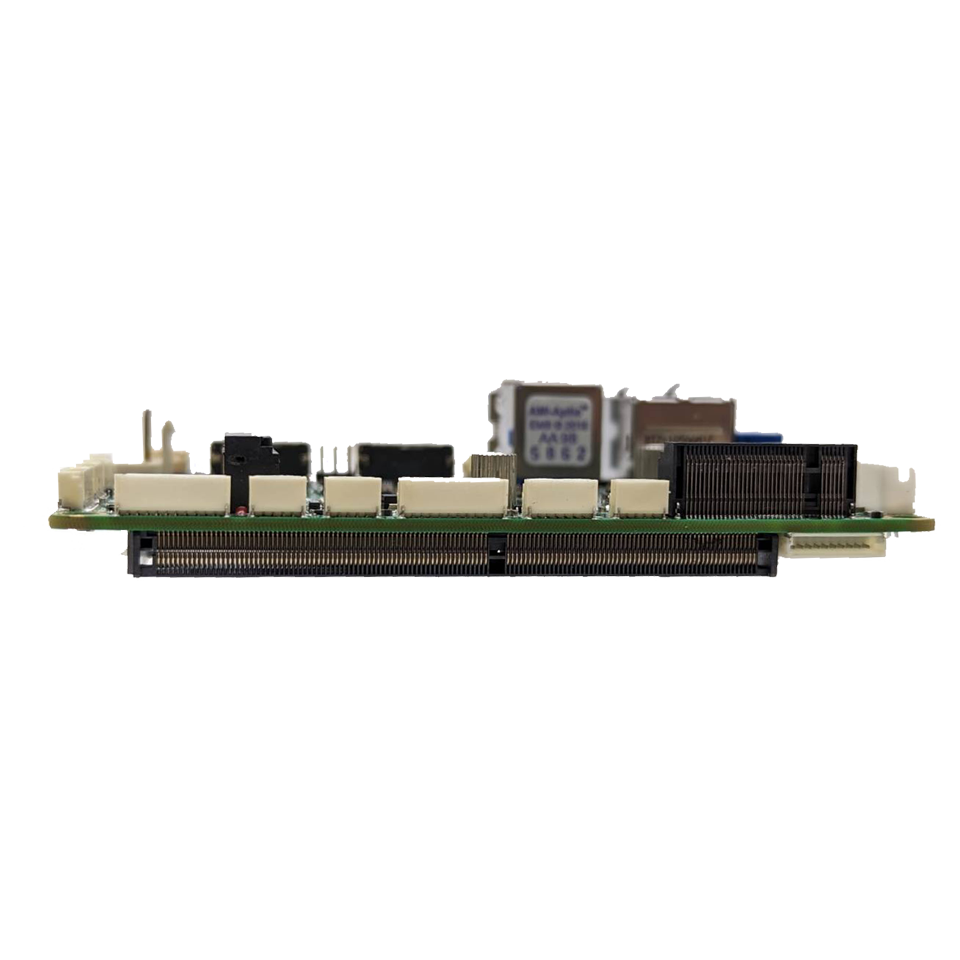

APIX-TGL1

Intel® Tiger Lake-UP3 Series based Pico-lTX Embedded Board Supports Intel® 11th Gen Core™ i3/Celeron ® Processors with Dual HDMI, LVDS, SATAIII, 2COM, 4USB, Intel ® GbE LAN
•    Intel ® Tiger Lake® Core-i ® /Celeron series Soc on board
•    One 260-pin SO-DI MM DDR4 up to 32G 4267MT/s SDRAM
•    Multi-Display: Duel HDMI/LVDS
•    One Intel® Gigabit Ethernet port
•    2 M.2 PCle (1 M.2 B+M Key, 1 M.2 E Key)expansion slots
•    1 SATA Ill, 2 COM, 2 USB 3.2 and 2 USB 2.0
•    Supports 4K/2K Resolution Display
•    DC-in 12V, EuP/ErP 2013 Ready

Main Features

  • High Performance

  • Multi Display

  • Fanless

Model name APIX-TGLl
Form Factor 2.5" PICO-ITX
Dimensions (L)x(W)mm 100mm x 72mm (3.94" x 2.84")
Processor Intel ® 11th Generation Core'" i3/ Celeron ® seriesprocessor on board

Intel ® Core'" i3-1115G4E 3.9GHz DC, 28W

Intel ® Celeron ® 6305E 1.8GHz DC, 15W
Chipset Intel ® Tiger Lake-UP3 Processor integrated
BIOS AMI UEFI Flash ROM
LAN Controller LAN: Intel ® 1219LM PCle GbE LAN
Audio Codec Rea Itek ALC888S HD Audio Codec
Watchdog Timer yes
Memory
Technology DDR4 SDRAM up to 4267 MT/s
Max. Capacity Up to 32GB
Socket 1 x 260-pin SO-DI MM
Display
Graphic Intel ® HD Gen.12-H/LP-HD Graphics
Display Interface 2 x HDMI vl.4b 4K60Hz

1 x LVDS 2K60Hz (Dual channel 18/24-bit)
I/O
Audio 1 x lOPin 1.0mm box-header
USB 2 x USB 3.2 (rear 1/0)

2 x USB 2.0 (with 1.0mm box-header)
COM COMl: RS-232/422/486 (box-header)

COM2: RS-232 (combo 8bit GPIO, box-header)
Display 2 x HDMI (rear 1/0)

1 x LVDS (box-header)
Digital I/O 1 x 8-bit (box-header combo with COM2)
SMB 1 x SMBus (1 x4 pin box-header)
Power Requirement
Power connector AT/ATX lx2-pin
Power Type DC-in 12V
Power Mode AT/ATX (by jumper selection)
Environment
Opearting Temperature 0° C ~ 60 ° C (32 ° F ~ 140 ° F) standard

-20 ° C ~ 70 ° C (-4° F ~ 158 ° F)

-40 ° C ~ 70 ° C (-40° F ~ 158 ° F) optional
Storage Temperature -40° C ~ 80° C (-4° F ~ 176 ° F)
Relative Humidity 0% ~ 95% (non-condensing
