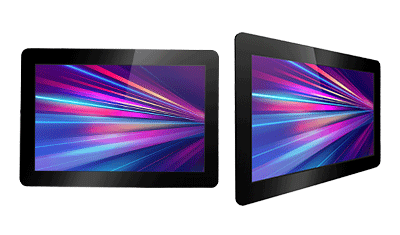

Intel® SDM Ready Display

DLS4302-B

43” TFT LCD, LED Backlight 400 nits, FHD(1920x1080) SDM Solutions
  • High Brightness 400 nits
  • LED Backlight
  • Low Power Consumption
  • Slim Bezel
  • Support Intel® SDM-S/SDM-L

主要特色

  • Low Power Consumption

  • AI

Model name DLS4302-B
Description 43” TFT LCD, 400 nits, FHD(1920x1080) SDM Solutions
Size 43”
Display Area (mm) 940.7(H) x 529.2(V)
Brightness 380 cd/m²
Resolution 1920x1080
Aspect Ratio 16 : 9
Contrast Ratio 1200 : 1
Pixel Pitch (mm) 0.49(H) x 0.49(V)
Pixel Pre Inch (PPI) 51
Viewing Angle 178°(H),178°(V)
Color Saturation (NTSC) 75%
Display Colors 16.7M
Response Time (Typical) 8ms
Video interface SDM-S/SDM-L interface
SDM Slot SDM-S/SDM-L
Input Power AC100~240V
Power Consumption 106W (Panel Model Only)
Dimensions (mm) 964.7x 553.1 x 77.5
Bezel Size(U/B/L/R) 10.4/10.4/10.4/10.4 mm
Weight (Net) 23kg
Mounting VESA 400x200, 400x400
OSD key 5 Keys (Power Switch, Menu, +, Exit -)
OSD control Brightness, Color, Contrast, Auto Turing, H/V Position…etc
Operating Temperature 0 ˚C ~ 50 ˚C
Storage Temperature -20 ˚C ~ 60 ˚C
