Wide DC-in 9-36V
-
Transportation
-
M12 Connectors
-
Digital Signage

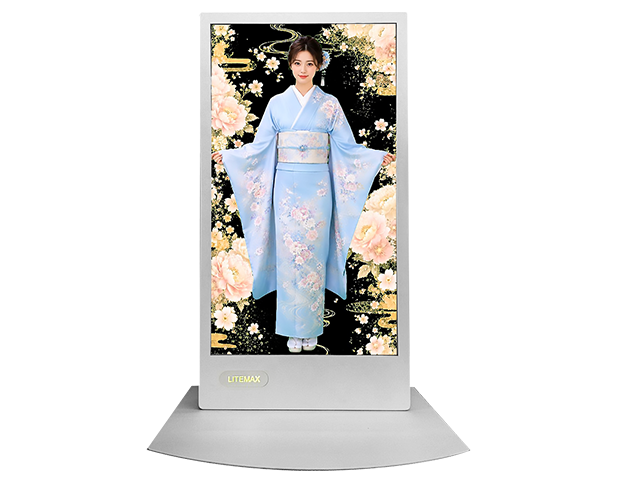

TPD5500-L is an innovative market-leading transparency OLED, resolution 1920x1080, self-emissive without backlight, high contrast ratio, and high color saturation. It is an innovative, both front and back sides are made by glass, and the air separation between it is strengthened OLED transparent. it provides transparency OLED panel with specific aspect ratios for digital signage, AI Interactive virtual, transparent window, exhibition hall, museums and boutiques.
| Part Number | TPD5500-L | ||
| Description | 55” Transparency OLED, 1920x1080 | ||
| Size | 55" | ||
| Display Area (mm) | 680.4(H)x1209.6(V) | ||
| Brightness | Normal 200 cd/m2 and Peak 600 cd/m2 | ||
| Resolution | 1920x1080 | ||
| Aspect Ratio | 16:9 | ||
| Contrast Ratio | 17,000: 1 | ||
| Pixel Pitch (mm) | 0.63(H) x 0.63(V) | ||
| Pixel Pre Inch (PPI) | 40 | ||
| Viewing Angle | 120°(H),120°(V) | ||
| Color Saturation (NTSC) | 87% | ||
| Display Colors | 1.07 Billion colors | ||
| Response Time (Typical) | 8ms | ||
| Panel Interface | V-by-One | ||
| Input Power | DC 24V | ||
| Power Consumption | 104W | ||
| OSD Key | 5 Keys (Power Switch, Menu, +, -,Exit) | ||
| OSD Control | Brightness, Color, Contrast, Auto Turing, H/V Position…etc. | ||
| Dimensions (mm) | 1232.1x845.7x36.3 | ||
| Bezel Size(U/B/L/R) | 122/30/10/10 mm | ||
| Weight (Net) | 21 kg | ||
| Operating Temperature | 0 ˚C ~ 45 ˚C | ||
| Storage Temperature | -20 ˚C ~ 60 ˚C | ||
