Home / Product / Industrial Display / Durapixel™ - Sunlight Readable LCDs / 0848-T

Digital Signage Display

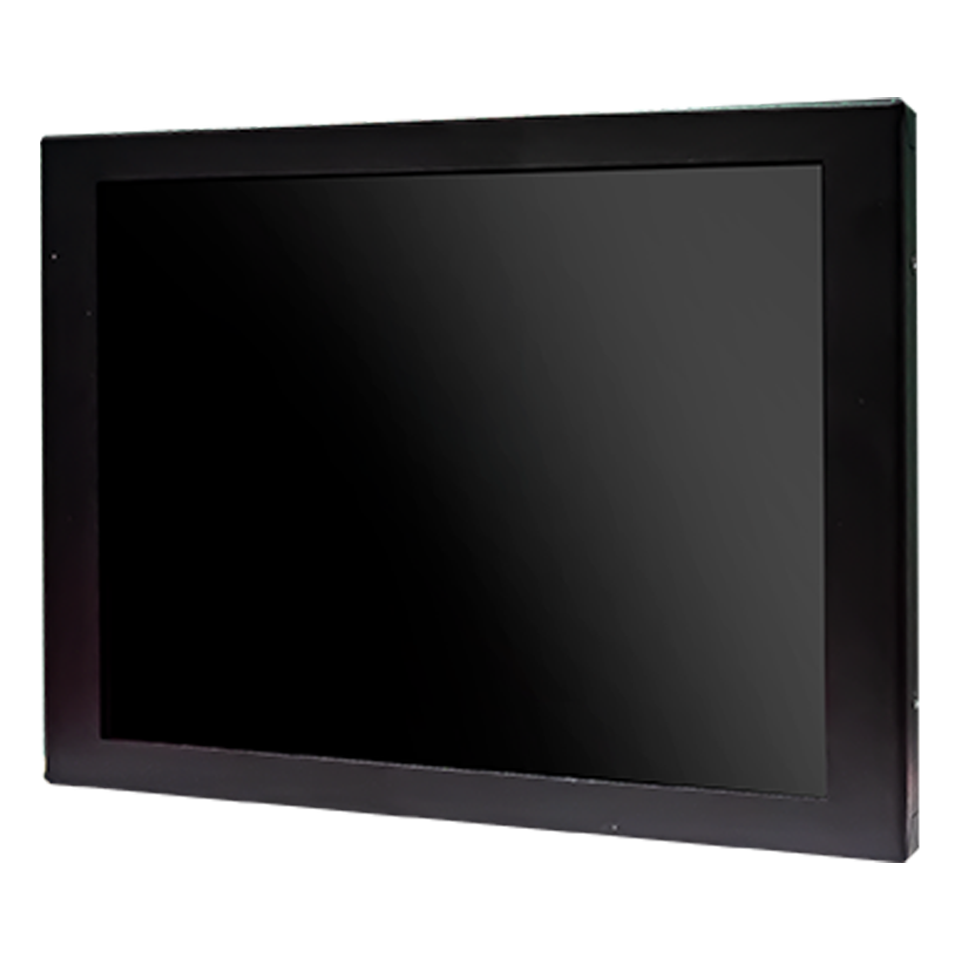

0848-T

8.4” TFT LCD, LED Backlight 1600 nits, 1024 x 768
  • High Brightness 1600 nits
  • Sunlight Readable
  • Wide Viewing Angle: 176°(H),176°(V)
  • LED Backlight
  • Low Power Consumption
  • Wide Temperature ( 3 0 ˚C ~ 8 0 ˚C)
  • BL MTBF: 100,000 hours
PRINT
INQUIRY COMPARE

Main Features

  • Sunlight Readable

  • MTBF 100K

  • Low Power Consumption

SPECIFICATION Download
Model Name DLF0848-T DLH0848-T DLD0848-T
Description 8.4” TFT LCD, LED Backlight 1600 nits, 1024x768
size 8.4”
Display area (mm) 170.496(H) x 127.872(V)
Brightness 1600 cd/m²
Resolution 1024x768
Aspect ratio 4:3
Contrast ratio 1400: 1
Pixel pitch (mm) 0.1665(H) x 0.1665(V)
Pixel per inch (PPI) 152
Viewing angle 176°(H),176°(V)
Color saturation (NTSC) 81%
Display colors 16.7M
Response time (Typical) 25ms
Video interface LVDS VGA, DVI-D, HDMI
Input power   DC 12V
Power consumption 7.7W 8.1W
Dimensions (mm) 199.5(H) x 149(V) x 9.7(T) 204.7(H) x 154.2(V) x 46.3(T)
Bezel size (U/B/L/R) 10.759/10.309/14.502/14.502 13.4/12.9/17.1/17.1
Weight (Net) 0.5kg 1.05kg
Mounting   VESA 75x75

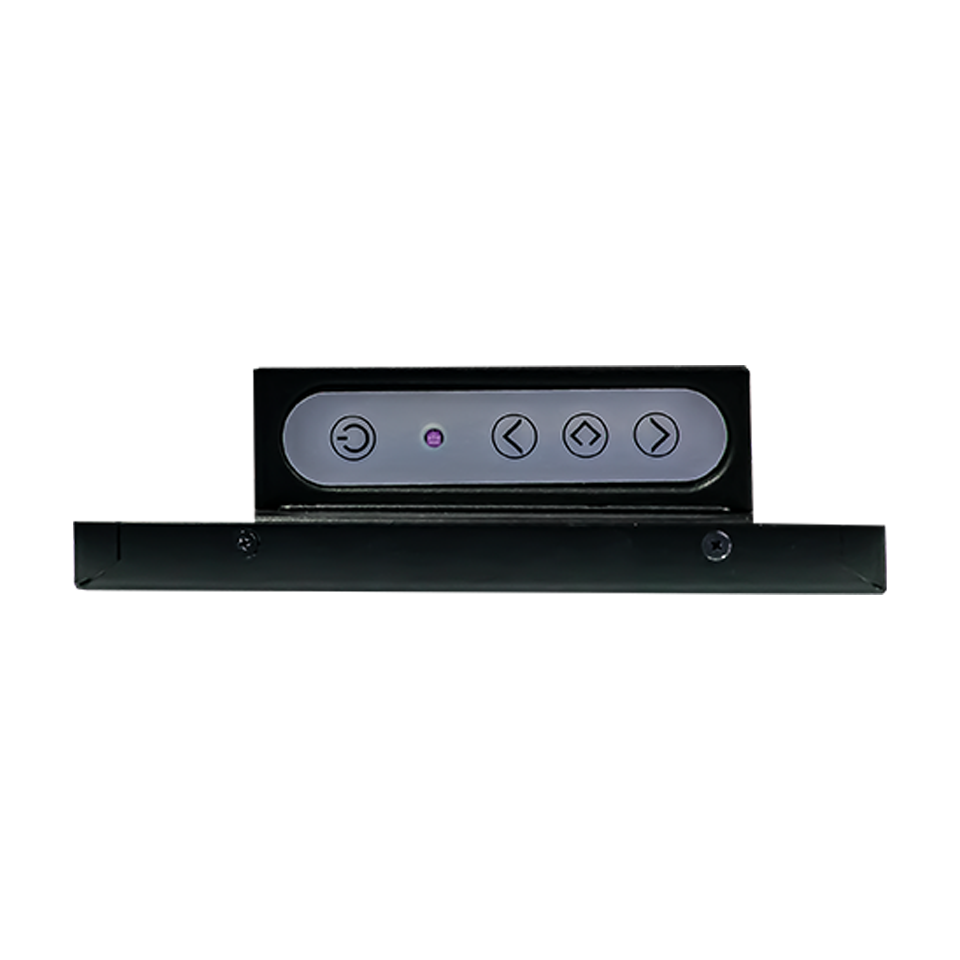

OSD key   4 keys (Power switch, menu, +, -)
OSD control   Brightness, Color, Contrast, Auto Turing, H/V Position…etc
Operating temperature -30 ˚C ~ 80 ˚C
Storage temperature -40 ˚C ~ 90 ˚C
Product approval   CE, FCC
