Home / Product / Industrial Display / Durapixel™ - Sunlight Readable LCDs / 1068-E 1600nits

Digital Signage Display

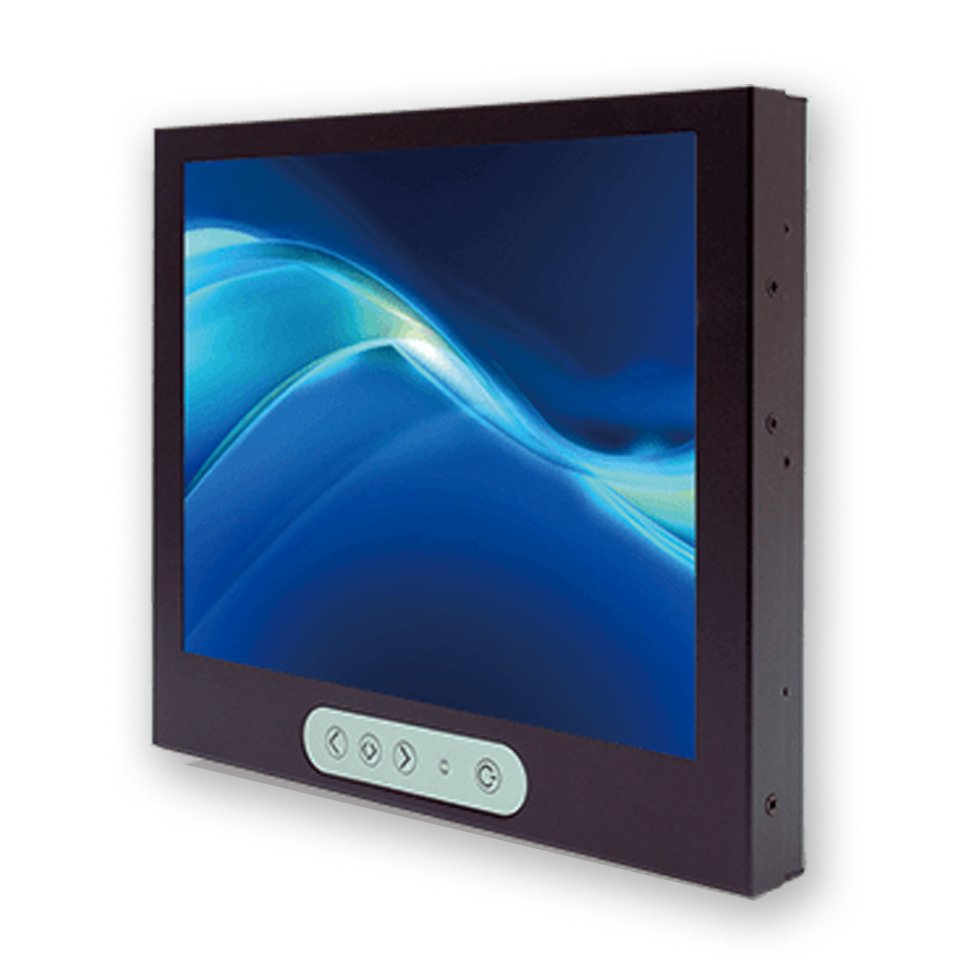

1068-E 1600nits

10.4” TFT LCD, 1600 nits LED Backlight, 800x600
  • 10.4" sunlight readable, high brightness (1,600 nits)
  • Resolutions: 800 x 600
  • Industry leading LED backlight
  • Aspect ratio of 4:3
  • Wide temperature (-20°C~70°C)
  • Low power consumption
  • BL MTBF: 70,000 hours
PRINT
INQUIRY COMPARE
INTRODUCTION SPECIFICATION Download
The 1068-E 1600nits is a 10.4 inch industrial grade sunlight readable LCD, with high brightness 1600 nits, it produce sharp images, crisp text and lifelike colors. The Durapixel LED backlight technology ensures high reliability and low power consumption, suitable for outdoor application, kiosk, factory automation, military, transportation and gaming application.
Model Name DLF1068-E DLH1068-E SLD1068-E
Description 10.4” TFT LCD, 1600nits LED Backlight, 800x600
size 10.4"
Display area (mm) 211.2 (H) x 158.4(V)
Brightness 1600 cd/m²
Resolution 800 x 600 (SVGA)
Aspect ratio 4:3
Contrast ratio 400:1
Pixel pitch (mm) 0.264 (H) x 0.264 (V)
Pixel per inch (PPI) 96
Viewing angle 130°(H),110°(V)
Color saturation (NTSC) 55%
Display colors 262K
Response time (Typical) 25ms
Panel Interface LVDS
Input Interface VGA, DVI-D
Input power DC 12V
Power consumption 5.7W 10.3W
Dimensions (mm) 236 x 176.9 x 6.3 (T) 249.2 x 206.2 x 45.8 (T)
Bezel size (U/B/L/R) 6.3/8.65/11.5/9.5 12.2/33.9/17.85/17.85
Weight (Net) 0.8 kg 1.64 kg
Mounting   VESA 75x75
OSD key 4 keys (Power switch, menu, +, -)
OSD control Brightness, Color, Contrast, H/V Position…etc
Operating temperature -20°C ~ 70°C
Storage temperature -30°C ~ 80°C
