Home / Product / Industrial Display / Durapixel™ - Sunlight Readable LCDs / 1268-I 2000nits

Digital Signage Display

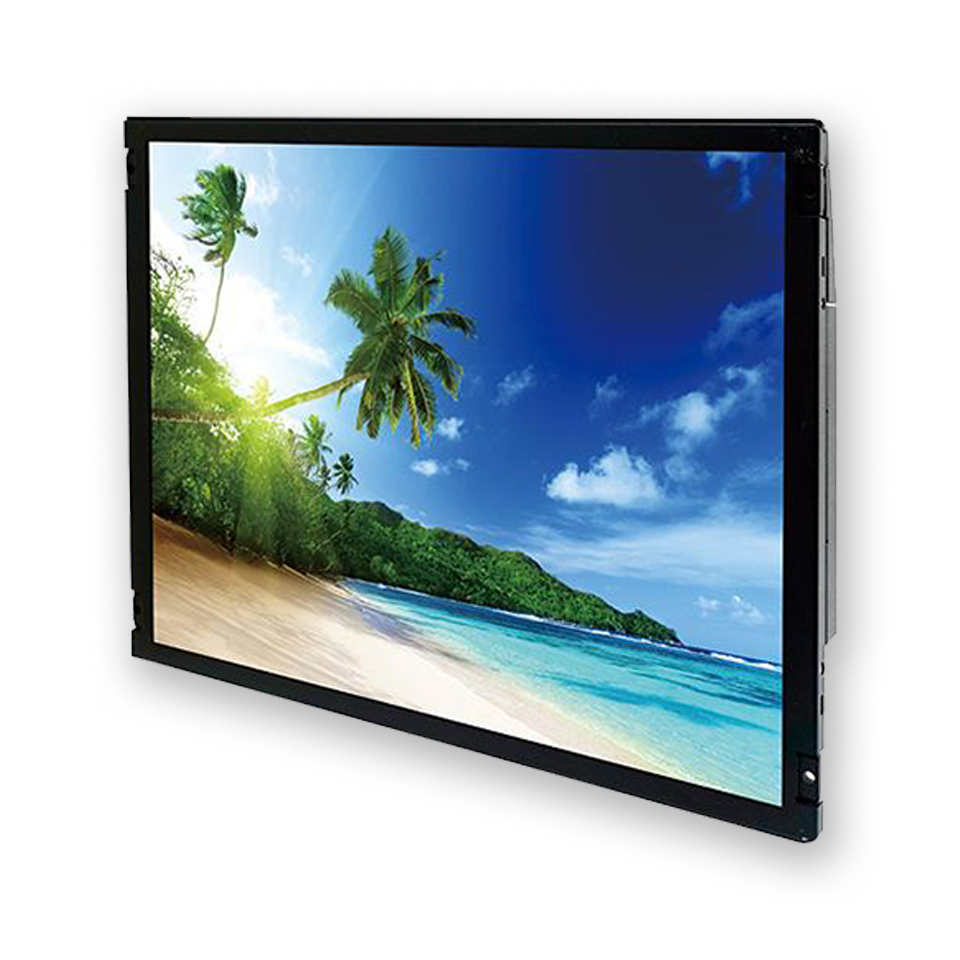

1268-I 2000nits

12.1” TFT LCD, LED Backlight 1600nits, 1024x768
  • High Brightness 2000 nits
  • Sunlight Readable
  • Wide Viewing Angle of 178°(H), 178°(V)
  • Wide Temperature (-30~85℃)
  • Low Power Consumption
  • BL MTBF: 100,000 hours
PRINT
INQUIRY COMPARE
INTRODUCTION SPECIFICATION Download
The 1268-I 2000nits is a 12.1 inch industrial grade sunlight readable LCD, with high brightness 2000 nits, it produces sharp images, crisp text and lifelike colors. The Durapixel LED backlight technology ensures high reliability and low power consumption, suitable for outdoor application, kiosk, factory automation, military, transportation and gaming application.
Model Name DLF1268-I DLH1268-I DLD1268-I
Description 12.1” TFT LCD, 2000 nits LED Backlight, 1024x768
size 12.1"
Display area (mm) 245.76(H) x 184.32(V)
Brightness 2000 cd/m²
Resolution 1024x768
Aspect ratio 4:3
Contrast ratio 1300:1
Pixel pitch (mm) 0.24(H) x 0.24(V)
Pixel per inch (PPI) 106
Viewing angle 178°(H),178°(V)
Color saturation (NTSC) 82%
Display colors 16.2M
Response time (Typical) 25ms
Panel interface LVDS
Input Interface VGA, DVI, HDMI
Input power DC 12V
Power consumption 14W 17W
Dimensions (mm) 272 x 204.6 x 15.43 272x205.4x36.2
Bezel size (U/B/L/R) 8.3/8.3/12.4/10.6 9.1/8.3/12.4/10.6
Weight (Net) 0.9 kg 1.2 kg
Mounting   VESA 75x75
OSD key 4 keys (Power switch, menu, +, -)
OSD control Brightness, Color, Contrast, Auto Turing, H/V Position…etc
Operating temperature -30°C ~ 85°C
Storage temperature -40°C ~ 90°C
