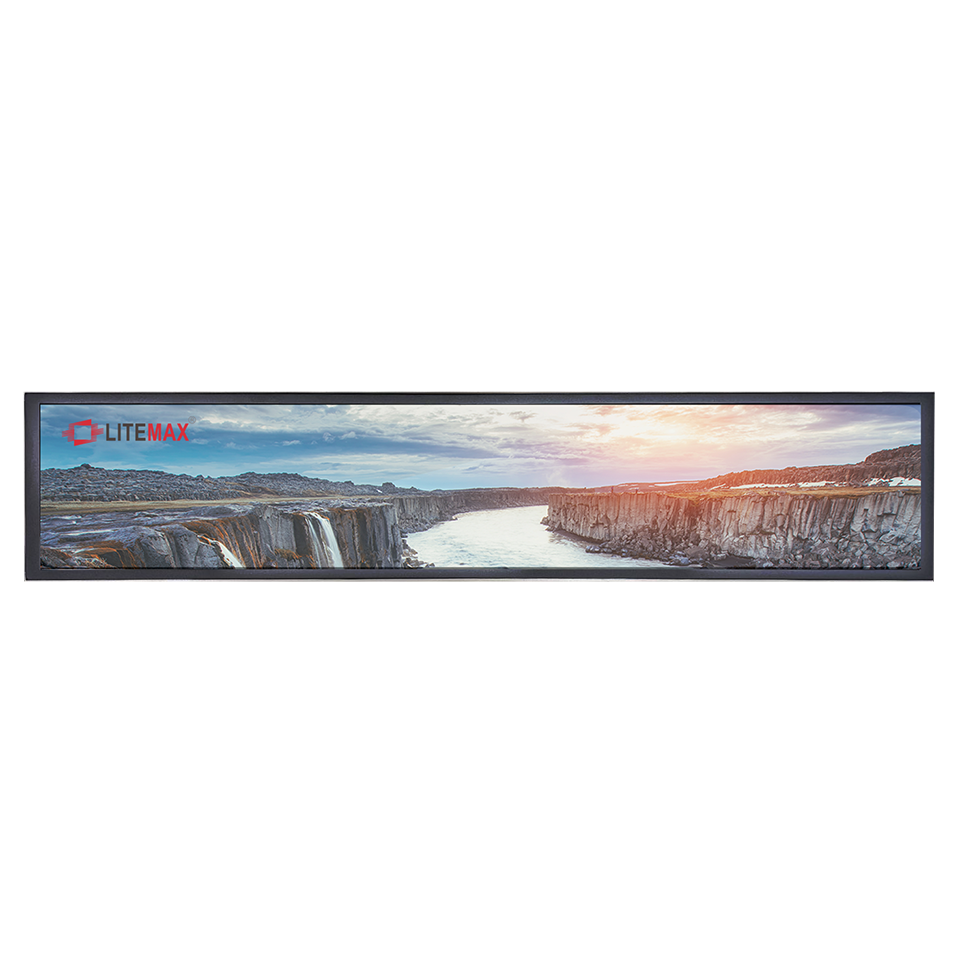

Stretch Digital Display

2805-A_V1

28” Resizing LCD, 1000 nits LED backlight, 1920 x 360
  • 28” Resizing LCD
  •  Ultra-Wide Screen (16 : 3)
  •  High Brightness 1000 nits
  •  LED Backlight
  •  Wide viewing angle 178°(H)~ 178°(V)
  •  Low Power Consumption
  •  BL MTBF: 30,000 hours

Main Features

  • Wide Viewing Angle

  • Low Power Consumption

Model name SSF2805-A SSH2805-A SSD2805-A
Description 28” TFT LCD, 1000 nits LED backlight, 1920x360
Size 28”
Display area (mm) 698.40(H) x 130.95(V)
Brightness 1000 cd/m²
Resolution 1920x360
Aspect ratio 16:3
Contrast ratio 5400 : 1
Pixel pitch (mm) 0.36375(H) x 0.36375(V)
Pixel per inch (PPI) 70
Viewing angle 178°(H),178°(V)
Color saturation (NTSC) 86%
Display colors 16.7M
Response time (Typical) 6.5ms
Panel Interface LVDS
Video interface VGA, DVI-D, HDMI
Input power DC12V
Power consumption 23.32W(25.32W with AD control Board) 25.32W
OSD key 4 Keys (Power Switch, Menu, +, -)
OSD control Brightness, Color, Contrast, Auto Turing, H/V Position…etc
Dimensions (mm) 732 x 165 x 17.3 737 x 170 x 57.9
Bezel Size(U/B/L/R) 17.02/17.02/16.8/16.8 19.5/19.53/19.3/19.3
Mounting (mm)   75x75, 400x75
Weight (Net) 2.6kg 5.4 kg
Operating Temperature 0 ˚C ~ 50 ˚C
Storage Temperature -20 ˚C ~ 60 ˚C
