Home / Product / Industrial Computing / Embedded Box PCs / Performance BOX PC / IMRP-2435

24", 1000nits, 1920x1080

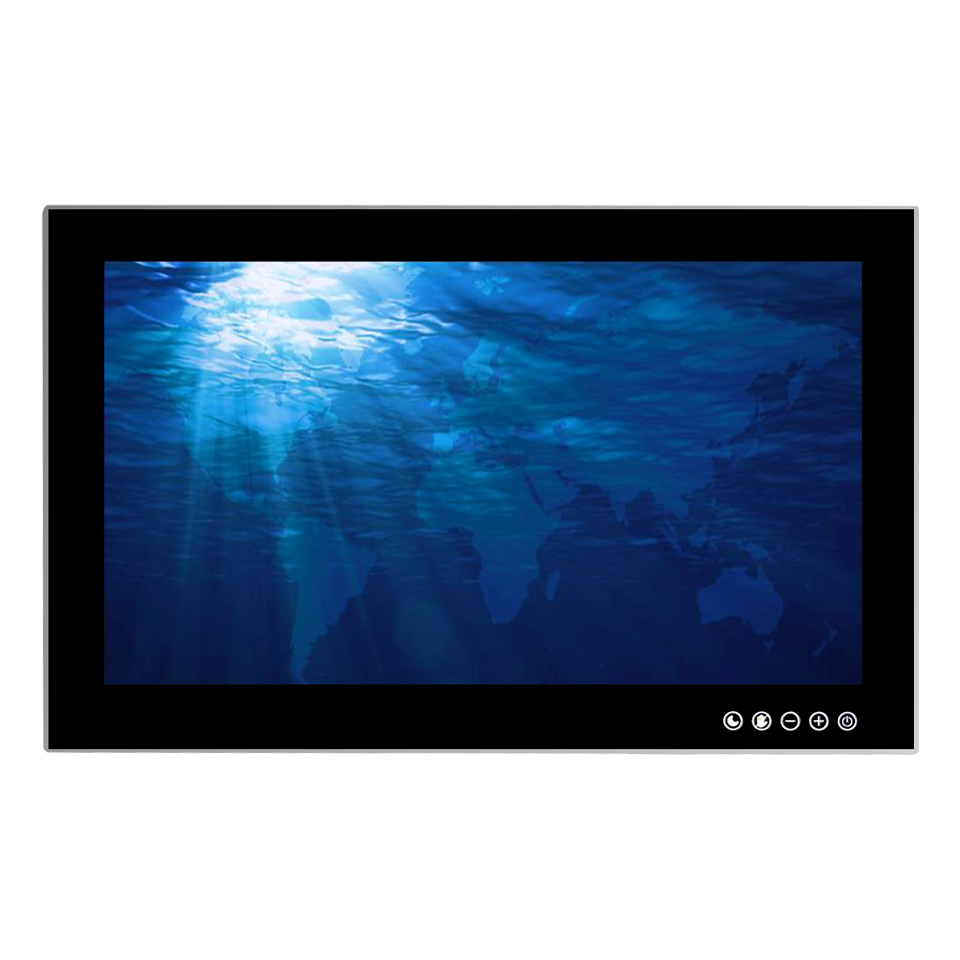

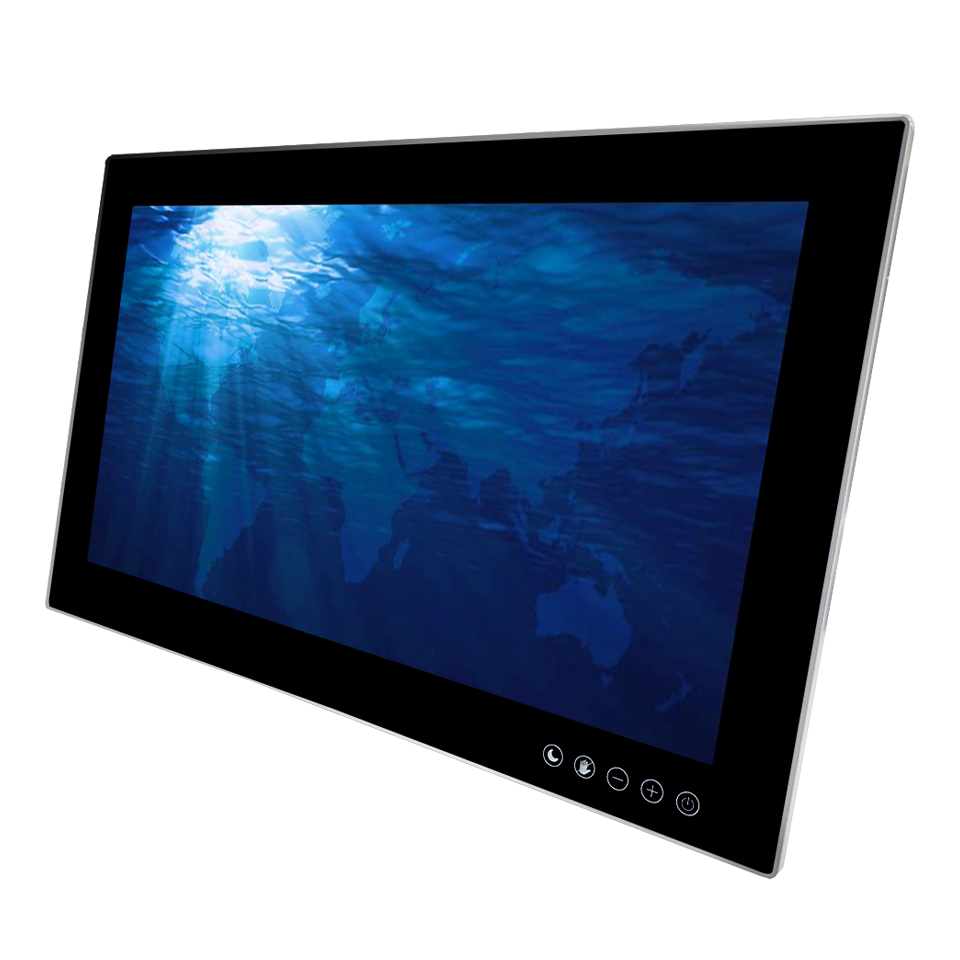

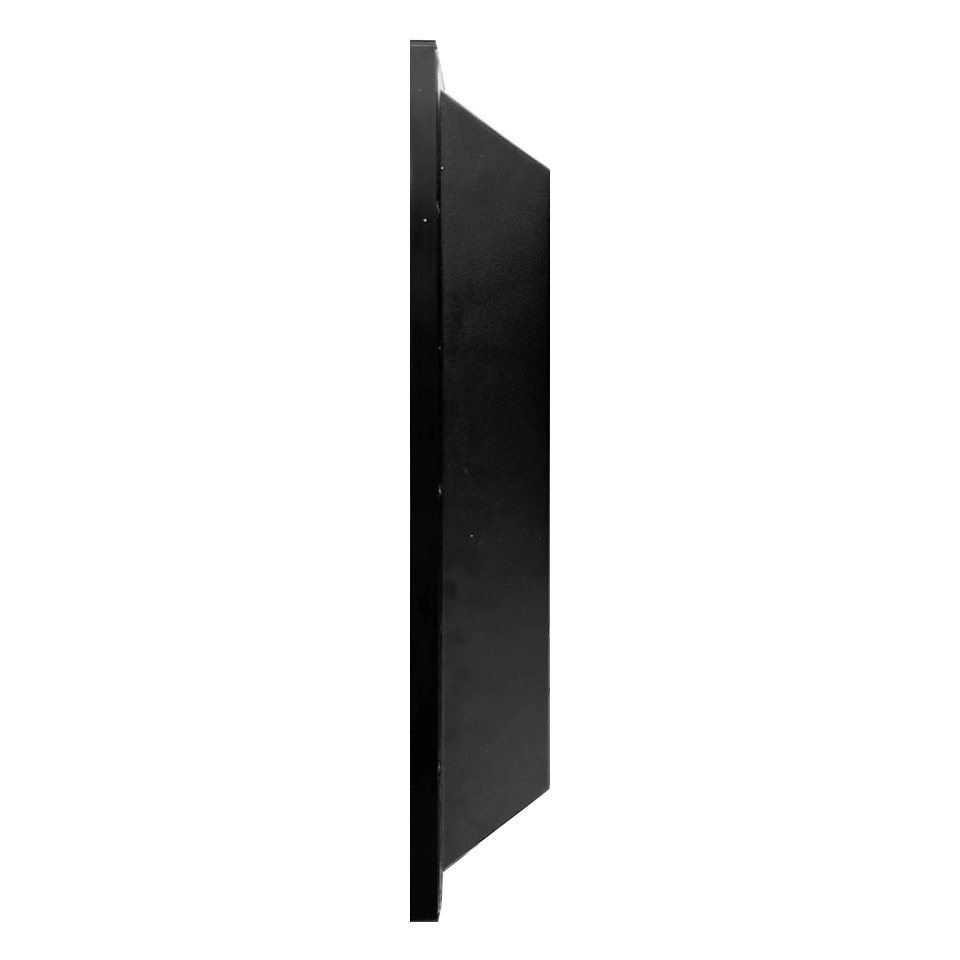

IMRP-2435

▪ Sunlight Readable
▪ LED Backlight ▪ FHD(1920x1080) High Definition
▪ High Shock & Vibration Resistance
▪ Wide Viewing Angle
▪ High Uniformity
▪ Low EMI Noise
▪ Wide Dimming
▪ BL MTBF 70,000 hours
▪ Intel i3-1115G4E
▪ 8GB DDR4, 256GB SSD
▪ IP66 (Front Side)
PRINT
INQUIRY COMPARE

Main Features

  • Full IP65

  • Fanless

INTRODUCTION SPECIFICATION Download
IMRP-2435-TGL0 Panel PC, built-in 1000 nits high bright for sunlight readable LCD display, high transmittance color filter, high transmission polarizing plates, Low Power Consumption, suitable for kiosk, advertising, POS, marine, transportation, gaming, studio display, gas pump.
Model Name IMRP-2435-TGL0-WP00-4001
 Description 1000nits, 1920x1080
Screen Size 24”
 Display Area (mm) 531.36 x 298.89 mm
 Brightness 1000 cd/m2
 Resolution 1920x1080 (FHD)
Contrast Ratio  4000 : 1
 Pixel Pitch (mm) 0.276(H) x 0.276(V)
Pixel Per inch(PPI) 91
 Viewing Angle  +89°~-89°(H), +89°~-89°(V)
Input Interface 24V~110V DC input
 CPU Intel i3-1115G4E

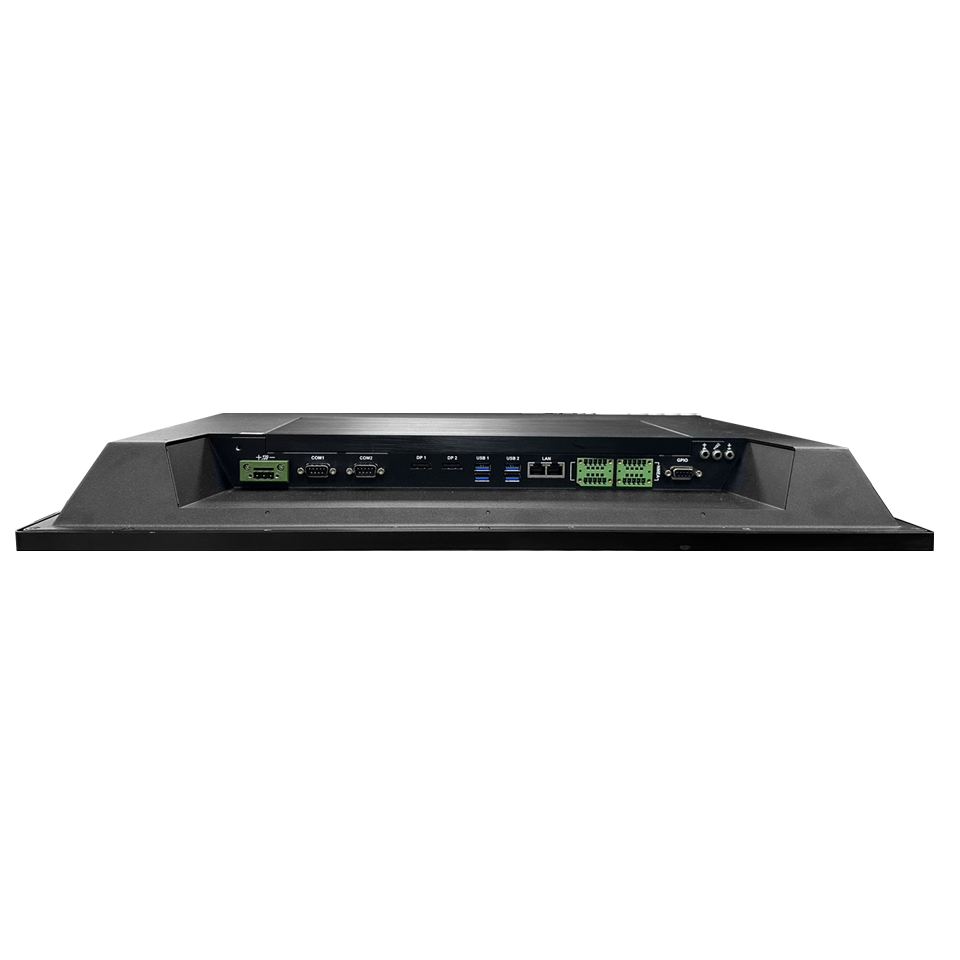

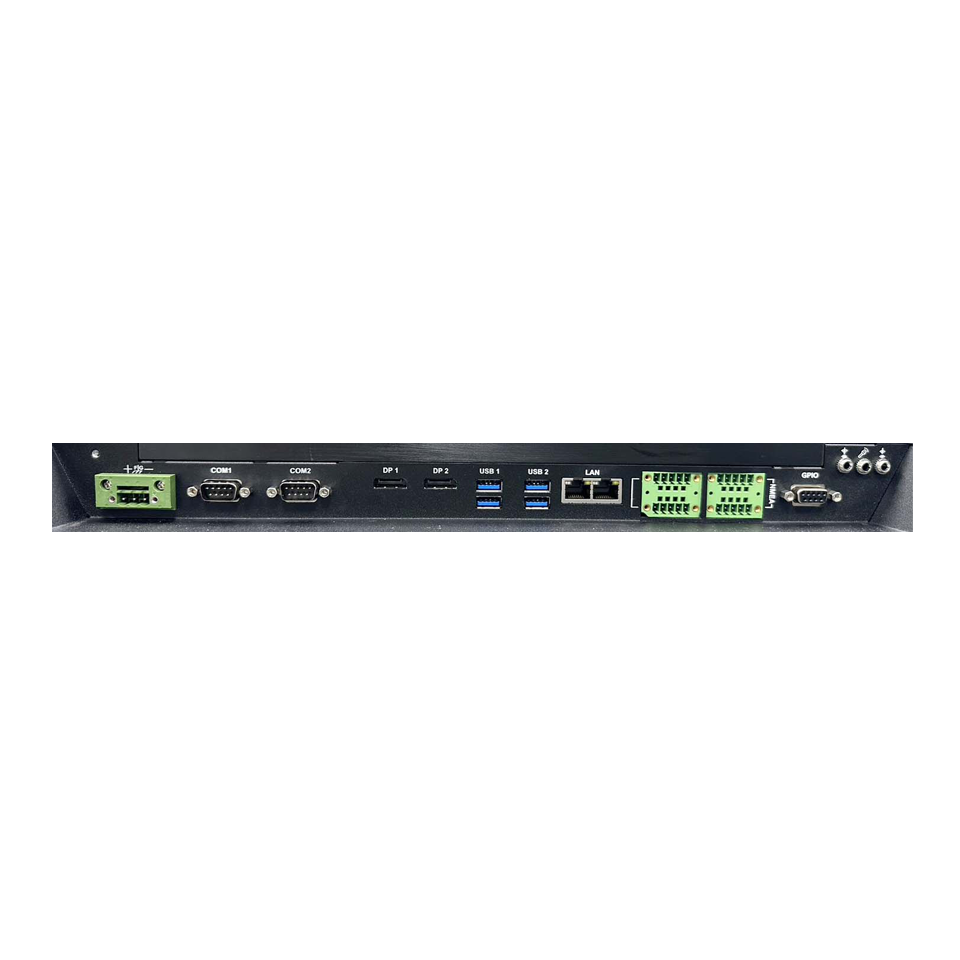

I/O interface 2 DPs/2 LANs/4 NMEA/8 pin GPIO/1 RS-232/1 RS-232/422/485 /4 USB/Audio (Line-in, Line-out, Mic-in)/1 power
RAM 8GB DDR4
Storage 256GB SSD
Operating Temperature 0°C~50°C
Storage Temperature -20°C~60°C
Power Consumption TBC
Dimensions (mm) TBC
Touch Control Button 5 Key (Power、brightness(+,-)、touch control key、function select key(day mode, dusk mode, night mode)
