Ultra Slim BOX PC

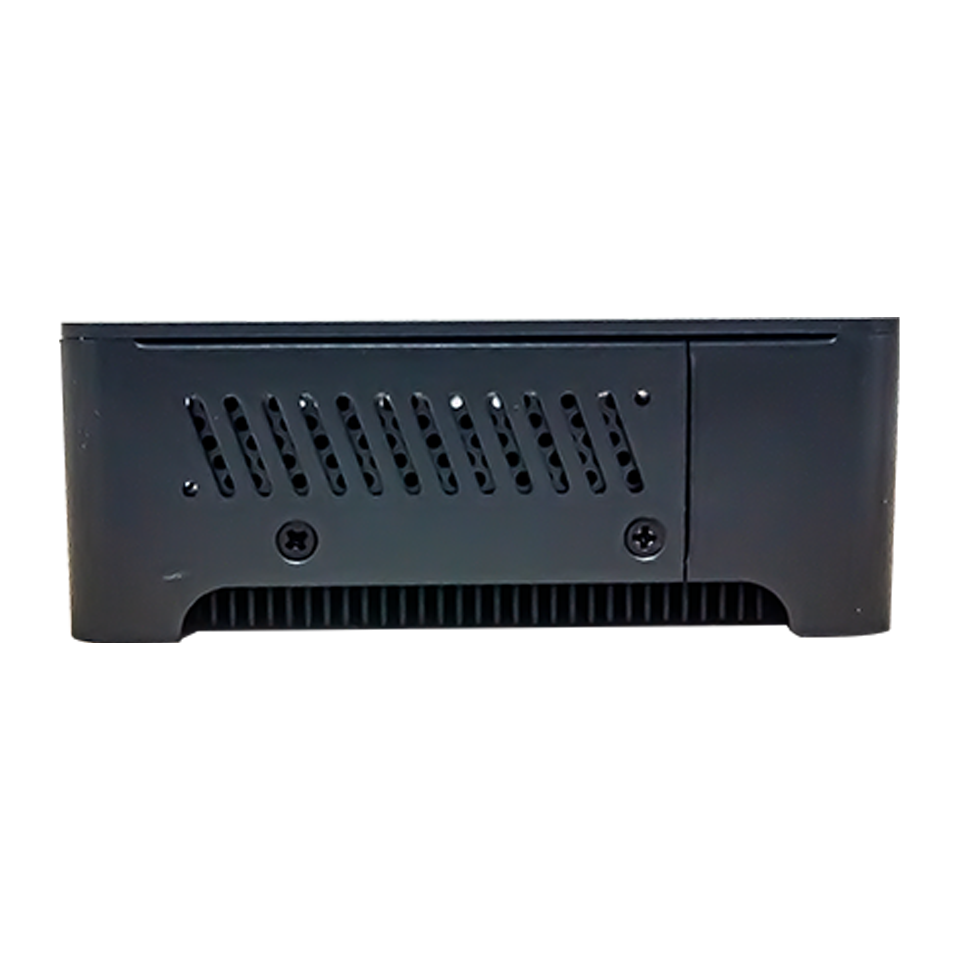

IBOX-WHL0

Fanless Box system with Intel® Core™ i7 i5 i3/Celeron® (Whiskey Lake) Processor, 2 HDMI, 8 USB, 2 GbE LAN
  • Intel® 8th Gen. ULV mobile processor support
  • Dual display: 2 HDMI 4K Display
  • 2 HDMI, 4 USB 3.1, 4 USB 2.0, 2 Giga-LAN
  • DC 12V-24V input
  • Watchdog timer
  • Slim Design I/O front side
PRINT
INQUIRY COMPARE

Main Features

  • Fanless

SPECIFICATION Download
Model name IBOX-WHL0
System
CPU Intel® Core™ i7-8665UE 4.4GHz quad core processor (25W)

Intel® Core™ i5-8365UE 4.1GHz quad core processor (25W)

Intel® Core™ i3-8145UE 3.9GHz quad core processor (25W)

Intel® Celeron® 4305UE 2.0GHz qual core proc
Chipset Intel® Whiskey lake-U integrated
BIOS AMI SPI Flash ROM
System memory 2 x 260-pin DDR4 2400MHz SDRAM; max. up to 64GB
Graphic Intel® HD graphics 620/610
Watchdog timer Yes
I/O
USB 4 x USB 3.1, 4 x USB 2.0
COM N/A
LAN 2
Display 2 x HDMI
Audio N/A
PS/2 N/A
Others N/A
Storage Support
HDD N/A
M.2 1 x M.2 2280 SSD (NVMe Support)
mSATA N/A
Expansion
Mini-PCIe 1 x Full-size
M.2 1 x M.2 B-key (with μ SIM)
Power
Power supply Wide range DC 12V or 19 ~ 24V input, DC Jack connector
Environmental
Operating Temperature 0°C ~ 50°C
Storage Temperature -20°C ~ 60°C
Relative Humidity 0% ~ 90% (non-condensing)
Mechanical
Construction Aluminum extrusion and heavy-duty steel
Standard color Dark Grey
Mounting Wall Mount Bracket (Optional)
Weight 1 kg
Dimensions (W)x(D)x(H)mm 205 mm(W) x 122.6 mm(D) x 43.2mm(H)
