Home / Product / Industrial Display / OLED Transparent Display / TLD5500-L

Transparent OLED Digital Signage

TLD5500-L

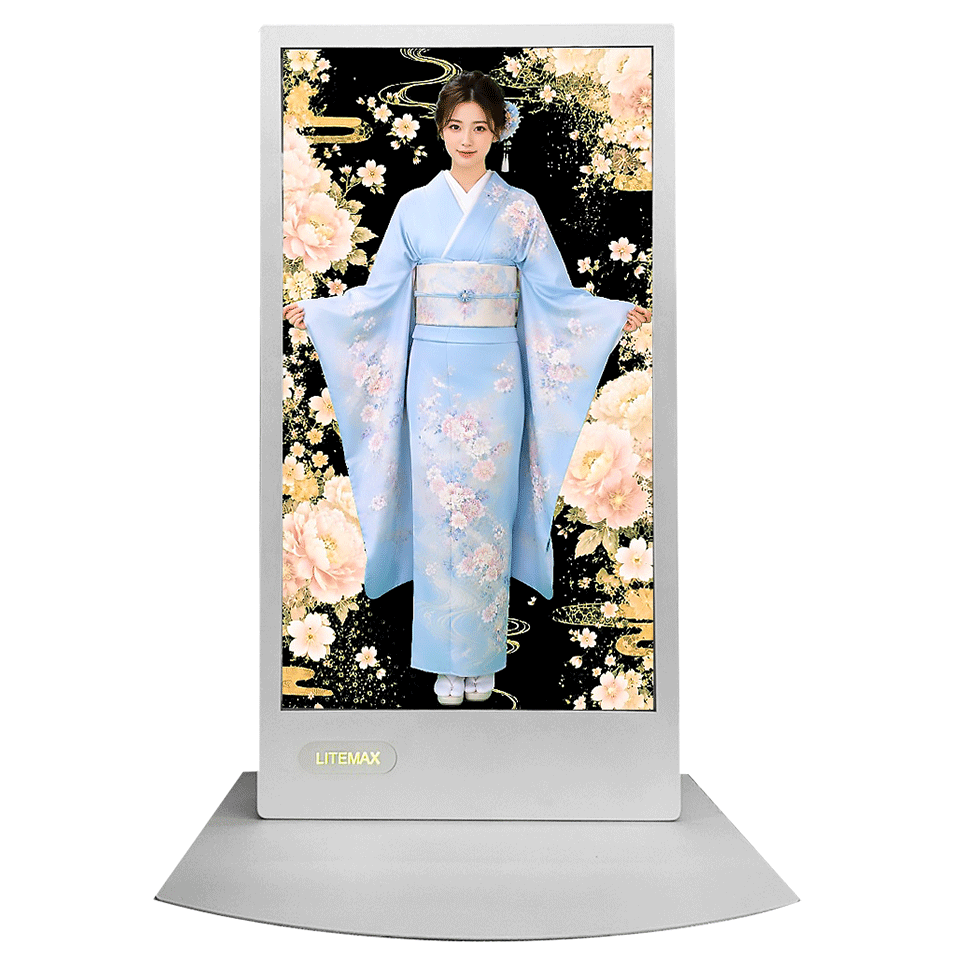

55" Transparent OLED Digital Signage
  • Transparency OLED display
  • Wide screen 16:9
  • Connecting rods on both sides can be fixed to the wall ceiling or floor and customized design
  • Transparent Ratio 43%(typ.)
  • Low power consumption
  • Life Time 30,000Hrs
PRINT
INQUIRY COMPARE

Main Features

  • aftermarket

  • dashboard

  • HMI

  • ESG

  • High Performance

  • Wide Temp

  • Wide Viewing Angle

  • USB

  • Touch Screen

INTRODUCTION SPECIFICATION Download
TLD5500-L is an innovative market-leading transparency OLED, resolution 1920x1080, self-emissive without backlight, high contrast ratio, and high color saturation. It is an innovative, both front and back sides are made by glass, and the air separation between it is strengthened OLED transparent. Combined with the connecting rods on both sides, can be fixed to the wall, ceiling or floor, allowing the space to be used more effectively. it provides transparency OLED panel with specific aspect ratios for digital signage, AI Interactive virtual, transparent window, exhibition hall, museums and boutiques.
Part Number TLD5500-L
Description 55” Transparency OLED, 1920x1080
Size 55"
Display Area (mm) 680.4(H)x1209.6(V)
Brightness Normal 200 cd/m2 and Peak 600 cd/m2
Resolution 1920x1080
Aspect Ratio 16:9
Contrast Ratio 17,000: 1
Pixel Pitch (mm) 0.63(H) x 0.63(V)
Pixel Pre Inch (PPI) 40
Viewing Angle 120°(H),120°(V)
Color Saturation (NTSC) 87%
Display Colors 1.07 Billion colors
Response Time (Typical) 8ms
Panel Interface V-by-One
Input Interface HDMI, DP
Input Power DC 24V
Power Consumption TBD
OSD Key 5 Keys (Power Switch, Menu, +, -,Exit)
OSD Control Brightness, Color, Contrast, Auto Turing, H/V Position…etc.
Dimensions (mm) 770.4x1453x110
Bezel Size(U/B/L/R) 45/198.4/45/45 mm
Weight (Net) 78 kg
Operating Temperature 0 ˚C ~ 45 ˚C
Storage Temperature -20 ˚C ~ 60 ˚C
