Heim / Produkte / Industrial Computing / Industrial Panel PCs & Monitors / Transportation Panel PCs / IPPS-4955-RKC3

Transportation Panel PCs

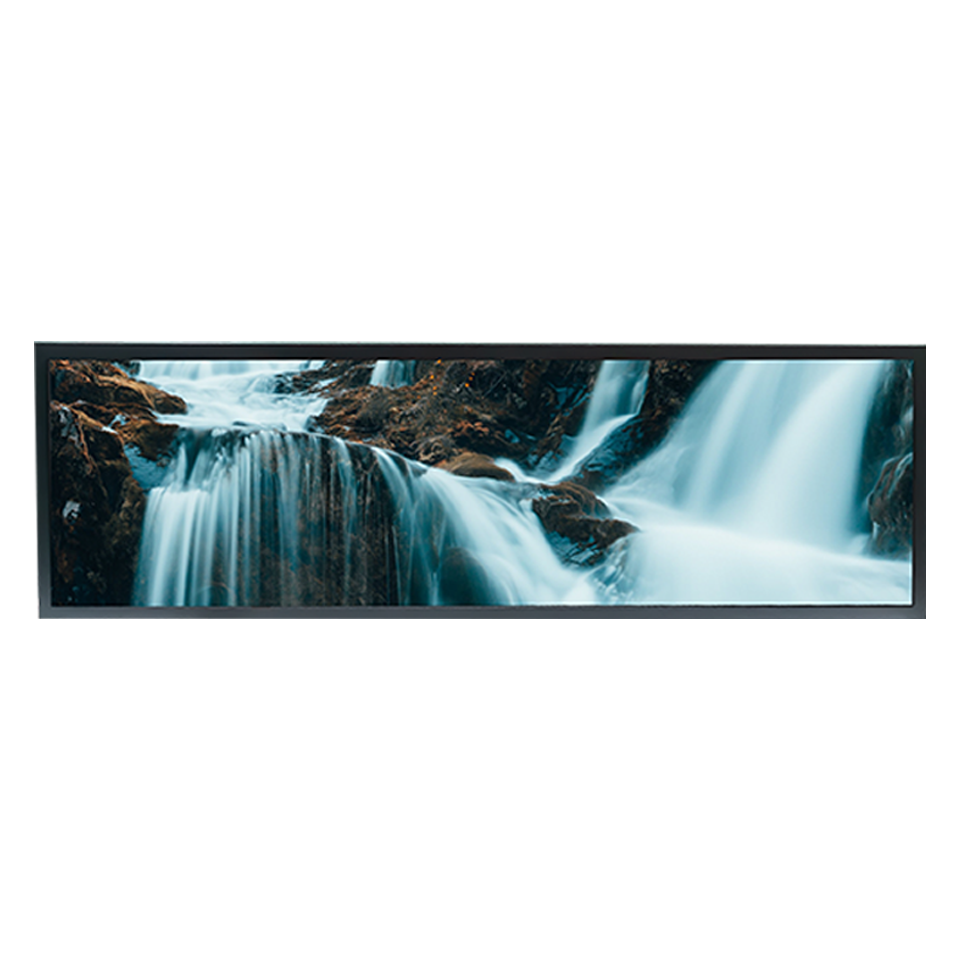

IPPS-4955-RKC3

49.5” Resizing LCD,1000 nits LED backlight, 3840 x 1080 ultra-wide aspect ratio 16:4.5
  •  Resizing LCD
  •  Ultra-Wide Screen (16 : 4.5)
  •  High Brightness 1000 nits
  •  LED Backlight
  •  Slim Bezel
  •  BL MTBF: 100,000 hours
Drucken
Anfrage Vergleich

Main Features

  • Transportation

  • Sunlight Readable

  • MTBF 100K

  • Digital Signage

INTRODUCTION Spezifikationen DOWNLOAD
The IPPS-4955-RKC3 is a 49.5 inch color TFT-LCD display with special aspect ratio 16:4.5 and wide resolution 3840 x 1080. It is Litemax’s Spanpixel series product which designed for high brightness 1000 nits with power efficiency LED backlight. It provides LCD panel with specific aspect ratios and sunlight readable for digital signage, public transportation, exhibition hall, department store, and vending machine.
Model Name IPPS-4955-RKC3-ZP00
LCD
Display Type 49.5” Resizing LCD, 1000 nits LED backlight
Display Area (mm) 1209.6(H) x 340.2(V)
Aspect Ratio 16:4.5
Resolution 3840 x 1080
Brightness 1000 nits
Color 1.07G
Pixel Pitch (H/V) 0.315(H) x 0.315(V)
Constrast Ratio 5000:1
Viewing Angle (H/V) 178°(H),178°(V)
Backlight MTBF (typ.) 100,000hrs
Size 49.5”
System
Chipset N/A
Memory 2GB DDR4
Graphic Mali-G52 GPU
Indicators N/A
Controls N/A
Processor Intel® Celeron® Processor 4305UE Dual Core (2M Cache, 2.0 GHz)
I/O 1 x LAN(10/100/1000), 2 x USB
OS Support Android 11
System I/O
USB 2 x USB
COM 1 x LAN
Power
Power Supply AC 110 ~ 240V input
LCD Power Consumption 150W
Environment
Operating Temperature 0 ˚C ~ 50 ˚C
Storage Temperature -20°C ~ 60°C
Relative humidity 0% ~ 90% (non-condensing)
IP level N/A
Mechanical
Construction SECC
Standard Color Black
Weight 4.3 kg
Dimensions 387.7 mm(W) x 260.2 mm(D) x 78.8 mm(H)
Mounting VESA 300 x 75, 650 x 100
