Digital Signage Display

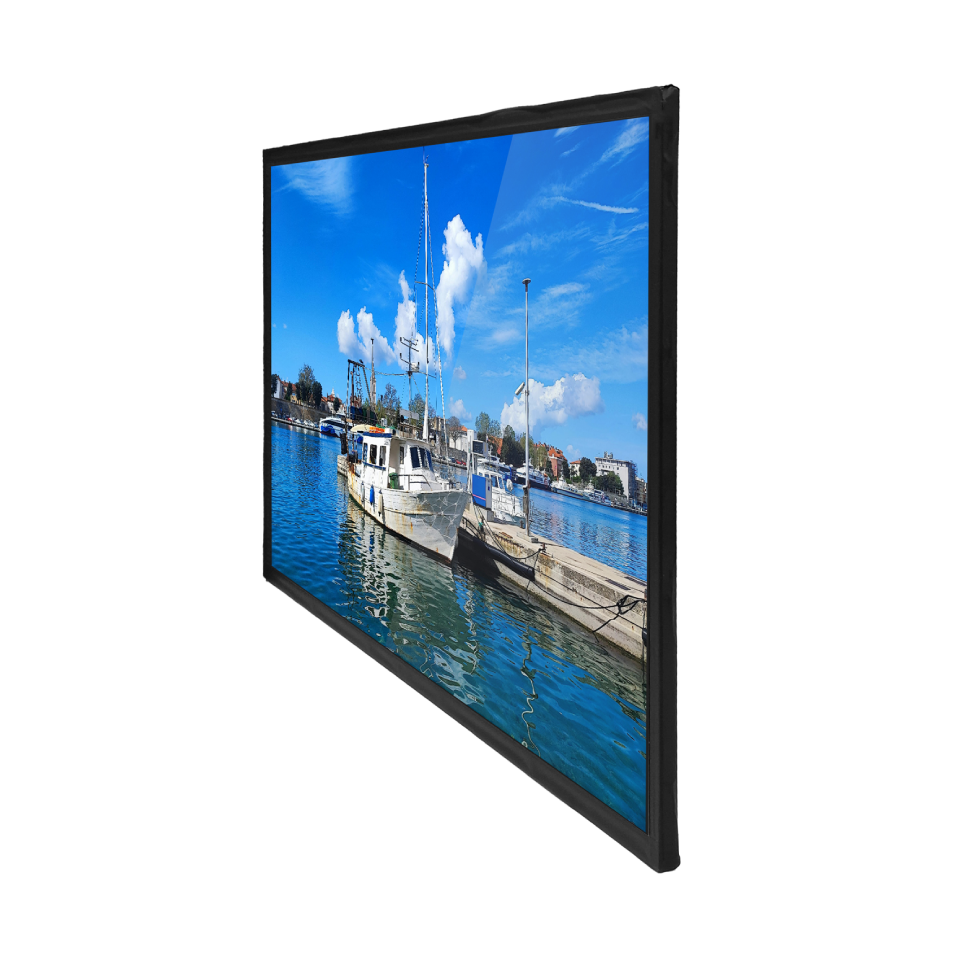

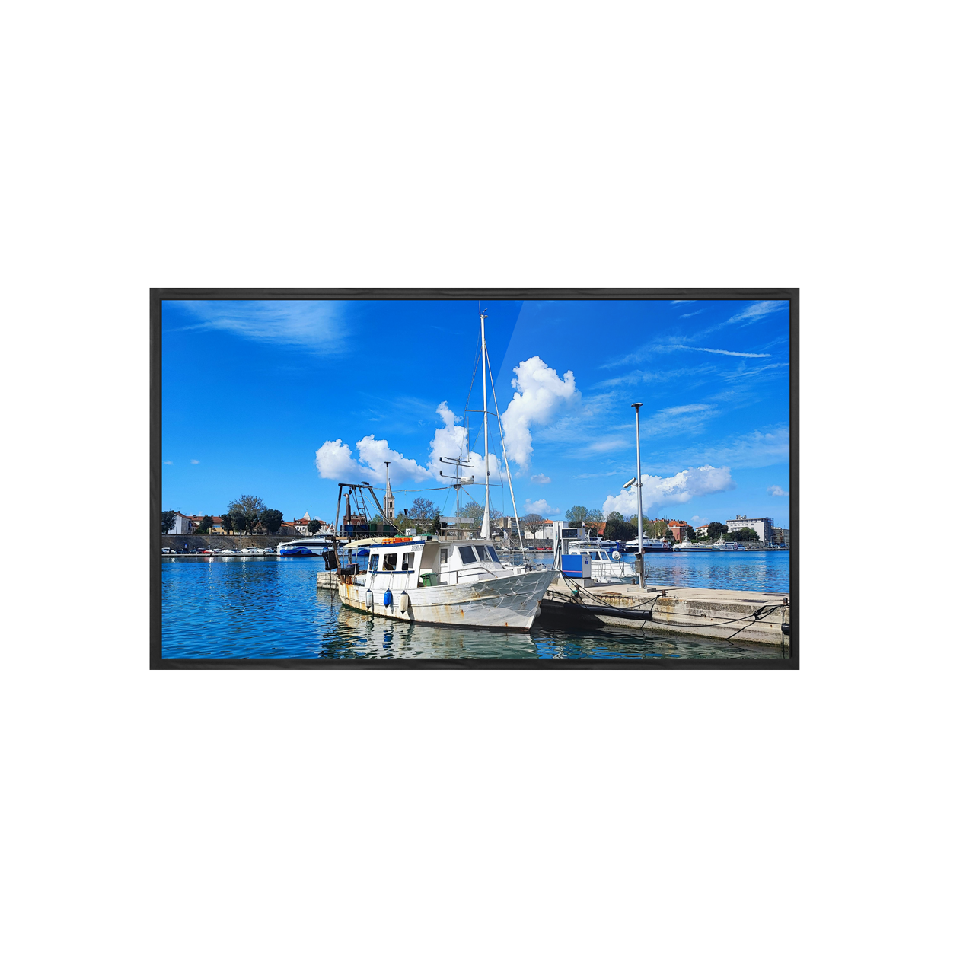

1563-K

15.6” TFT LCD, 500nits LED Backlight, 1920 X 1080
  • Brightness 500nits
  • Resolutions: 1920 x 1080
  • LED Backlight
  • Aspect ratio of 16:9
  • Low power consumption
  • BL MTBF: 30,000 hours
  • Projected capacitive touch (ULO1563-KHT)
IMPRIMER
DEMANDE COMPARER

Principales caractéristiques

  • Touch Screen

  • Low Power Consumption

INTRODUCTION Spécifications TÉLÉCHARGER
The 1563-K is a 15.6 inch industrial grade LCD, with brightness 500 nits, it produces sharp images, crisp text and lifelike colors. The Ubipixel LED backlight technology ensures high reliability and low power consumption, suitable for outdoor application, kiosk, factory automation, military, transportation and gaming application.
Model Name ULF1563-K ULH1563-K ULO1563-K ULO1563-KHT
Description 15.6” TFT LCD, 500 nits LED Backlight, 1920 x 1080 15.6” TFT LCD, 500 nits LED Backlight, 1920 x 1080, Projected Capacitive Touch
Size 15.6”
Display area (mm) 344.16(H) x 193.59(V)
Brightness 500 cd/m²
Resolution 1920x1080
Aspect ratio 16:9
Contrast ratio 1100 : 1 1200 : 1
Pixel pitch (mm) 0.17925(H) x 0.17925 (V)
Pixel per inch (PPI) 141
Viewing angle 170° (H), 170° (V)
Color saturation (NTSC) 82%
Display colors 16.7M
Response time (Typical) 30ms
Panel Interface eDP
Input Interface HDMI,DP
Touch Interface   USB
Input power DC 12V
Power consumption 4.3W 7.3W
Dimensions (mm) 360.1 x 212.55 x 7.33 362.7 x 214.9 x 45 368.6 x 231.9 x 45.5
Bezel size (U/B/L/R) 8.55/10.41/6.76/9.18 mm 10.6/10.7/8.1/10.4 mm 12.2/26.1/12.2/12.2 mm
Weight (Net) 1.7Kg 2Kg 2.5Kg
Mounting   100 x 100
OSD key 4 Keys (Power Switch, Menu, +, -)
OSD control Brightness, Color, Contrast, Auto Turing, H/V Position…etc
Operating temperature 0 ˚C ~ 50 ˚C
Storage temperature -20°C ~ 60°C
