Accueil / Produit / Affichage industriel / Ubipixel™-Industrial High Brightness LCDs / 1855-M

Digital Signage Display

1855-M

18.5” TFT LCD, 1000 nits LED Backlight, 1920x1080
  • High Brightness 1000 nits
  • Sunlight Readable
  • Resolution: 1920 x 1080
  • Pcap Multi Touch (ULO1855-MHT)
  • Low Power Consumption
  • BL MTBF: 20,000 hours
IMPRIMER
DEMANDE COMPARER

Principales caractéristiques

  • Sunlight Readable

  • Low Power Consumption

INTRODUCTION Spécifications TÉLÉCHARGER

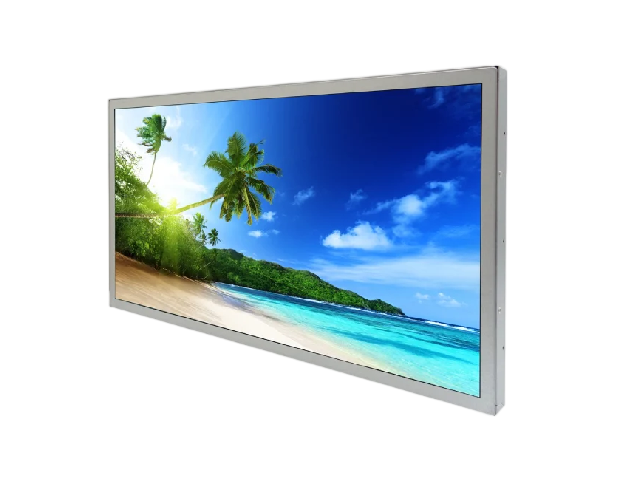

The 1855-M is a 18.5 inch industrial grade sunlight readable LCD as well as the project capacitive touch function for ULO1855-MHT model, with high brightness 1000 nits, it produce sharp images, crisp text and lifelike colors. The Ubipixel LED backlight technology ensures high reliability and low power consumption, suitable for outdoor application, kiosk, factory automation, military, transportation and gaming application.
Model Name ULF1855-M ULH1855-M ULO1855-MHT
Description 18.5” TFT LCD, 1000 nits LED Backlight, 1920x1080
size 18.5”
Display area (mm) 408.96(H) x 230.04(V)
Brightness 1000 cd/m²
Resolution 1920x1080
Aspect ratio 16:9
Contrast ratio 900:1
Pixel pitch (mm) 0.213(H) x 0.213(V)
Pixel per inch (PPI) 119
Viewing angle 178°(H),178°(V)
Color saturation (NTSC) 83%
Display colors 16.7M
Response time (Typical) 14ms
Panel interface LVDS
Input interface VGA, DVI-D, HDMI
Touch interface   USB
Input power DC12V
Power consumption 24W 27W
Dimensions (mm) 430.37 x 254.60 x 11.50 443.4 x 274.0 x 50.5
Bezel size (U/B/L/R) 12.28/12.28/10.71/10.71 mm 22.0/22.0/17.2/17.2 mm
Weight (Net) 1.5 kg 3.73 kg
Mounting   75 x 75, 100 x 100mm
OSD key 4 Keys (Power Switch, Menu, +, -)
OSD control Brightness, Color, Contrast, Auto Turing, H/V Position…etc
Operating temperature -10 ˚C ~ 60 ˚C
Storage temperature -20 ˚C ~ 60 ˚C
