Digital Signage Display

ITRP-2155-EHL1-ZG00-2001

21.5” TFT LCD, LED Backlight 1600nits, FHD(1920x1080)
  • High Brightness 1000 nits
  • Sunlight Readable
  • Celeron® J6412 (2.0GHz/2.6GHz,QC,16EU, 10W)
  • Low Power Consumption
  • Wide View Angle
  • 10mm P4 Glass
  • EN50155 & EN45545
  • BL MTBF: 100,000 hours

主な特長

  • Transportation

  • Low Power Consumption

  • Kiosk

  • Gaming

  • Automation

Model Name ITRP-2155-EHL1-ZG00-2001
 Description 21.5” TFT LCD, LED Backlight 1000 nits, 1920x1080
Screen Size 21.5”
 Display Area (mm) 476.06(H) x 267.79(V)
 Brightness 1000 cd/m2
 Resolution  1920x1080
 Aspect Ratio  16 : 9
Contrast Ratio  3000 : 1
 Pixel Pitch (mm)  0.24795(H) x 0. 24795(V)
 Viewing Angle  178°(H),178°(V)
Input Interface HDMIx1、USB3.0x1、LAN(M12)x1、Power(M12)x1
 CPU Celeron® J6412 (2.0GHz/2.6GHz,QC,16EU, 10W)
 OS Win10 Iot、Linux
RAM 4GB DDR4
Storage  128GB M.2 SSD
Light sensor Auto Light Sensor
 Input Power DC 17~31V \34~63V/ 67~143V input
 Glass 10mm P4 Glass
Power Consumption 50W
 IP Level Front IP65
 Dimensions (mm) 556 x 344.5 x 63 mm
Weight (Net) 10.5 KG
 Mounting Wall Mount、VESA 75x75
 Operating Temperature -25 ˚C ~ 55 ˚C
 Storage Temperature  -25˚C ~ 60 ˚C

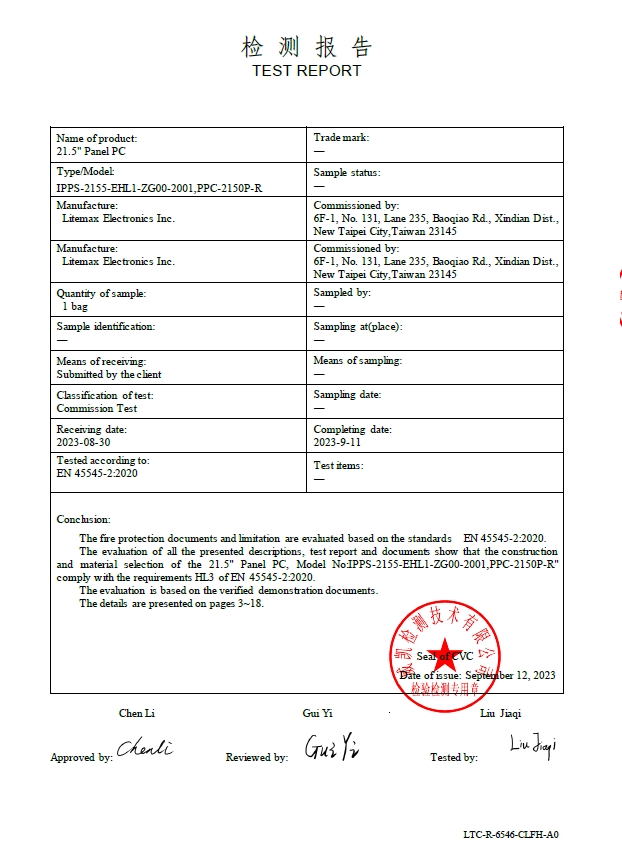

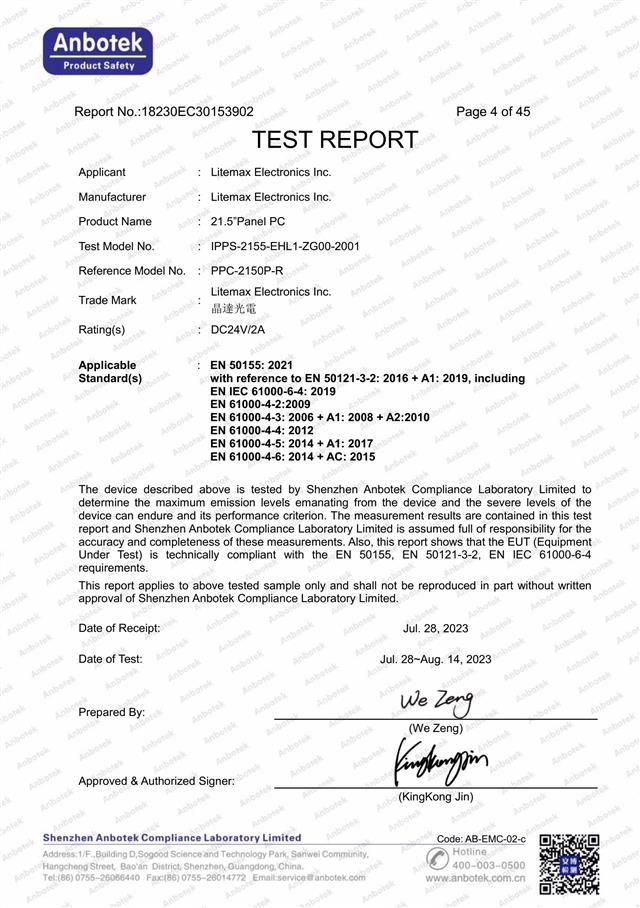

Certification EN50155、EN45545
