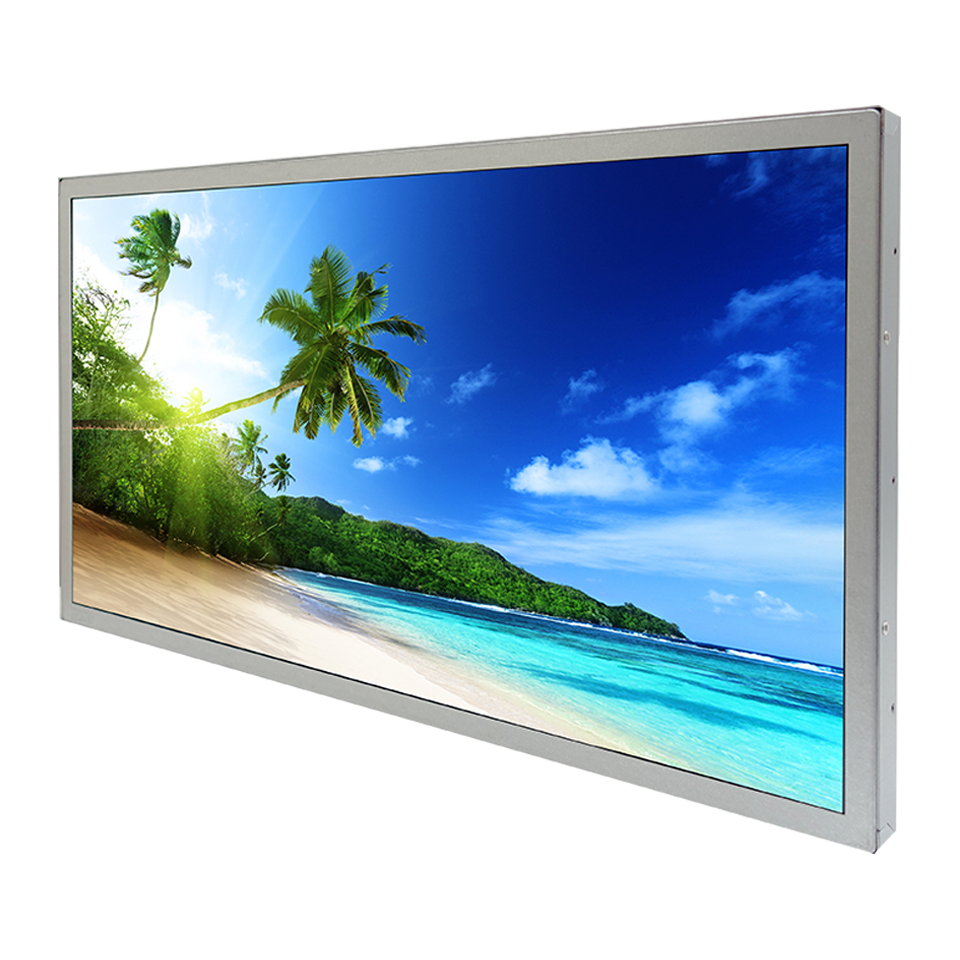

Industrial LCD Monitor

1853-A

18.5” TFT LCD, 350 nits LED Backlight, 1920x1080
  • High Brightness 500 nits
  • Sunlight Readable
  • LED Backlight
  • Wide Temperature (-20 ˚C ~70 ˚C)
  • Low Power Consumption
  • BL MTBF: 50,000 hours
Model Name ULF1853-A ULH1853-A ULO1853-A
Description 18.5” TFT LCD, 500 nits LED Backlight, 1920x1080
size 18.5"
Display area (mm) 408.960(H) x 230.040(V)
Brightness 500 cd/m²
Resolution 1920x1080
Aspect ratio 16 : 9
Contrast ratio 1100 : 1
Pixel pitch (mm) 0.213(H) x 0.213(V)
Pixel per inch (PPI) 119
Viewing angle 178°(H),178°(V)
Color saturation (NTSC) 84%
Display colors 16.7M
Response time (Typical) 20ms
Video interface LVDS VGA, DVI-D, HDMI
Input power   DC 12V
Power consumption 15.2W 21.2W
Dimensions (mm) 430.40 x 254.79 x 12.00  433 x 257.2 x 47.1
Bezel size (U/B/L/R) 12.468/12.280/10.720/10.720 13.6/13.6/12/12
Weight (Net) 1.5  kg 2.5 kg
Mounting   VESA 75 x 75, 100 x 100
OSD key   4 Keys (Power Switch, Menu, +, -)
OSD control   Brightness, Color, Contrast, Auto Turing, H/V Position…etc
Operating temperature -20 ˚C ~ 70 ˚C
Storage temperature -20 ˚C ~ 70 ˚C
