Mini-ITX Embedded Boards

AMIX-CML0

Mini-ITX Motherboard with LGA1200 Socket for 10th Gen Intel® Core™ i9/i7/i5/i3/ Pentium®/Celeron® Processors, HDMI/ DP/DVI-I/LVDS(co-lay with eDP/VGA), 4 SATA III, 4 COM, 12 USB, Dual Intel® GbE LAN
  • Intel® 10th Generation Core™ i9/i7/i5/i3 /Pentium®/Celeron® series processor (LGA1200 socket) with Q470E/H420E chipset
  • Two 260-pin SO-DIMM up to 32GB DDR4 2933MHz SDRAM
  • Multi-Display: HDMI/DP/DVI-I/VGA/LVDS (co-lay with eDP)
  • Two Intel® Gigabit Ethernet ports
  • 1 xPCIe (x16), 1 x Mini-PCIe, 2 x M.2 M-key 2280
  • 4 x SATA III, 4 x COM, 10x USB 3.2 Gen. and 2 x USB 2.0
  • Supports 4K/2K resolution display
  • ATX Power support
  • Supports Intel vPro, AMT technologies

Main Features

  • Quad Display

  • Multi Tasking

  • 4K Stream

Mini-ITX Embedded Board Featuring 10th Gen Intel® Core™ for Faster Multi-tasking

AMIX-CML0, the latest addition to its family of Mini-ITX form factor embedded boards. Based on Intel's latest Q470E and H420E chipsets, the board is designed to accommodate 10th Gen Intel® Core™ processors (codename Comet Lake-S) in LGA 1200 package with a Thermal Design Power (TDP) of up to 65W. Supporting two 260-pin SO-DIMM DDR4 2933/2666/2400 up to 64GB of memory, the new AMIX-CML0 enables smooth, responsive performance for faster multitasking and productivity to fit the needs of demanding applications such as AIoT industrial automation, machine vision, smart factory, and intelligent transportation.



UP TO

31%

Integer Multi-tasking Computing Performance Improvement

UP TO

2X

Faster 4K Content Streaming

UP TO

65W

LGA 1200 Package with Thermal Design Power

Up to 31% better integer multi-tasking computing performance improvement

Up to 31% better integer multi-tasking compute intensive application performance, AMIX-CML0 can deliver smooth and real-time 4K content streaming on multi displays, via HDMI, DisplayPort, DVI-I, eDP or 24-bit LVDS interface and VGA.  In addition, the motherboard supports iAMT 12.0 technology for remote management and computer platform integrity functions.

High performance and stability to satisfy the requirements

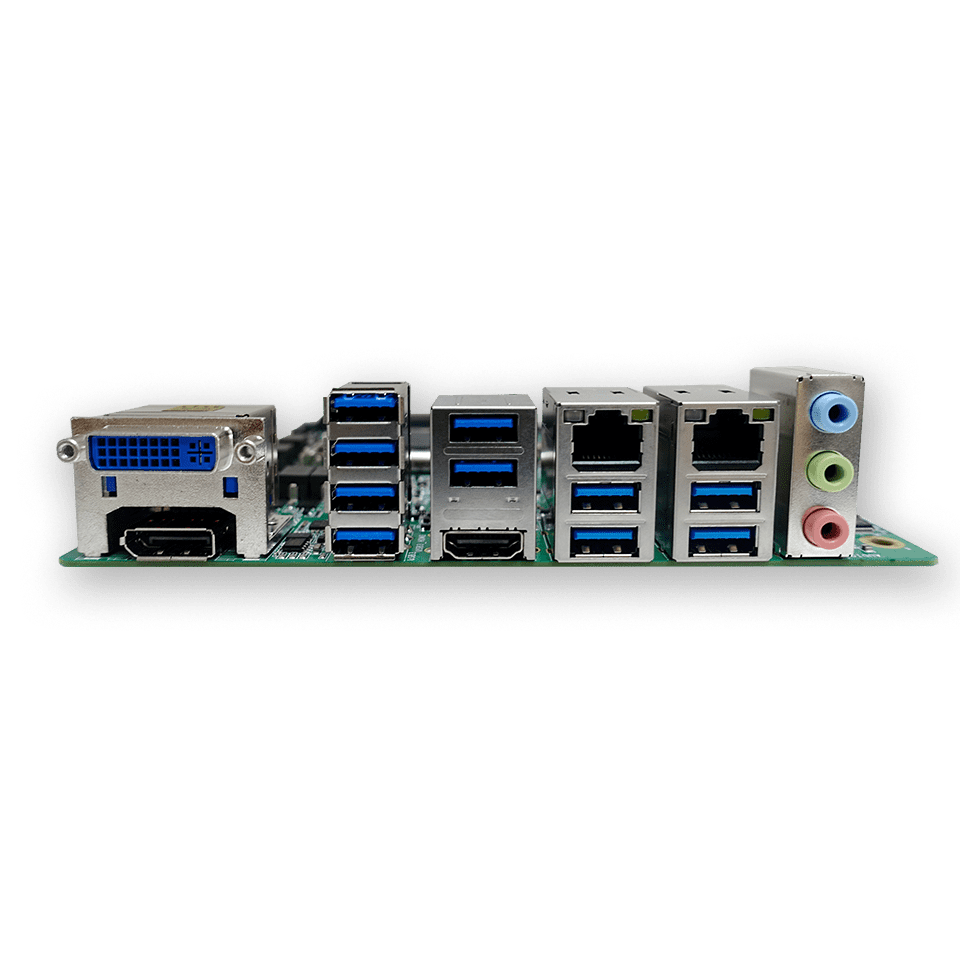

Built to provide high performance and stability to satisfy the requirements in various environments, the AMIX-CML0 boasts a wide range of I/O and rich expansion, including 1x PCI Express x16 and multiple M.2 slots for wireless connectivity, storage and increased functionality in a wide range of applications.  It also features two Gigabit LAN, ten USB 3.2 (Gen1), two USB 2.0, four COM, and four SATA III ports.

Application

Industrial Automation

LITEMAX© provides a series of products and solutions for the field of industrial automation. Among them, the high performance and stability of industrial computer products are what we are proud of. They are specifically designed for industrial control, factory automation, communications, power management, and equipment in various industrial sites. Litemax provides value-added products and solutions helping customers to embrace Industry 4.0.

Transportation

LITEMAX© Transportation Solutions are a cost-effective and flexible way to integrate LCD displays and fanless box PCs to meet customers' needs. The bundle solution comprises all necessary components - an open/closed frame monitor and an advanced ultra-slim fanless box PC, integration brackets, and necessary software support.

Smart City

With the advent of smart cities, various edge computing and data collection are extremely important. LITEMAX© plays the role of edge computing and terminal display information in smart cities can be used as terminal applications for smart cities. Through various industrial computers, multimedia displays and camera applications, we provide big data collection and build the foundation of smart cities.

Model name AMIX-CML0
Form Factor Mini-ITX
Dimensions (L)x(W)mm 170mm x 170mm (6.69" x 6.69")
Processor Intel® 10th Gen Core™ i9/i7/i5/i3/Penitum®/Celeron® processors (LGA1200). (max. TDP 65W)
Chipset Intel® Q470E or H420E
BIOS AMI SPI Flash ROM
LAN Controller Intel® I219LM + i211 GbE
Audio Codec Realtek ALC888S
Watchdog Timer Yes
Memory
Technology DDR4 SDRAM 2933MHz
Max. Capacity up to 64GB (32GB per DIMM)
Socket 2 x 260-pin SO-DIMM
Display
Graphic Intel® UHD Graphics 630
Display Interface DP, HDMI, DVI-I, LVDS (Dual channel 18/24-bit, eDP/VGA co-lay)
I/O
Expansion Slot 1 x PCIe (x16)
1 x Full-Size Mini-PCIe with SIM card supported
1 x M.2 M-key 2280 (NVME/SATA/PCIe)1 x M.2 M-key 2280 (PCIe)
LAN 2 x 10/100/1000 Mbps
Serial ATA 4 x SATA III
Audio Line-in, Line-out, Mic-in
USB 10 x USB 3.2 Gen. 1(Q470E)
6 x USB 3.2 Gen. 1(H420E) 2 x USB 2.0 (box-header)
COM 3 x RS-232, 1 x RS-232/422/485
Display DP, HDMI, DVI-I, LVDS (Dual channel 18/24-bit, co-lay eDP/VGA)
Digital I/O 4-in/4-out
SMB N/A
PS/2 N/A
Power Requirement
Power connector ATX (20P+4P)
Power Type ATX
Power Mode ATX
Environment
Storage Temperature -20°C ~ 80°C (-4°F ~ 176°F)
Relative Humidity 0% ~ 95% (non-condensing)
Operating Temperature 0°C ~ 60°C (32°F ~ 140°F)
