Mini-ITX Embedded Boards

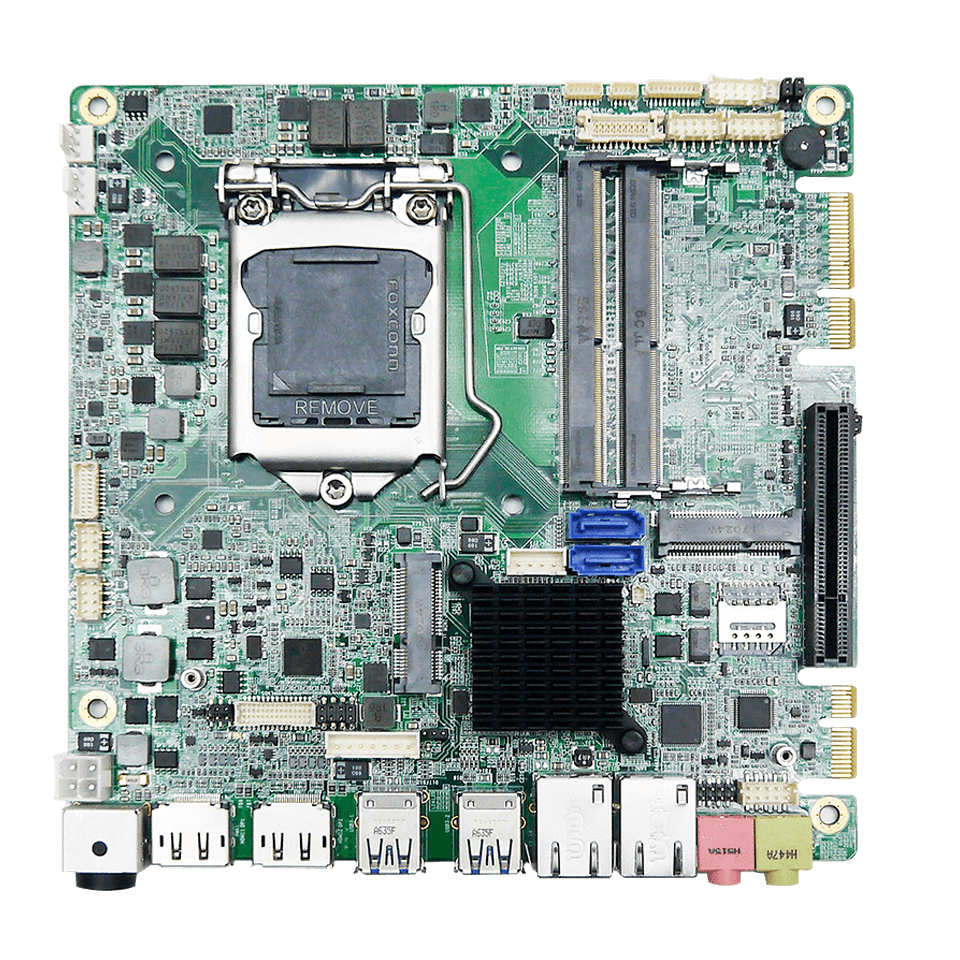

AMIX-KBL5

Mini-ITX Motherboard with LGA1151 Socket for 6th/7th Gen Intel® Core™ i7/i5/i3/ Celeron® Processors, HDMI/ DP/iDP/LVDS(eDP), 2 SATA III, 2 COM, 8 USB, Dual Intel® GbE LAN
  • LGA1151 Intel® 6th/7th Gen Core™ i7/i5/i3/ Celeron® processors
  • Intel® Q170/H110 chipset
  • Two 260-pin SO-DIMM up to 32GB DDR4 2133MHz SDRAM
  • Muti-Display: HDMI/DP/iDP/LVDS(eDP)
  • Two Intel® Gigabit Ethernet ports
  • 1 PCIe (x8), 2 Mini-PCIe (1 combo mSATA, 1 w/ micro-SIM) expansion slots
  • 2 SATA III, 2 COM, 4 USB 3.0 and 4 USB 2.0
  • EuP/ErP 2013 Ready
  • Support Intel® AMT v11.0 (w/ Q170) and TPM v1.2/v2.0 (optional)

Main Features

  • Multi Display

Model name AMIX-KBL5
Form Factor Mini-ITX
Dimensions (L)x(W)mm 170mm x 170mm (6.69" x 6.69")
Processor Intel® 6th/7th Gen Core™ i7/i5/i3/Celeron® processors (LGA1151)
Chipset Intel® Q170/H110 PCH
BIOS AMI UEFI Flash ROM
LAN Controller LAN 1: Intel® I219LM GbE with iAMT 11.0 (only Q170 w/ i7/i5 supports)
LAN 2: Intel ®I210 GbE
Audio Codec Realtek ALC662 HD
Watchdog Timer Yes
Memory
Technology DDR4 2133MHz SDRAM
Max. Capacity Up to 32GB
Socket 2 x 260 Pin SO-DIMM
Display
Graphic Intel® HD Gen. 9 Graphics
Display Interface HDMI, DP, iDP, LVDS (Dual channel 18/24-bit) (co-layout eDP)
I/O
Expansion Slot 1 x PCIe x8
1 x PCIe x1 & 1 x PCIe x4 (extension bus for PCIe signal)
LAN 2 x 10/100/1000 Mbps
Serial ATA 2 x SATAIII
Audio Line-out, Mic-in
USB 4 x USB 3.0, 4 x USB 2.0
COM 1 x RS-232, 1 x RS-232/422/485
Display 1 x HDMI, 1 x DP, 1 x iDP interface, 1 x LVDS (co-layout eDP)
Digital I/O 1 x 16-bit programmable GPIO
SMB 1 x SMBus
PS/2 1
Power Requirement
Power connector 1 x ATX (2x2-pin), 1 x DC-Jack 4-pin
Power Type DC-in 12V
Power Mode AT/ATX (by jumper selection)
Environment
Storage Temperature -20°C ~ 80°C (-4°F ~ 176°F)
Relative Humidity 0% ~ 95% (non-condensing)
Operating Temperature 0°C ~ 60°C (32°F ~ 140°F) standard
-20°C ~ 70°C ( -4°F ~ 158°F) optional
-40°C ~ 70°C (-40°F ~ 158°F) optional
