Home / Product / Industrial Display / Custom LCD Displays / DPD1333-BTE-T11

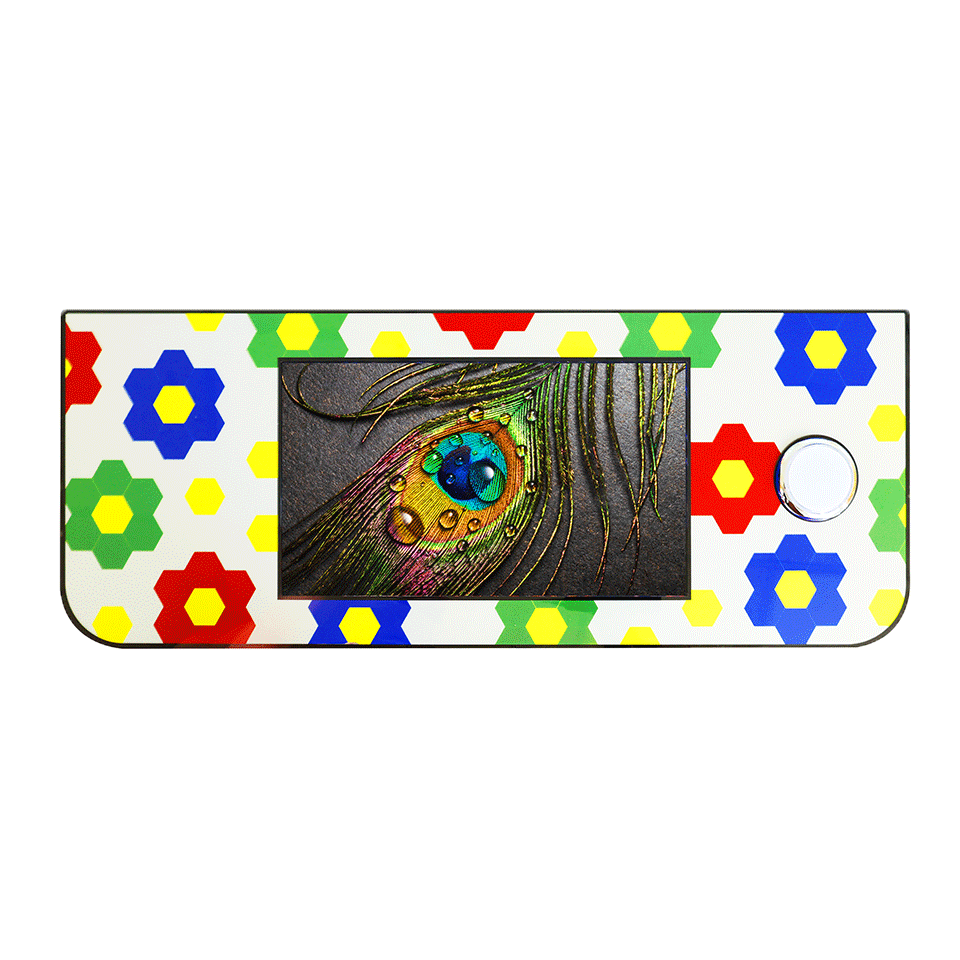

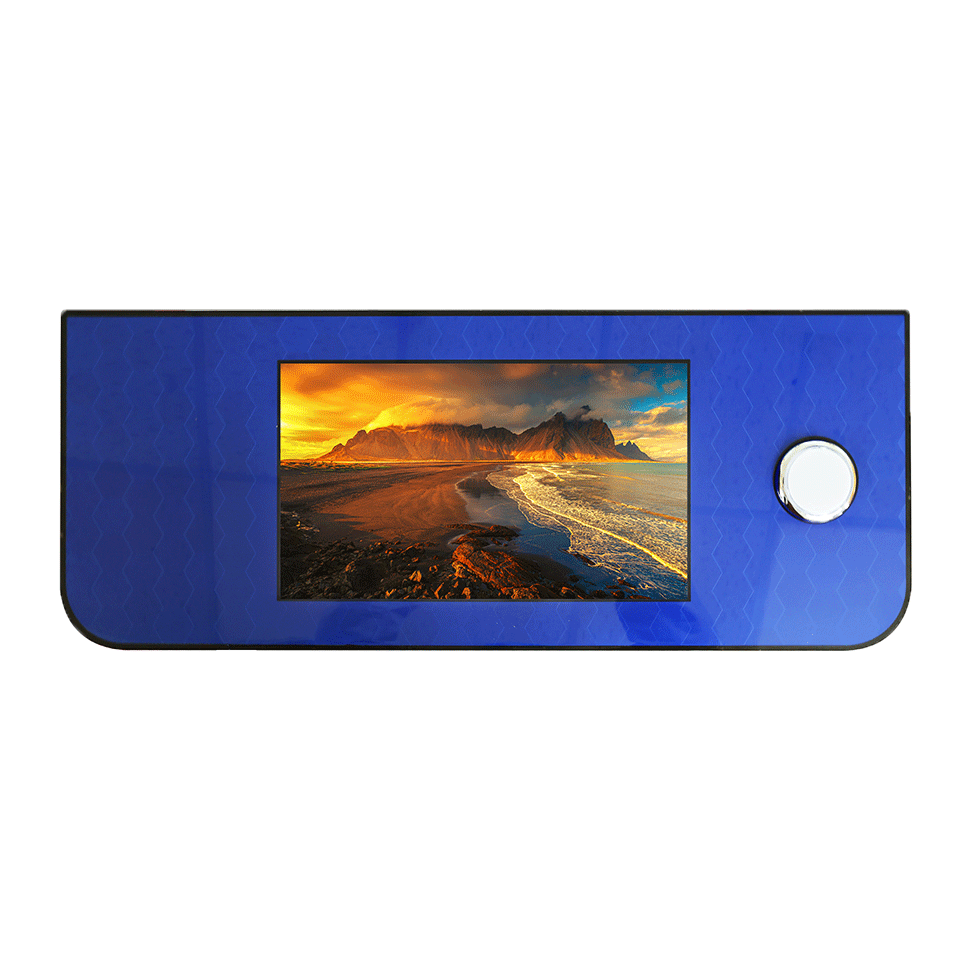

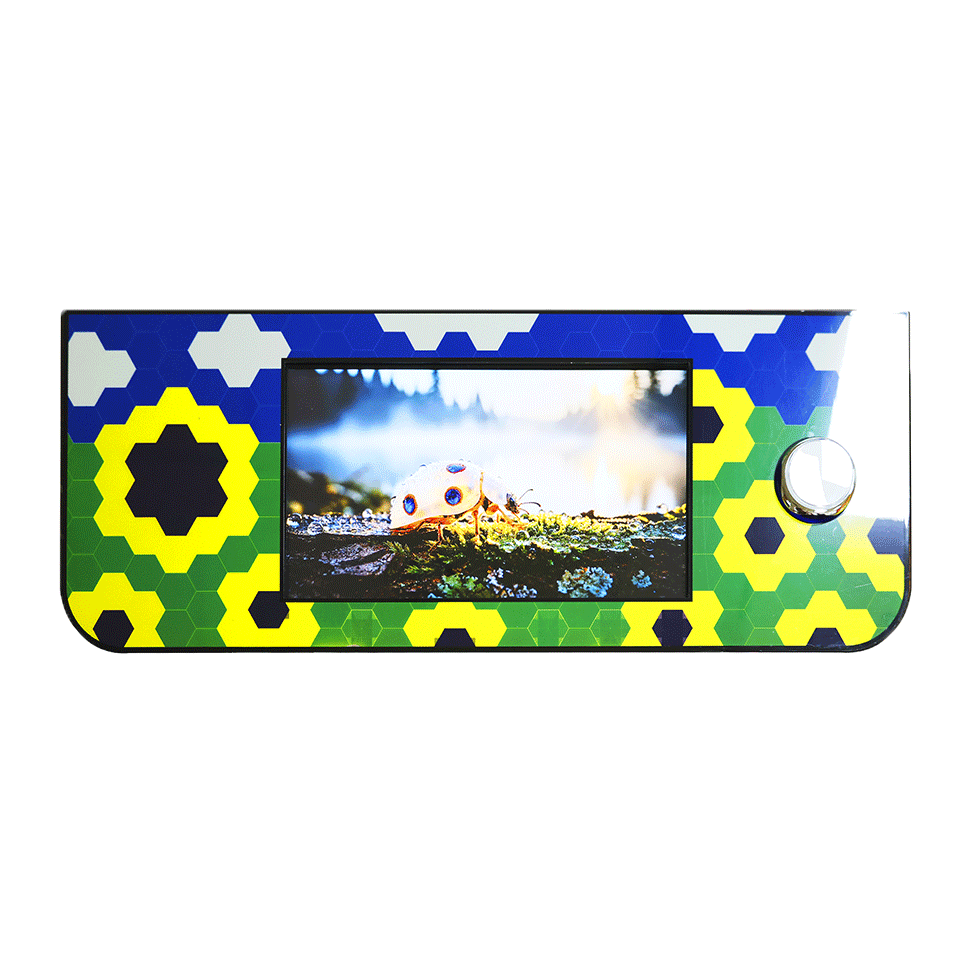

13.3" TFT LCD, Hybrid Display

DPD1333-BTE-T11

13.3” TFT LCD, 500 nits LED Backlight, 1920x1080, PCAP Touch, Eink Prism, Dual Display
  • Panel Size 13.3”
  • Resolution 1920x1080
  • Brightness 500 nits
  • PCAP Multi-Touch
  • Eink Prism (customize pattern)
  • 6 colors: Black, White, Red, Green, Blue & Yellow
  • Low Power Consumption
PRINT
INQUIRY COMPARE

Main Features

  • Gaming

INTRODUCTION SPECIFICATION Download
The DPD1333-B is a 13.3 inches LCD, with high brightness 500 nits, it produced sharp images, crisp text and lifelike colors. High reliability and low power consumption, suitable for Gaming application.
Model name DPD1333-BTE-T11
Description 13.3” TFT LCD, 500 nits LED Backlight, 1920x1080, PCAP Touch,
Eink Prism, Dual Display
Size 13.3”
Display area (mm) 293.76(H) x 165.24(V)
Brightness 500 cd/m²
Resolution 1920x1080
Aspect ratio 16 : 9
Contrast ratio 800: 1
Pixel pitch (mm) 0.153(H) x 0.153 (V)
Pixel per inch (PPI) 166
Viewing angle 170°(H),170°(V)
Color saturation (NTSC) 50%
Display colors 16.7M
Response time (Typical) 30ms
Video interface HDMI, Display Port
Input power DC12V
Touch PCAP 10 points
Power consumption 6W
Dimensions (mm) 617x 240.5 x 37.6
Weight (Net) 4kg
Operating temperature 0 ˚C ~ 50 ˚C
Storage temperature -20 ˚C ~ 60 ˚C

Download
