Industrial LCD Monitor

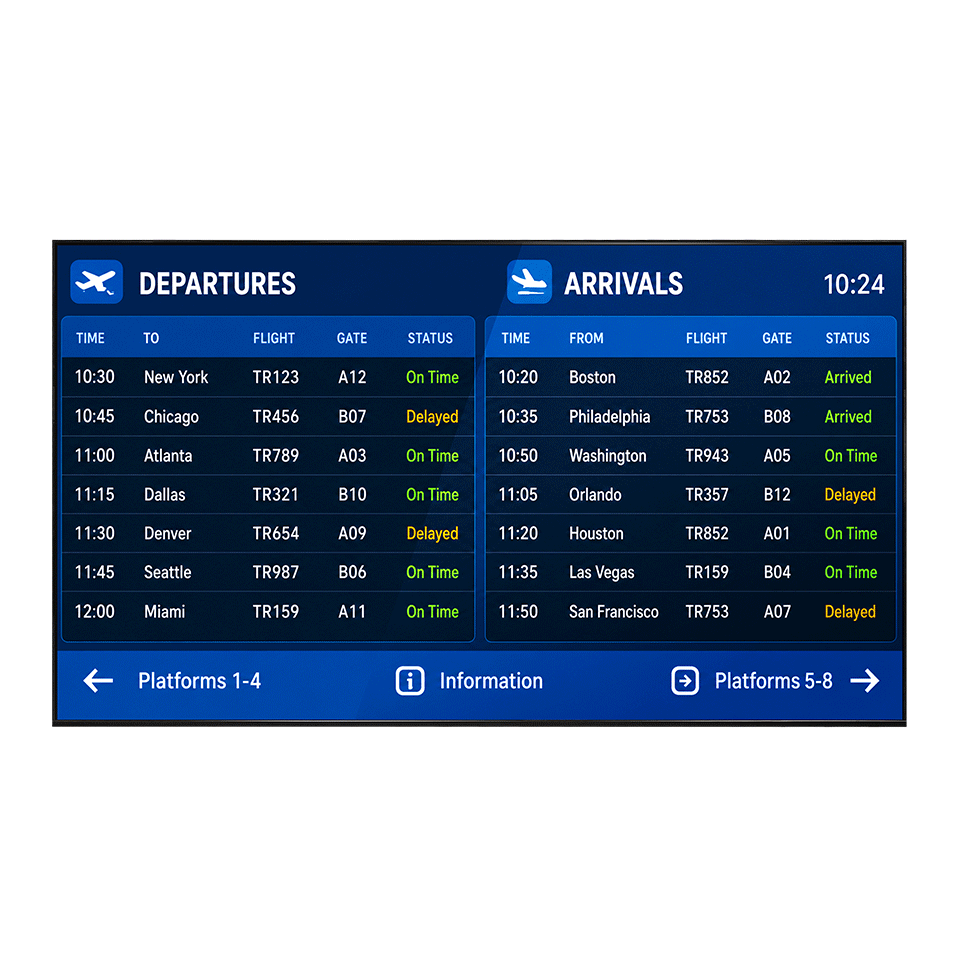

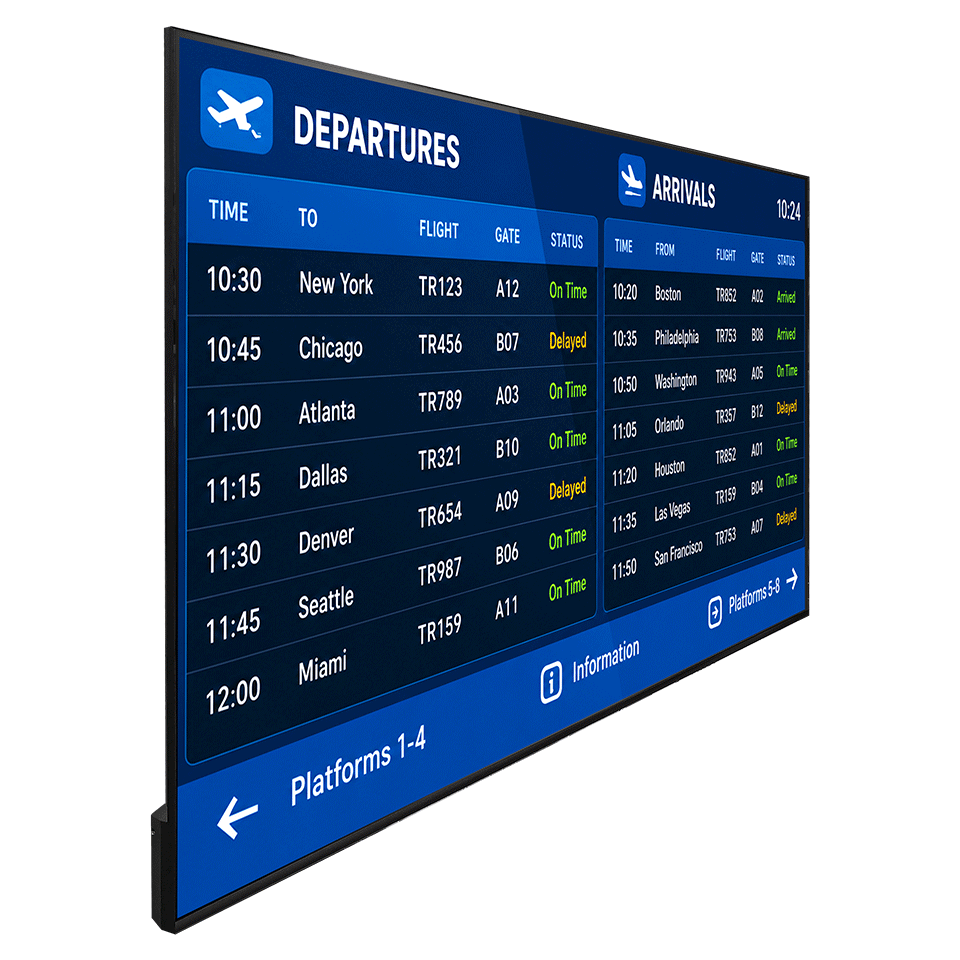

UPO1002-M

100” TFT LCD, 400nits LED Backlight, 3840 X 2160
  • Brightness 400nits
  • Resolutions: 3840 x 2160
  • LED Backlight
  • Aspect ratio of 16:9
  • Low power consumption
PRINT
INQUIRY COMPARE

Main Features

  • Wide Viewing Angle

  • USB

  • Transportation

  • Low Power Consumption

  • Kiosk

  • Gaming

  • Digital Signage

  • 4K

INTRODUCTION SPECIFICATION Download
The UPO1002-M is a 100 inch industrial grade LCD, with brightness 400 nits, it produces sharp images, crisp text and lifelike colors. The Ubipixel LED backlight technology ensures high reliability and low power consumption, suitable for indoor application, kiosk, factory automation, military, transportation and gaming application.
Model Name UPO1002-M
Description 100” TFT LCD, 400 nits LED Backlight, 3840 x 2160
size 100”
Display area (mm) 2203.2(H) x 1239.3(V)
Brightness 400 cd/m2
Resolution 3840 x 2160
Aspect ratio 16:9
Contrast ratio 5000 : 1
Pixel pitch (mm) 0.57375(H) x 0.57375(V)
Pixel per inch (PPI) 44
Viewing angle 178°(H),178°(V)
Color saturation (NTSC) 72%
Display colors 1.07B
Response Time (Typical) 8ms

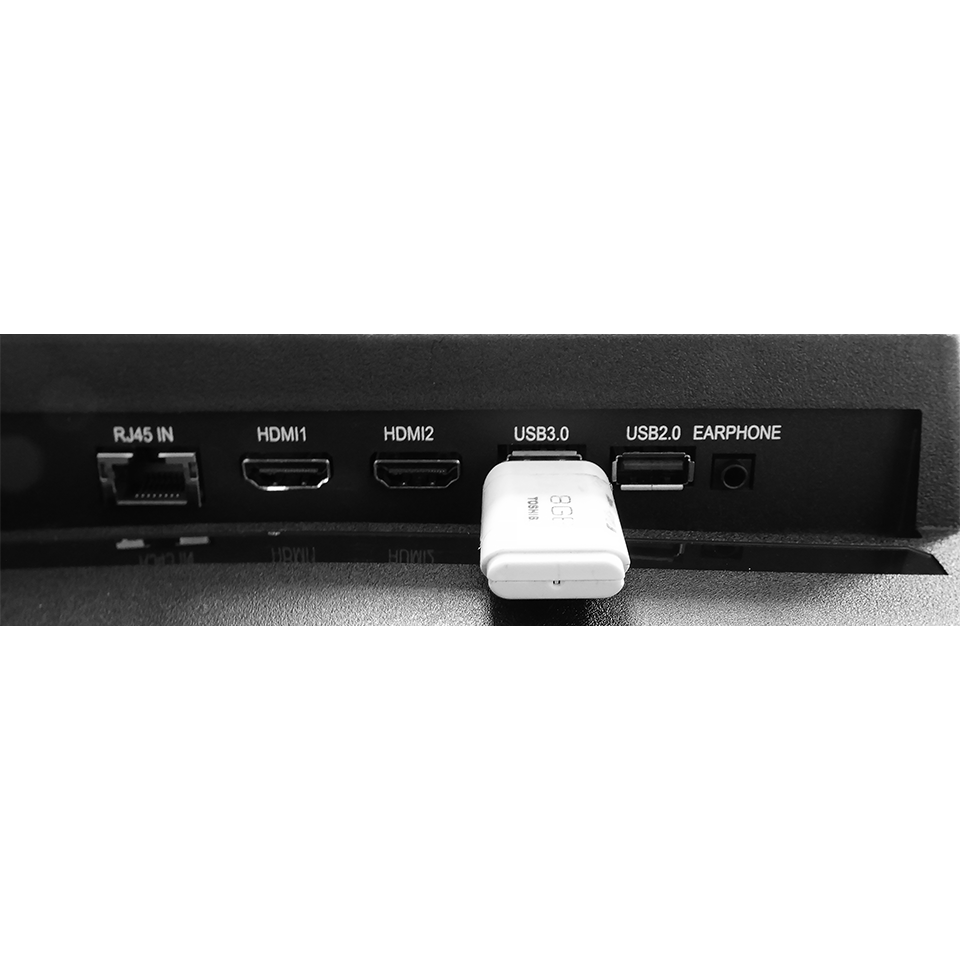

Onboard Interface HDMI x1, HDMI ARC x1, USB 3.0 x1, USB 2.0 x1, RJ45 x1, Earphone x1
Input power AC100~240V
Power consumption 360W

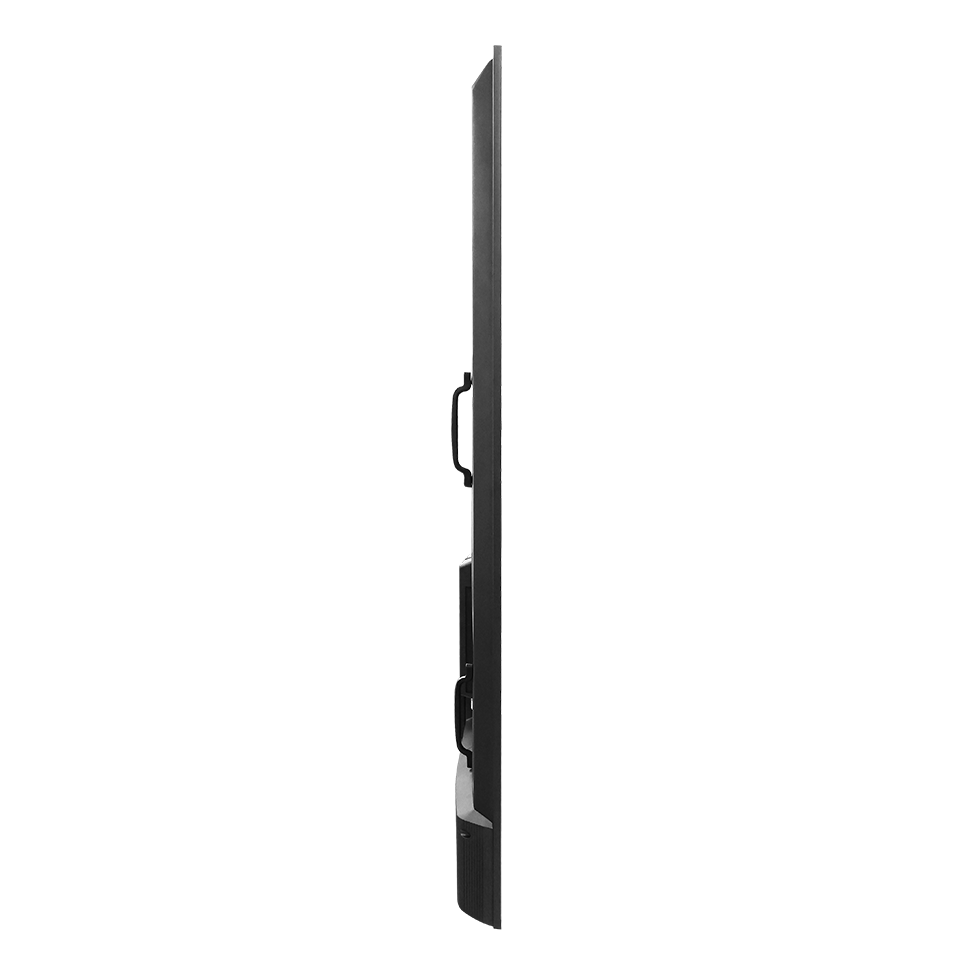

Dimensions (mm) 2227.4(W) x 1270.65(H) x 87(D)
Weight (Net) 50Kg

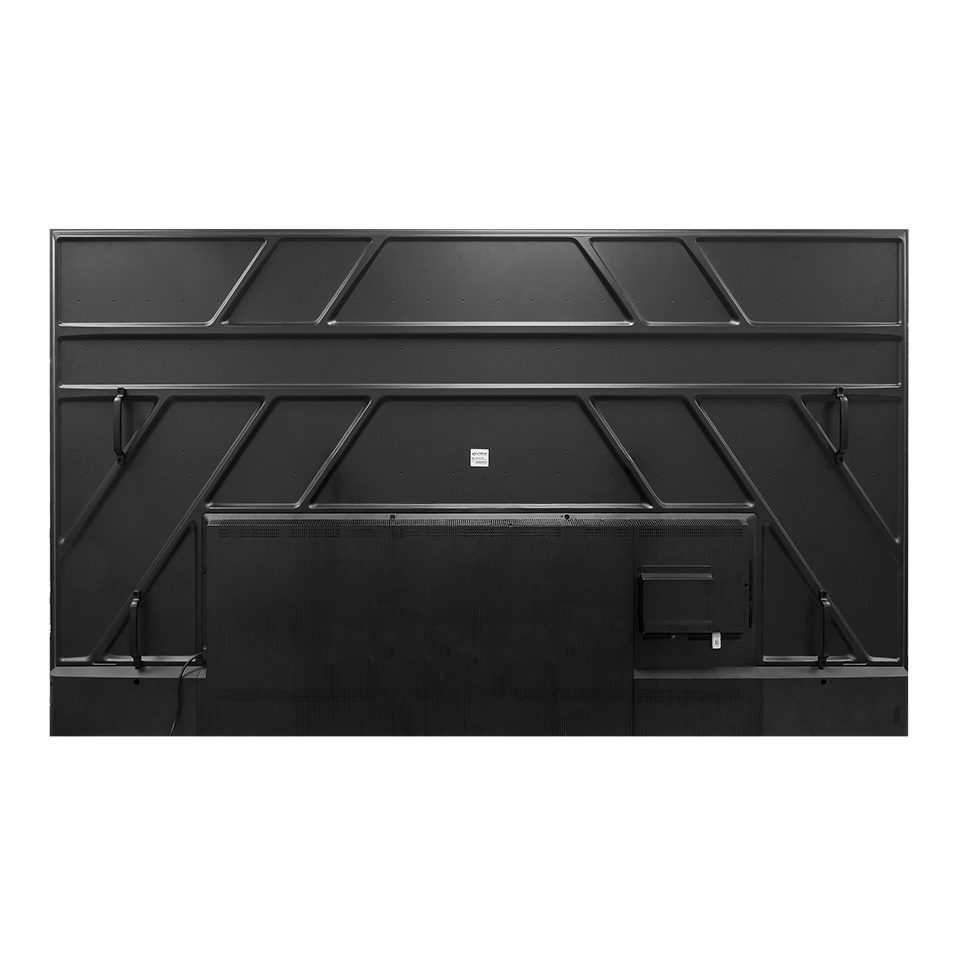

Mounting 800x400mm
Operating temperature 0 ˚C ~ 40 ˚C
Storage temperature -20°C ~ 60°C
