Home / Product / Industrial Computing / Boards & Modules / 3.5" Single Board Computers / AECX-MTL0

3.5" Single Board Computers

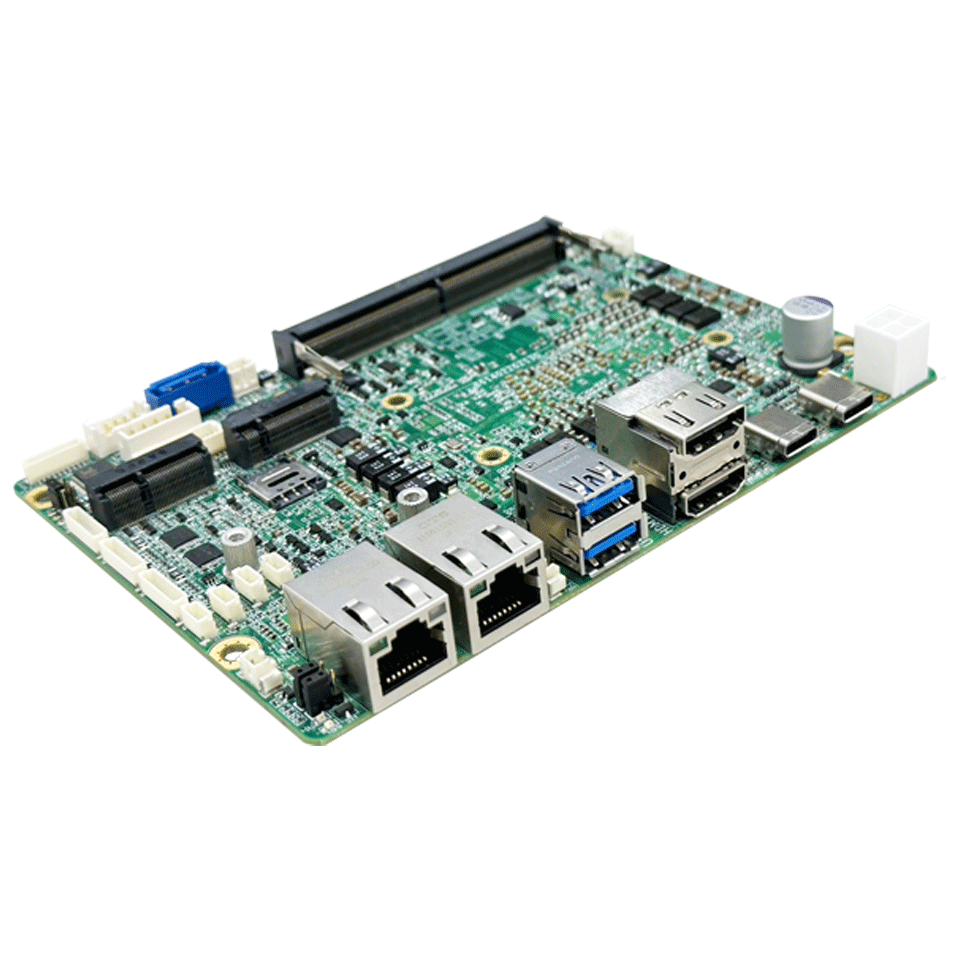

AECX-MTL0

Intel® Core™ Ultra 7 / Ultra 5 Series SoC based 3.5" Embedded Board
with 2 HDMI / 2 USB-C (with DP) / LVDS, SATA III, 2 COM, 2 UART, 8 USB,
2 LAN.
  • Intel® Meteor Lake -U/H & Arrow Lake -U/H Core™ Ultra series
    SoC on board
  • One 262-pin SO-DIMM up to 48GB DDR5 6400MT/s SDRAM
  • Multi-Display : 2 HDMI / LVDS / 2 USB-C (DP interface)
  • Two Intel® 2.5 Gigabit Ethernet ports
  • 1 M.2 B+M-key 3042 (WWAN w/ nano-SIM) / 2242 (SSD), 1 M.2 E-Key
    2230 (WiFi/BT), 1 M.2 M-key 2280 (NVMe) expansion slots
  • 1 SATA III, 2 USB 3.2 and 2 USB-C, 4 USB 2.0 ports
  • Supports 4K/2K Resolution Display
  • DC-IN 12V ~ 36V
PRINT
INQUIRY COMPARE

Main Features

  • Quad Display

  • Multi Tasking

  • M.2

INTRODUCTION SPECIFICATION Download
The AECX-MTL0 is a high-performance 3.5-inch Single Board Computer (SBC) powered by the latest Intel® Core™ Ultra 7 / Ultra 5 SoC (Meteor Lake -U/H & Arrow Lake -U/H). It is purpose-built for demanding embedded applications such as smart transportation, industrial automation, digital healthcare, and edge computing.

The platform supports multi-display output (2 HDMI + LVDS + 2 USB-C with DP) and integrates a wide range of high-speed I/O, including dual 2.5GbE Ethernet, M.2 expansion slots, SATA III, and USB 3.2 / 2.0, delivering high performance, low latency, and robust connectivity.

With its wide-range DC 12V ~ 36V power input design, the AECX-MTL0 adapts seamlessly to various industrial power environments, ensuring stable operation and making it the ideal solution for next-generation edge AI and embedded applications.
