Transportation Panel PCs

ITRP-1562-WHL0-ZP00

15.6” EN50155 Touch Panel PC with Intel® 8th Gen Core™ Processor
  • Intel® 8th Gen Core™ Processor onboard

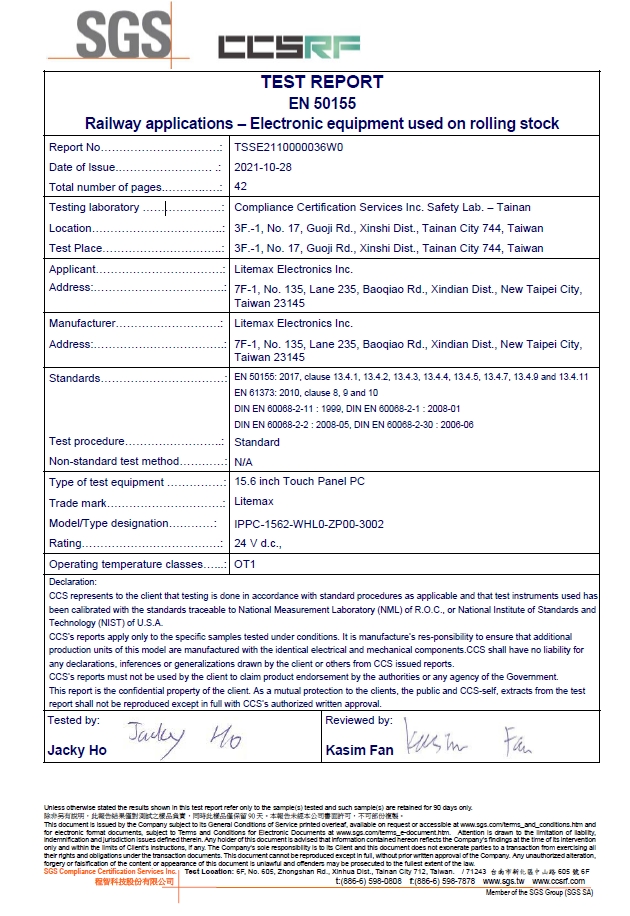

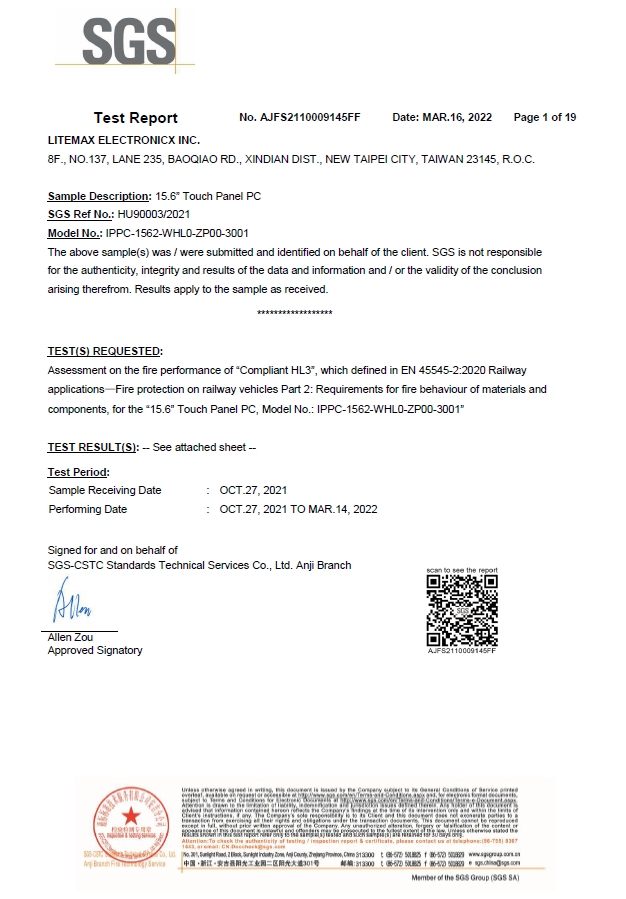

  • EN50155 / EN45545
  • 15.6" LCD, 1920 x 1080, 450 nits
  • P-CAP 10 points touch screen
  • 5USB , 1COM ,1 LAN , 1DIO
  • DC 16.8~31.2V Input
PRINT
INQUIRY COMPARE

Main Features

  • Transportation

  • Touch Screen

  • EN50155

INTRODUCTION SPECIFICATION
Litemax’s IPPS-1562 is a railway 15.6” touch Panel PC with EN 50155 certified offers a flexible platform enabling developers to optimize train operation and user experiences for railway transportation, such as train functionality operational displays for drivers, passenger information displays, and onboard computers.

IPPS-1562’s high-performance internal components with a 15.6 (16:9) TFT LCD P-CAP 10 points touchscreen provides 1920 x 1080 resolution, a contrast ratio of 800:1, and a 450 cd/m² luminance rating. Keeping all I/O connections and power input firmly secure at all times is essential to any system installed on a jolting train. The IPPS-1562’s IP65-rated M12-type I/O connectors are designed to protect its serial, USB, Gigabit LAN, and RS232 input connections against strong shock and vibration. Its range of nominal input voltage—16.8VDC~31.2VDC—ensures EN 50155 certified.
Model Name ITRP-1562-WHL0-ZP00
LCD
Display Type 15.6" FHD TFT LCD
Resolution 1920 x 1080
Brightness 450 nits
Color 16.7M
Pixel Pitch (H/V) 0.17925mm x 0.17925mm
Constrast Ratio 800:1
Viewing Angle (H/V) 170°(H),170°(V)
Touch Screen Type P-CAP 10 points touch screen
Size 15.6"
System
Chipset Intel® Whiskey Lake-U Processor integrated
Memory 2 x 260-pin DDR4 2400MHz SDRAM;max. up to 32GB
Graphic Intel® Gen 9.5 UHD 620 Graphics integrated
Indicators N/A
Controls N/A
Expansion Slot 1 x Mini-PCIe (Full size)
1 x M.2 B-key 3042 (WWAN w/ uSIM)
Processor Intel® 8th Gen Core™ i7/i5/i3/Celeron® processors
Intel® Core™ i7-8665UE 1.7GHz QC (25W)
Intel® Core™ i5-8365UE 1.6GHz QC (25W)
Intel®Core™ i3-8145UE 2.2GHz DC (25W)
Intel® Celeron® 4305UE 2.0GHz DC (15W)
I/O 3 x USB 2.0, 1 x LAN, 1 x RS232 Connector Type: M12, 2 x USB 2.0
System I/O
LAN 1 x M12 Gigabit Ethernet (1 x Intel® I211)
Storage Support
mSATA 1 x mSATA
Power
Power Supply 16.8~31.2 Vdc input
Environment
Operating Temperature 0°C ~ 50°C
Storage Temperature -40°C ~ 80°C
Relative humidity 0% ~ 90% (non-condensing)
IP level N/A
Vibration,Shock EN50155
Mechanical
Weight 4.3 kg
Dimensions 387 mm(W) x 67.02 mm(D) x 231 mm(H)
