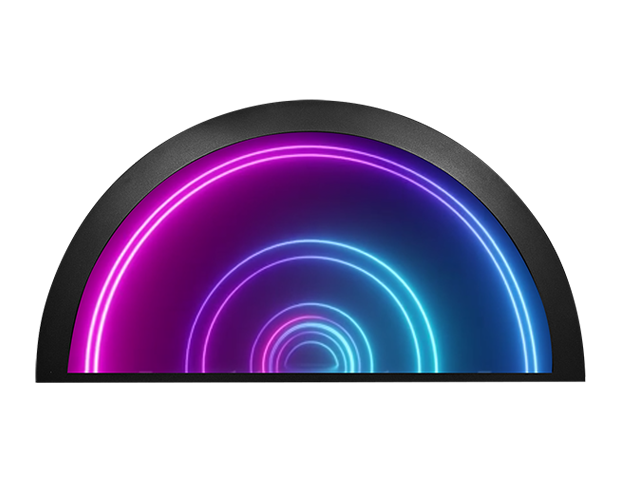

Circle Display

SCD2365-Y

23.6” TFT LCD, LED Backlight 1000nits, 1920x1920, Circle Display
  • 23.6" Circle Display
  • High Brightness 1000nits
  • Sunlight Readable
  • Aspect ratio 1:1
  • LED Backlight
  • Programmable Pattern RGB Circle Lighting
  • Low Power ConsumptionBL MTBF: 100,000 hours
Model Name SCD2365-Y
Description 23.6” TFT LCD, 1000nits LED Backlight, 1920x1920, Circle Display
size 23.6”
Display area (mm) 596.16(H) x 596.16(V)
Brightness 1000 cd/m²
Resolution 1920x1920
Aspect ratio 1:1
Contrast ratio 600:1
Pixel pitch (mm) 0.3105(H) x 0.3105(V)
Pixel per inch (PPI) 82
Viewing angle 178°(H),178°(V)
Color saturation (NTSC) 77%
Display colors 16.7M
Response time (Typical) 8ms
Video interface DVI-D, HDMI, DP
Input power AC100~240V
Power consumption 61W
Dimensions (mm) 890 x 890 x 77.2
Weight (Net) 24 kg
Mounting VESA 400x200, 400x400
OSD key 5 keys (Power Switch, Menu, +, -, Exit)
OSD control Brightness, color, contrast, H/V position… etc
Operating temperature 0 ˚C ~ 50 ˚C
Storage temperature -20°C ~ +60°C
