Home / Product / Industrial Display / Durapixel™ - Sunlight Readable LCDs / 1900-T

Digital Signage Display

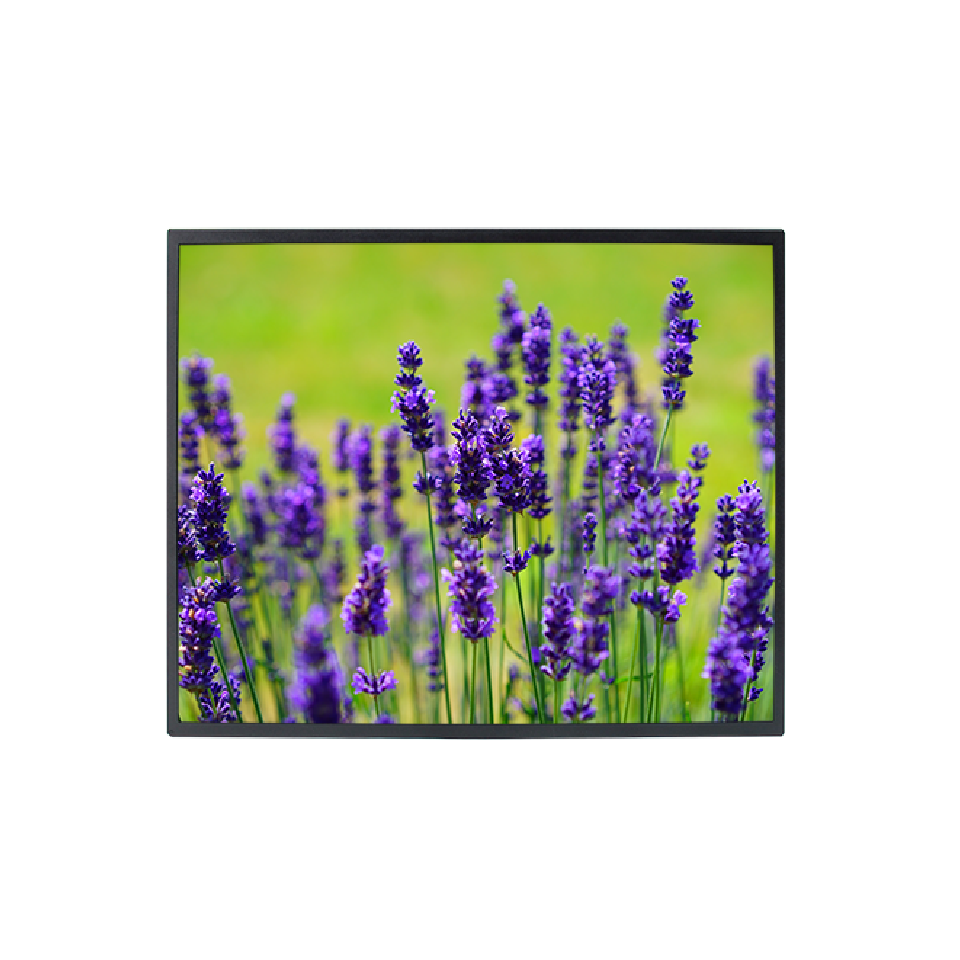

1900-T

19" TFT LCD, 2000 nits LED backlight, 1280x1024
  • High brightness 2000 nits
  • Sunlight readable
  • Resolutions: 1280 x 1024
  • Wide Viewing Angle of 176°(H), 176°(V)
  • LED Backlight
  • Wide temperature (-20˚C ~ 70˚C)
  • Low power consumption
  • BL MTBF: 100,000 hours
PRINT
INQUIRY COMPARE

Main Features

  • Wide Temp

  • Sunlight Readable

  • Low Power Consumption

INTRODUCTION SPECIFICATION Download
The 1900-T is a 19 inch industrial grade sunlight readable LCD, with high brightness 2000 nits, it produces sharp images, crisp text and lifelike colors. The Durapixel LED backlight technology ensures high reliability and low power consumption, suitable for outdoor application, kiosk, factory automation, military, transportation and gaming application.
Model Name DLF1900-T DLH1900-T DLD1900-T
Description 19” TFT LCD, LED Backlight 2000 nits, 1280x1024
Size 19"
Display area (mm) 376.32(H) x 301.056(V)
Brightness 2000 cd/m²
Resolution 1280x1024
Aspect ratio 5:4
Contrast ratio 1400:1
Pixel pitch (mm) 0.294(H) x 0.294(V)
Pixel per inch (PPI) 86
Viewing angle 176°(H),176°(V)
Color saturation (NTSC) 83%
Display colors 16.7M
Response time (Typical) 25ms
Panel interface LVDS
Video Interface HDMI, DP
Input power DC12V
Power consumption 37W 40W
Dimensions (mm) 396.0(W) x 324.1(H) x 25.85(D) 396(W) x 326.01(H) x 36(D)
Bezel size (U/B/L/R) 11.572/11.472/9.84/9.84mm 12.48/12.48/9.84/9.84mm
Weight (Net) 1.3kg 2.5kg
Mounting   75x75,100x100mm
OSD key 4 Keys (Power Switch, Menu, +, -)
OSD control Brightness, Color, Contrast, Auto Turing, H/V Position…etc
Operating temperature -20˚C ~ 70˚C
Storage temperature -30°C ~ 80°C
